Product Details
Place of Origin: | Guangdong, China | Brand Name: | Xinje | Model Number: | OP320 |
Type: | STN |
Product Description
3.7 inch 192*64 STN OP320 xinje advanced text hmi human machine interface
Configuration software: (free English versions)
OP Hardware version | Suitable for software version |
V3.6 | OP20 V3.6 |
V4.0-V7.0(NOT IN 7.0) | OP20 V6.5z |
V7.0-V8.0 | OP20 V8.0n |
Only one programming cable is available, if you need communication cable, please inform us of your PLC model, We will provide the best service and quote the best price to you.
OP320 Text Panel can communicate with some PLC, such as
XC-COM-BD, Mitsubishi FX1N/2N/1S, Omron C Series CPU, CP1W-CIF11 RS422, KOYO S, Delta DVP RS232, LG Master-K, Panasonic FP, FATEK FB, VIGOR VB, Emerson EC20, Idec PLC Micro3C, Keyence KV, SAIA-Burgess PCD.
Product description:
3.7 inches screen,
7 keys can be defined as function keys
Supporting ample PLCs
With password protection feature, Built-in Clock (parts are optional)
Dynamically display text
Keys can be defined as function keys, and also be replaceable as machine keys of the control board.
Backlight STN LCD display
General Specifications:
Display | color | Yellow-Green STN |
Service life | Over 20,000 hours, 25 degree centigrade of environment temperature, 24 hours operating | |
Resolution | 192*64 | |
Brightness | regulation resistance tunable | |
Word enactment | Chinese simplified/complex, English(24charaters * 4 lines, meaning 12 Chinese words * 4 lines) | |
Character size | Raster font and Vector font | |
Keys | 7 | |
Storage | display | 64KB FALSHROM |
Data | 1KB SRAM | |
Ports | Download port | RS232 |
Communication port | OP320:RS232/RS422 (OP320-S:RS232/RS485) |

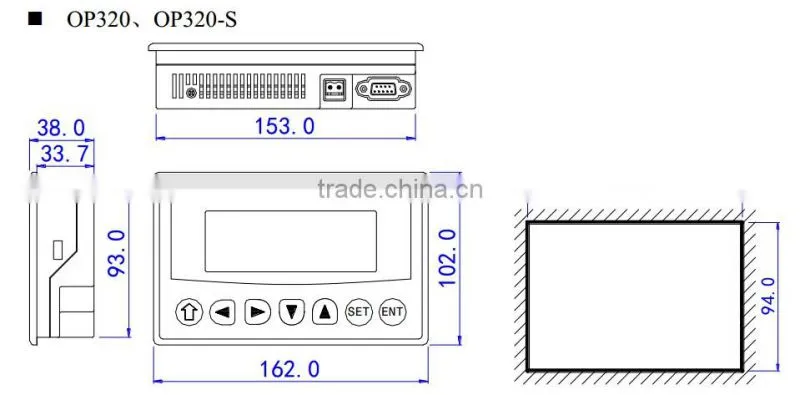

External Size(mm)
Product photos:
Delivery details:
1. Item will be shipped out within 1-5 working days by DHL, FedEx, UPS, EMS ASAP. We will choose the best and suitable shipping company. Usually it takes 3-7 working days to most of the country. You will be notified the tracking number once shipped out.
2. International buyers are responsible for any and all customs, duties taxes and brokerage fees to be paid to the courier or government. Please contact your local customs office with further inquiries in this issue. We will not be responsible for with respect to any tariffs, duties, or any and all other charges requested or required by destination countries.
Terms of sales:
1. We accept 14 days return policy. If you want to return the item, please contact us in 14 days first and make sure the package is un-opened. The buyer has to pay for the go and back delivery cost and the custom fee of each country. Once we received the product and checked, we will make refund for the part in 24 hours.
2. We make sure the item is brand new with original package and offer 1 year warranty for the quality.
3. Any quality problem in normal use during the warranty period, We offer free repair. The buyer should pay the return cost and our company will pay the re-shipping cost.
