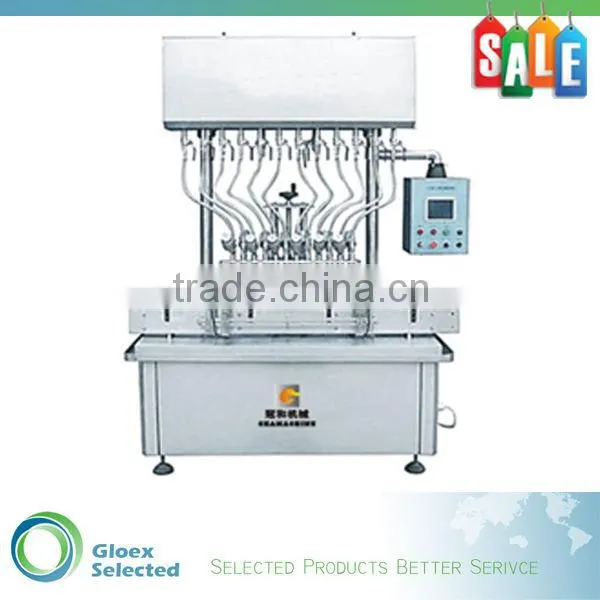

Help CenterAutomatic Milk Filling Machine for Production Line
Related Products
-
Automatic Juice Filling Machine for Production LineNegotiableMOQ: 1 Set -
Automatic Mineral Water Filling Machine for Production LineNegotiableMOQ: 1 Set
-
10 Years Life Cycle Tight Sealing Small Liquid Sachet Filling MachineNegotiableMOQ: 1 Set
-
Automatic Cream Filling MachineNegotiableMOQ: 1 Set
-
Long Life Cycle Tight Sealing Sachet Liquid Packaging MachineNegotiableMOQ: 1 Set
Specifications
- Suitable for Milk Filling- Anti-dropping design, Accurate filling
- PLC control
- Photo-electric sensing
- Reliable filling valve, avoiding drop leakage, accurate filling quantity.
- Program Logic Controller, easy for changing size or modifying parameters.
- Accurate liquid level control, fixed liquid passage parameter.
- Solely and specially –designed whole lifting device, easy governing to meet the needs of container changing.
- Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
- Assurance of key components’ quality by selecting of International reputable brands
No |
Issue |
Description of Material / Brand |
1 |
Products Touching Parts |
Made of Stainless Steel 304 as the standard configuration, 316,316L can be equipped subject to the client’s customization. |
2 |
Frame & Body |
Made of Stainless Steel 304 |
3 |
Man-Machine Interface |
Weinview, Siemens |
4 |
Stepper/Servo Motor |
Teco, Delta |
5 |
Programmable Logic Controller |
Delta, Siemens, AB |
6 |
Electric Components |
Schneider |
7 |
Protection & Relay |
Schneider |
8 |
Cylinder, Filter |
Airtac , SMC |
Issue |
Application Description |
Applicable Filling Materials |
Normal Liquids without or light viscous characteristic |
Particle Requirement |
Applicable for Liquid which not consist of small size particle content |
Typical Filling Material |
Liquids like: Water ,Milk, Alcohol, Medicine, Chemical etc. |
GZGH Catalogue |
GHAGF |
|||
Specific Type |
AGF-8 |
AGF-12 |
AGF-16 |
AGF-20 |
Control Method |
Automatic |
|||
Number of Filling Nozzles |
8 |
12 |
16 |
20 |
Ideal Range of Filling |
50-5000ml |
50-5000ml |
50-1000ml |
50-1000ml |
Filling Speed –BFM-100ml |
40-60 |
60-80 |
70-90 |
80-100 |
Filling Tolerance |
20-1000ml<= (+/-)2%,1000-5000ml<= (+/-)1% |
|||
Compress Air Required |
0.4-0.6Mpa |
|||
Power Requirement |
AC 220V 50/60HZ |
|||
Electricity Consumption |
0.5kw |
0.5kw |
0.75kw |
0.75kw |
Approximate Weight -Net |
500 kg |
600kg |
700kg |
800 kg |
Dimension ( ‘mm ) |
1800*800*2500 |
2000*800*2500 |
2200*800*2500 |
2400*1200*2500 |
With Shield |
No |
No |
No |
No |
With Hopper/Level Control |
Yes |
Yes |
Yes |
Yes |
With Pre-heating |
No |
No |
No |
No |
Following documents are available, but not limited, to be provided upon the stage of purchasing
No |
Document |
Code |
Description |
1 |
Products Selection Guide |
SG |
To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 |
Products Profile |
PP |
To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 |
Installation Instruction |
IN |
To explain the step of installation of the equipment, and include commissioning instruction as well |
4 |
User Manual |
UM |
To cover the content of Operation & Maintenance and Trouble Shooting |
CE Approval
Customization Philosophy
Our philosophy is to customize your real need, No idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
a) Filling Materials
b) Container to be filled, type and specification.
c) Capacity requirement
d) Automation requirement
e) Protection requirement
f) Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection support.
