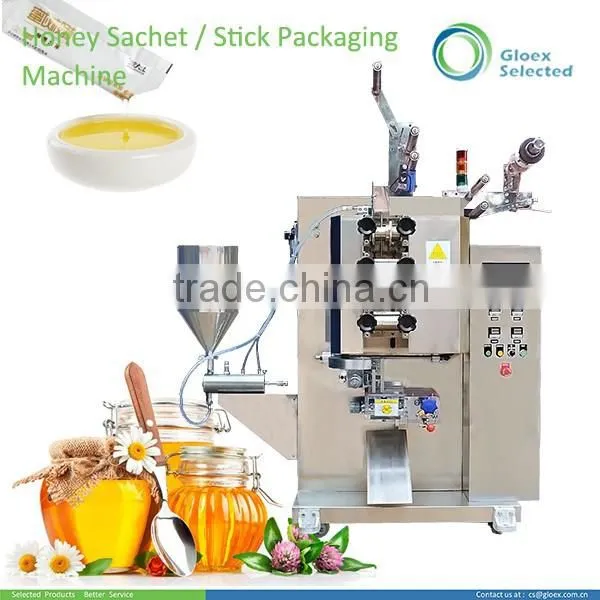

Honey Sachet Packing Machine

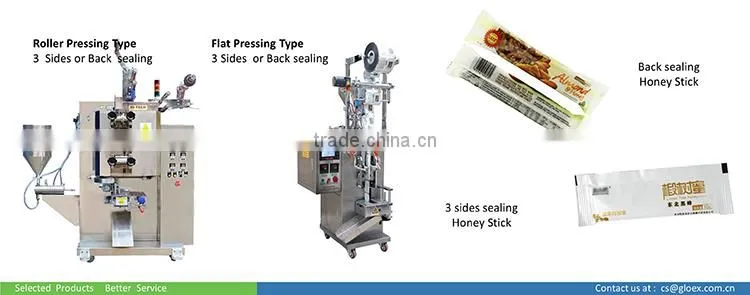

Roller Pressing Type

Flat Pressing Type

a)         Higher Price

b)         1/3 faster packaging speed

c)         Double sealing process, more Tightness of Sealing, No leakage

d)         Easy mechanical sachet / stick width adjustment design

e)         Adapt for 3 and 4 sides or back sealing

f)          High Availability

g)         10 years life cycle design

a)         Lower Price

b)         Suitable for business starting

c)         Simple design and simple maintenance

d)         Lower Power Consumption

e)         Stepping sachet / stick forming and sealing

f)          Alternative  of 3 or 4 or back sides sealing

No

Components

Material / Short List

1

Products Touching Parts

Stainless Steel 304 as the standard,

Stainless Steel 316,316L at the Buyer’s option

2

Frame

Carbon Steel or High Class Aluminum

3

Main Surface

Stainless Steel 304

4

Programmable Logic Controller

Delta, Siemens, Mitsubishi, Panosonic

5

Touch Screen

Weinview, Siemens,Delta,Kinco, Panosonic

6

Stepper/Servo Motor

Teco, Delta, Panosonic,Leadshine

7

Frequency Convertor

Delta, Schneider,Leadshine

8

Key Electric Components

Schneider,Chint, Ls, Ark

9

Key Protection & Relay

Schneider

10

Cylinder, Filter

Airtac , SMC

10

Photocell Sensor

Autonics , Keyence, Leuze, Panosonic, Datalogic

11

Vacuum Sucker

Airtac, Sunx

12

Temperature Controller

Omoron

More tightness of sealing

Add value of products

The roller pressing technology enable stable, high strength and longer time of sealing

More suitable for liquid filling, No leakage

2 sets of horizontal sealing rollers to reinforce the sealing effect, assure no leakage, no damage during market distribution

High Availability

The double driving motors and roller pressing design enhance the availability factor, achieve 7x24 hours operation

1/3 faster speed

The frequency conversion motor and roller design enable the packing process in non-stopping status other than stepping status

3 and 4 sides sealing integrated

If apply for other viscous liquid filling Able to implement 3 and 4 side sealing in one machine without changing of any components

High precision

Configure with Hibar style pump to enable more accurate filling

Code pressing function embedded

Code pressing function embedded on roller , it is not necessary to configure additional code printing devices

Anti-dropping

In order to make the products clean and fill in accurate , configure with special anti-dropping component which integrate in Hibar style filling pump

Catalogue/1M-xxxxx

Y319F-H

Sachet Size-Length ‘mm

50-210

Sachet Size-Width ‘mm

30-110/15-110 ^{Note 1}

Filling Volume

1-50 ml, and other filling volumes are available for customization

Packing Speed –Sticks/min

20-120

Power Requirement

AC 380V,50/60HZ

Power Consumption-KW

3.8

Approximate Weight -kg

500

Dimension ( ‘mm )

1400*1000*1800

Lower Price

Compare with roller pressing type, with lower price, suitable for business starting.

Simple Maintenance

One driving motor and one set of driving structure

Lower Power Consumption

Result from its simple design, lower power consumption

Anti-dropping

In order to maintain the clean packaging, Configure with separate sucking-back pump to enable no dropping other than only a blocking valve

Catalogue/1P-xxxxx

Y60E

Sachet Size-Length ‘mm

50-170

Sachet Size-Width ‘mm

1)         3 sides sealing,20-120

2)         Back sealing, 15-120

Filling Volume-ml

1.0-50 / 20-200 at buyer’s option

Packaging Speed - Sticks/min

30-60

Power Requirement

AC380V/220V, 50/60HZ

Power Consumption-KW

1.12

Approximate Weight -kg

170

Dimension ( ‘mm )

650*750*1588

Control Mode

1)     Microcomputer with LCD

2)     PLC with LED Screen and button setting up

3)     PLC with Touch Screen

Products Touching Parts

1)     Stainless Steel 304

2)     Stainless Steel 316

Frame / Surface

1)     Stainless Steel 304

2)     Painted Carbon Steel

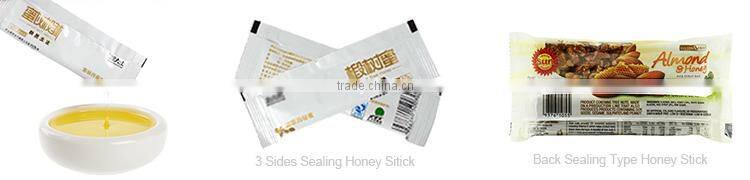

Type of Sachet

1)     3 sides sealing

2)     Back Sealing

Linking Sachet Cutting

Specific the number of sachets to be linked

Sealing Patterns

1)     Checkerboard Pattern

2)     Flat Line Pattern

Sachet Cut-off Shape

1)    Flat Cut-off

2)    Serration Cut-off

3)    Linking Sachet Cut-off

Tear Notch

4)    Utilize the serration shaped cutting as the tear notch

5)    Addition Tear Notch Punching Device

Code Printing

1)     Embedded Code Pressing

2)     Ribbon Code Printing

3)     Code Inkjet Printing

Power Voltage

380/220V, 50/60HZ
