Specifications

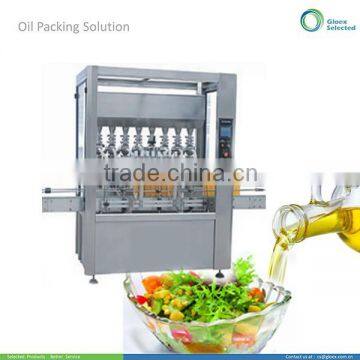

- Suitable for edible oil filling- Suitable for 1000-5000 ml filling
- Piston type , low price
- PLC /HMI Control

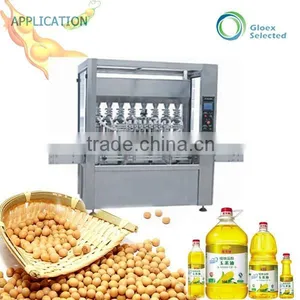

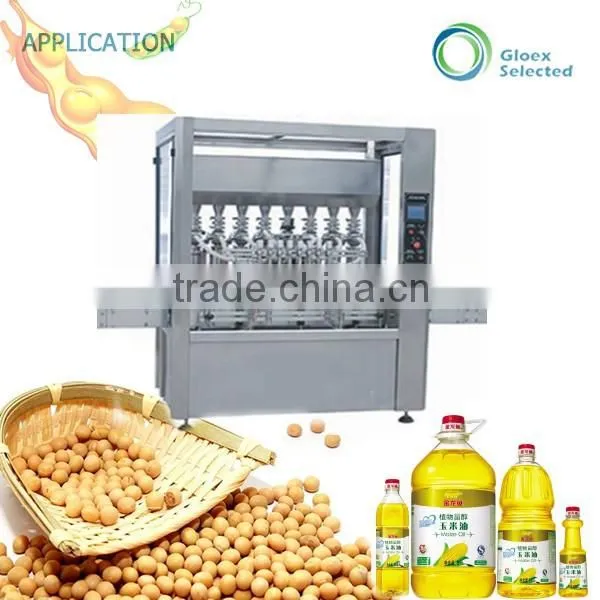

• Suitable for oil filling, like palm oil, olive oil, peanut oil, bean oil, corn oil etc.
• Equipped with PLC and HMI control, easy operation and trouble shooting.
• Anti-dropping design, avoid leakage during filling.
• Easy-adjusting design for filling volume adjustment separately or for all pumps. Large range of adjusting dosage.
• Configure with buffering tank and level sensing devices to enable the filling stability and accuracy.
• No bottle no filling protection.
• Assurance of key components’ quality by selecting of International reputable brands
Issue |
Application Description |
Applicable Filling Materials |
Suitable for oil filling, like palm oil, olive oil, peanut oil, bean oil, corn oil etc. |
Applicable Container |
Bottle , can or barrel etc. |
Best Filling Range |
1000ml – 5000ml |
Catalogue 1A-xxx-x |
ALF-5000 |
Control Method |
Automatic |
Number of Filling Nozzles |
4 **8,12 Nozzles available for customized** |
Container Moving Type |
Liner |
Ideal Range of Filling-ml |
1000-5000 **The other range subject to the client’s customization** |
Filling Speed –BPM /5000ml |
15 |
Filling Tolerance |
20-1000ml<= (+/-)1%,1000-5000<= (+/-)0.5% |
Compress Air Required |
4-6 bar |
Air Consumption |
15M3/Hour |
Power Requirement |
AC 220V 50/60HZ |
Electricity Consumption |
1.2kw |
Approximate Weight -Net |
1000kg |
With Hopper /level Control |
Yes |
With Pre-Heating |
No |
With Shield |
At buyer’s option |
Following documents are available, but not limited, to be provided upon the stage of purchasing
No |
Document |
Code |
Description |
1 |
Products Selection Guide |
SG |
To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 |
Products Profile |
PP |
To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 |
Installation Instruction |
IN |
To explain the step of installation of the equipment, and include commissioning instruction as well |
4 |
User Manual |
UM |
To cover the content of Operation & Maintenance and Trouble Shooting |

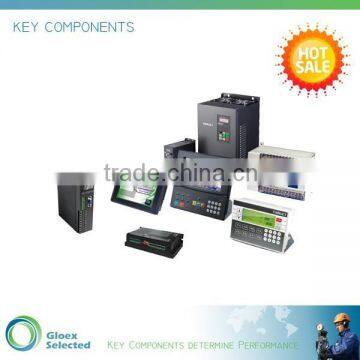

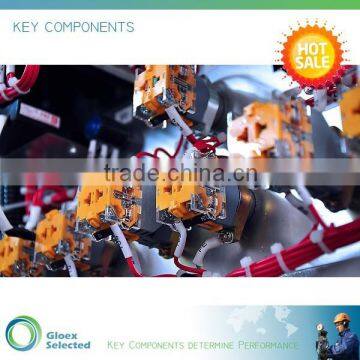

CE Approval
No |
Issue |
Description of Material / Brand |
1 |
Products Touching Parts |
Stainless Steel 304 as the standard configuration, 316,316L can be equipped subject to the client’s customization. |
2 |
Frame & Body |
Stainless Steel 304 |
3 |
Man-Machine Interface |
Weinview, Siemens |
4 |
Stepper/Servo Motor |
Teco, Delta |
5 |
Conveying Motor |
OTG Shanghai |
6 |
Programmable Logic Controller |
Delta, Siemens, AB |
7 |
Key Electric Components |
Schneider |
8 |
Protection & Relay |
Schneider |
9 |
Cylinder, Filter |
Airtac , SMC |
10 |
Key Sensor |
Autonics Korea |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
- Filling Materials
- Container to be filled, type and specification.
- Capacity requirement
- Automation requirement
- Protection requirement
- Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
