• This Edible Oil Pouch Packing Machine is suitable for heat sealable pre-made pouch packing and sealing.
• The typical material such as flat pouch , normal stand up pouch, or stand up pouch with zipper or spout etc
• Configure with different dosing devices, capable to pack with liquid, powder granule, or other irregular solidity materials.
• Pouch saving design, no completely opened pouch, no filling and sealing.
• Easy to change the type of pouches within 10 minutes.
• Intelligent temperature controlling configuration, ensure the artistic and neat sealing.
• Applying PLC servo and pneumatic control system. Enable the control precision, Reliability and the Automation level. .

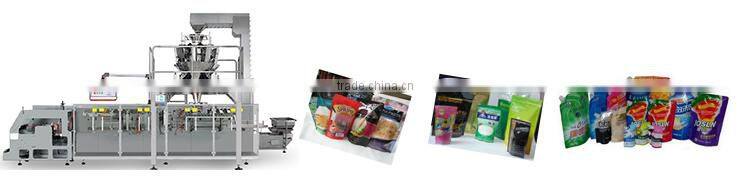

Following are the typical application of this Edible Oil Pouch Packing Machine
Issue |
Application Description |
Applications |
Applicable Pouches: Suitable for heat sealable pre-made pouch packing and sealing. Such as flat pouch , normal stand up pouch, or stand up pouch with zipper or spout pouch etc Applicable Materials: Configure with different dosing devices, capable to pack with liquid, powder granule, or other irregular solidity materials. |
Applicable Pre-made Pouch Material |
Pouches are made of Heat sealable packing materials such as OPP/PE,BOPP/OPP/PE,PET/AL/PE with 0.04mm—0.09mm thickness |
Catalogue/1k-xxxxx |
6-200 |
8-200 |
6-300 |
8-300 |
Process Stations |
6 |
8 |
6 |
8 |
Pouch Size-Length ‘mm |
100-300 |
100-300 |
100-400 |
100-400 |
Pouch Size-Width ‘mm |
70-200 |
70-200 |
160-270 |
160-300 |
Packing Speed –pouches/min |
20-55 |
20-55 |
10-40 |
10-40 |
Reference Filling Range-g/pouch |
5-1500 |
5-1500 |
5-2500 |
5-2500 |
Power Requirement |
AC380V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
Power Consumption-KW |
1.5 |
2.3 |
4.0 |
4.0 |
Compress Air Required-Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Compress Air Consumption-m3/min |
0.45 |
0.45 |
0.35 |
0.35 |
Approximate Weight -kg |
800 |
1000 |
1500 |
2000 |
Dimension ( ‘mm ) |
1475*1325*1480 |
1635*1455*1480 |
1585*1545*1600 |
1645*1645*1640 |

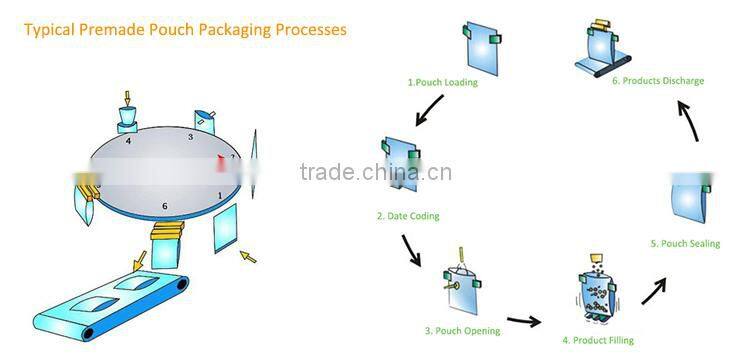

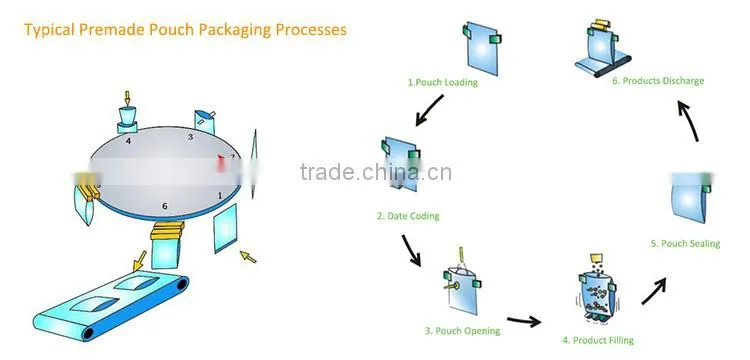

Following is the typical process of Edible Oil Pouch Packing Machine , to adpat different requirement , the process stations and its related components may need to be installed
We belive that the quality reply on the details, and key components determine the perfermance , therefore , we only select the international brands of key components
No |
Issue |
Description of Material / Brand |
1 |
Products Touching Parts |
Made of Stainless Steel 304 as the standard configuration, 316,316L can be equipped subject to the client’s customization. |
2 |
Frame & Body |
Made of Stainless Steel 304 or Carbon Steel at buyer’s option |
3 |
Man-Machine Interface |
Weinview, Siemens |
4 |
Stepper/Servo Motor |
Teco, Delta,Panasonic |
5 |
Programmable Logic Controller |
Mitsubishi, Delta,Panasonic,Siemens,Omron |
6 |
Key Electric Components |
Schneider,ARK |
7 |
Temperature Controller |
Omron |
8 |
Pneumatic Components |
Airtac , SMC |
9 |
Vacuum Components |
SMC, Orion |
10 |
Solenoid valve |
SMC, Asco |
Customization Philosophy
The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function.
Optional Features
No |
Feature |
Description |
1 |
Protection Shield |
Configure with a glass shield for safety consideration |
2 |
Product Settler |
In order to ensure the sealing condition, to slight compact the filled product before sealing |
3 |
Date Coder |
1) Ribbon Type 2) Embossing Type 3) Inkjet Type |
4 |
Air/Nitrogen/CO2 Charging |
To charge air or nitrogen after filling but before sealing |
5 |
Air exhausting |
To exhaust air after filling but before sealing |
6 |
Vacuuming Device |
Vacuuming after filling but before sealing |
7 |
Zipper opening device |
To open the zipper before filling |
8 |
Stand up pouch opening Device |
To open the bottom side of the stand-up pouch |
9 |
Special design seal-bar |
Seal-bar with customized pattern |
10 |
Dust Removing Device |
To clean the filled bag and ensure the product clean |
Related Products
If you need a machine which can do the stand up products dosing , stand up pouch forming , filling and sealing ,even with zipper or spout. please contact us to know more information
Contact us to know more......
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
