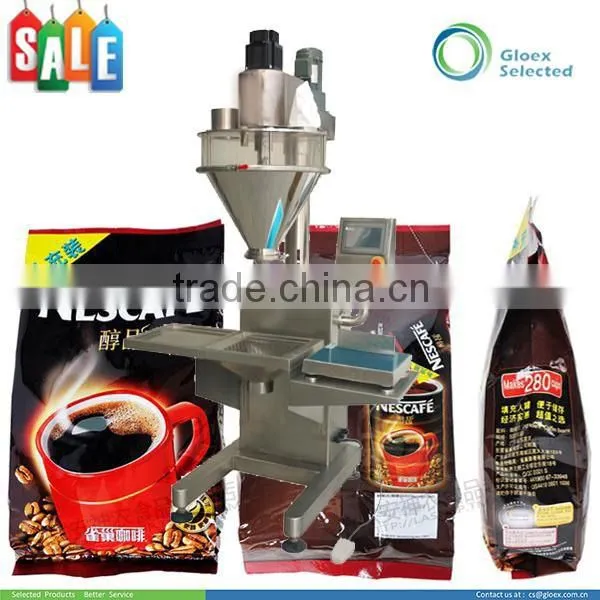

Semi-automatic easy operation parameter chillpowder packing machine with screw feeder
Dear Valuable Customer
Sincerely thanks for browsing our products, we are supplying this Small Canning Machine , It is suitable for powder or granule canning , and flexiable for filling containers , no matter filling in a bottle , can , jar or even in a pouch.
Different from others , we are focusing to provide you cost and performance balance products, with proven technology and projects . Following are parts of partners , some of them are leading player in the fields.
If you need other machines for granule or powder filling , .Cilck the following links for more detail information
Powder & Granule Packing Solutions- Developed by Gloex Selected
If you need to form a production line , following machines may meet your needs

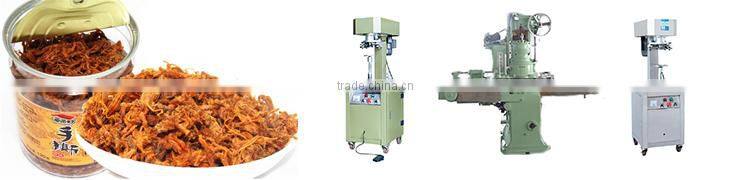

Semi-Automatic Can Seaming Machine-Developed by Gloex Selected
Automatic Can Seaming Machine-Developed by Gloex Selected
- What this machine can do ?
• Suitable for powder or granule dosing and filling. Such as sugar, salt, flour, starch, milk powder, coffee powder, dextrose, powder additive etc.
• Flexiable for filling containers , no matter filling in a bottle , can , jar or even in a pouch.
- What is the advantage of this machine?

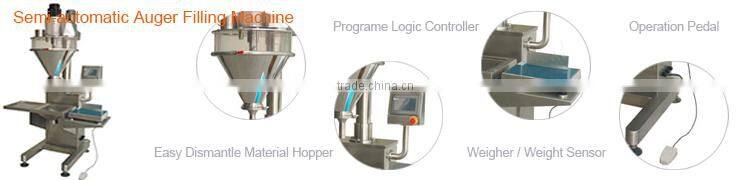

• Quick dis-connectable hopper could be washed easily without tools.
• By simply changing the auger parts, suitable for filling material from super fine powder to granule materials.
• Unique weight feedback and specific gravity tracking technology, able to ensure the filling accuracy which may result from the changes of specific gravity
- How to operate this machine ?
• Applying PLC servo motor to drive the auger. Enable the control precision, and reliability.
• Storing 10 sets of technical parameter for the different kinds of filling materials, no need to reset while filling materials changing.
• Touch screen enable easy operation parameter setting up and error indicating.
Issue | Application Description |
Applicable Materials to be Packed | Suitable for powder or granule dosing and filling. Such as sugar, salt, flour, starch, milk powder, coffee powder, dextrose, powder additive etc. |
Applicable Containers | Flexible for filling containers, like pre-made bag, can, barrel or bottles. |
In order to ensure the quality of this small canning machine, we believe that the key components determine the preformance, therefore , we only select internation reputable components with the short list as below
No | Components | Material / Short List |
1 | Products Touching Parts | Stainless Steel 304 as the standard, Stainless Steel 316,316L at the Buyer’s option |
2 | Structure / Support | Carbon Steel or High Class Aluminum |
3 | Main Surface | Stainless Steel 304 |
4 | Programmable Logic Controller | Delta, Siemens, Mitsubishi, Panosonic |
5 | Touch Screen | Weinview, Siemens,Delta,Kinco, Panosonic |
6 | Stepper/Servo Motor | Teco, Delta, Panosonic,Leadshine |
7 | Frequency Convertor | Delta,Schneider,Leadshine |
8 | Key Electric Components | Schneider,Chint, Ls, Ark |
9 | Key Protection & Relay | Schneider |
10 | Cylinder, Filter | Airtac , SMC |
11 | Photocell Sensor | Autonics , Keyence,Leuze, Panosonic,Datalogic |
12 | Vacuum Sucker | Airtac, Sunx |
13 | Temperature Controller | Omoron |
Catalogue/1D-xxxxx | 1A-321 | 1B-321 |
Filling Range ‘g | 1-500 | 10-5000 |
Filling Accuracy | 1) <=100g,<=±2%; 2) 100 - 500g,<=±1%; | 1) <=100g,<=±2%; 2) 100 - 500g,<=±1%; 3) >=500g,<=±0.5% |
Filling Speed -times/min | 40-120 | 40-120 |
Hopper Volume-Liter | 25-Standard 35-Extra Large | 50-Standard 70-Extra Large |
Power Requirement | AC208-415V 50/60Hz | AC208-415V 50/60Hz |
Power Consumption-KW | 0.93 | 1.4 |
Compress Air Required | NA | NA |
Compress Air Consumption-m3/min | NA | NA |
Approximate Weight -kg | 130 | 260 |
Dimension ( ‘mm ) | 800*790*1900 | 1140*970*2030 |
Following documents are available, but not limited, to be provided upon the stage of purchasing
No | Document | Code | Description |
1 | Products Selection Guide | SG | To select or customize the suitable products for the clients upon the feedback of Selection Guide, which include project background, parameters and other client’s requirement |
2 | Products Profile | PP | To enable the clients understand the overview of the products, Covers sections of Basic Features, Application, Construction, Typical Products, Approvals, and Optional Features |
3 | Installation Instruction | IN | To explain the step of installation of the equipment, and include commissioning instruction as well |
4 | User Manual | UM | To cover the content of Operation & Maintenance and Trouble Shooting |
Customization Philosophy
The above small canning machine demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:
- Filling Materials
- Container to be filled, type and specification.
- Capacity requirement
- Automation requirement
- Protection requirement
- Other specific requirement
Selection Guide
Selection Guides are available for circulation, contact us to get products selection and customization support.
Statement
- The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
- Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
- The features or functions appear in this profile subject to the additional description of quotation
