Specifications
XSCM 4WD ZL16 articulated mini wheel loadersEngine: YTO 4108 or Cummins 4BT3.9-C100
Bucekt capacity:1.0cbm
Dumping height:26

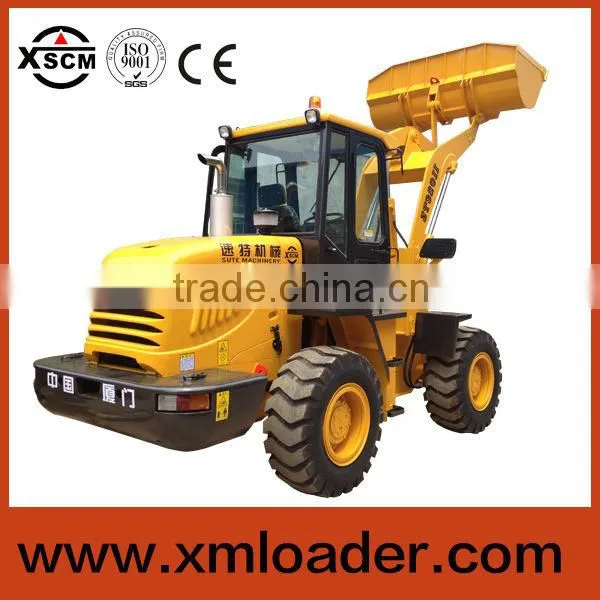

XSCM 4WD ZL16 articulated mini wheel loaders
1.Large wheelbase, reasonable assignment of axle load and stableness of driving & operating
2. High dump clearance, big breakout force, bucket with kick-out device and high effective operation
3. The pin with dustproof and the external grease fittings offer easy maintenance;
4. The independent style cab with noise-isolation & vibration absorber meets all kinds of operation;
5. Special buckets and air-conditioning system can be selected to meet different users’ requirements
MAIN SPECIFICATIONS
Operating weight kg 6000
Rated load kg 2000
Standard bucket capacity m3 1.0, 1.5m3 loose bucket or 0.9m3 rock bucket as optional
Max. breakout force KN 65
Dumping clearance mm 2750
Dumping reach mm 946
Raising time s 5
Total cycle time s 9.5
Engine specification
Model YTR4108 /Cummins 4BTA3.9-C100
Type In-line, 4ylinder, water cooling; direct injection diesel engine
Rated power KW 55/60
Rated speed rpm 2400/2000
Max. torque N.M 275
Rated fuel consumption rate g/kw.h ≤224
Traveling specification
Traveling speed
ForwardⅠ km/h 10
ForwardⅡ km/h 27
ReverseⅠ km/h 10
ReverseⅡ km/h 27
Turning radius mm 5000
Max. steering angle ° 35
Overall dimension
Overal length(with bucket on ground) mm 5900
Overall width mm 2000
Overall height mm 2850
Min. ground clearance mm 300
Wheel base mm 2100
Tread mm 1400
Tire specification Size 16/70-20
