(full automatic,full enclosed dry clean) laundromat machine

Specifications

1.Control PEC in a safe range
2.Good heat efficiency, sealing system
3.ISO9001,BV
4.Adopt refrigeration recovery system



Full-enclosed Dry Cleaning Machine

( 8kg,10kg 12kg,13.6kg,18kg,steam and electric heating)



1.Environment protection:The most important contribution of our fully enclosed dry cleaning machine is reduce PEC residues and emissions .Control PEC in a safe range to make full use of the superiority of PEC. low extraction efficiency ,no burning,high cleaning ,thorough decontamination ,no damage to clothing,not fading ,no shrinking , no wrinkling ,insect-resistant.No pollution to the air, no harm to human, keep the room fresh.

2.Apply to:hotels,restaurants,hospitals,washing &dyeing industry,garment factories and individuals.For ctton,wool,woolen,chemical fiber,feather and so on.

3.Recovery efficiency:First,Adopt imported refrigeration recovery system , equipped with water cooling cycle and refrigeration cycle to recycle solvent.Second: Stainless steel pipes ensure the washing prosess completely closed.third:body balance device to reduce wind resistance,no deadends.Greatly improve the recovery efficiency.

4.High cleaning :use a green nylon filters and an activated carbon filter,multiple to maintain the cleanliness of solvent.no need to add diatomite.

5.Energy:Reduce the frequency of distillation,reduce energy comsuption. Recovery well,low PEC consumption.

6.Accrate:Full computer operating systems.preset 10 sets procedures but  can also self-programming .to precisely comtrol the throughout process ( washing,drying,restoring lotion,fiber recovery ),more targeted,more effective.

7.Convenient:Human-Machine interface makes the washing process simple and clear.easy to operate.

8.Safety:Full computer auto- monitor system,can instruct fault timely, make clear diagnosis ,simplify maintence procedures.Meanwahile ,interlock and overload protection device to protect stability and safety.



Machine Parameter



Model	P318	P320	P420	P325	P425	P430	P440
Rated Washing Capacity(kg)	8	10	10	12	12	13.6	18
Clothing Door Diameter(mm)	405	405	405	405	405	500	500
Drum Diameter(mm)	730	730	730	730	730	900	960
Drum Depth(mm)	360	440	440	520	520	410	470
Washing Speed(r/min)	35	35	35	40	40	32	32
Liquid discharge rate(rmp)	428	428	428	450	450	450	450
Washing Time(min)	10-20	10-20	10-20	10-20	10-20	10-20	10-20
Drying Time(min)	30-60	30-60	30-60	30-60	30-60	30-60	30-60
Solvent Refrigeration	no	no	have	no	have	have	have
Active Carbon adsorber	no	no	have	no	have	have	have
Noise (dB)	70	70	70	70	70	70	70
Voltage(V)	220V/380V	220V/380V	220V/380V	380V	380V	380V	380V
Motor Power(kw)	1.5	1.5	1.5	2.2	3	3	4
Fan Power(kw)	0.55	0.55	0.55	0.75	0.75	0.9/0.5	1.5/1.1
Liquid Pump Power(kw)	0.55	0.55	0.55	0.75	0.75	0.75	0.75
Filter Motor Power(kw)	0.55	0.55	0.55	0.55	0.55	0.55	1.75
Steam Pressure	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.75	0.3-0.6
Distillation Tank Volume(inch)	110	120	120	130	130	138	170
Colling Water Interface (inch)	1/2	1/2	1/2	1/2	1/2	1/2	1/2
Dimension(L) (mm)	1560	1740	1740	1750	1750	1750	2160
Dimension(W) (mm)	1250	1330	1330	1350	1350	1450	1530
Dimension(H) (mm)	1930	2030	2030	1850	1850	2100	2040
Total Wight(kg)	1000	1200	1200	1350	1350	1570	2240

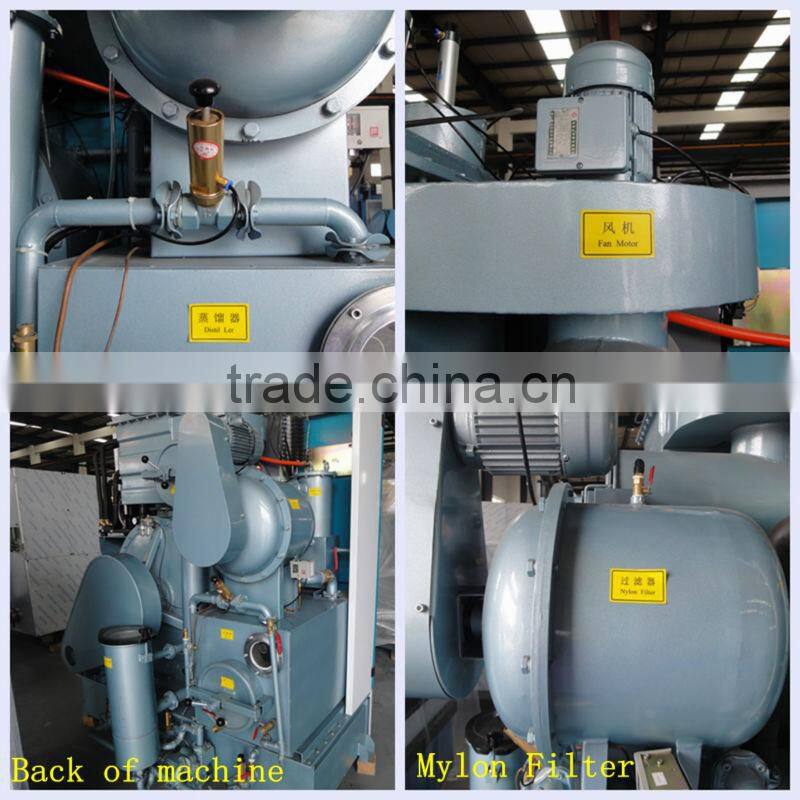

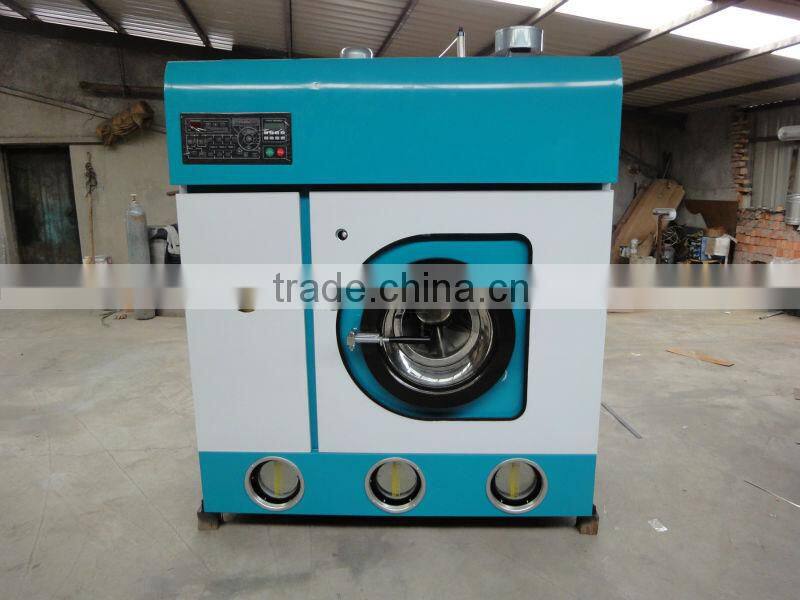

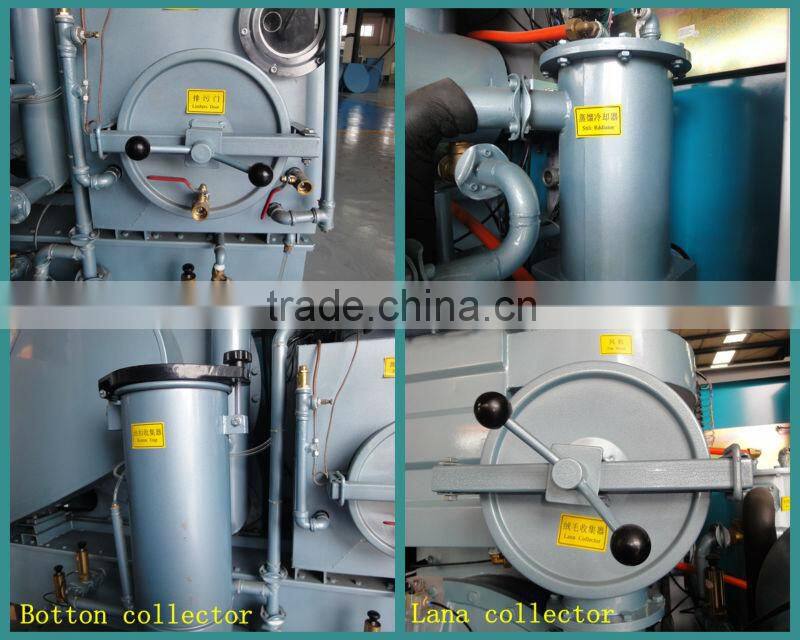

Products Image:
