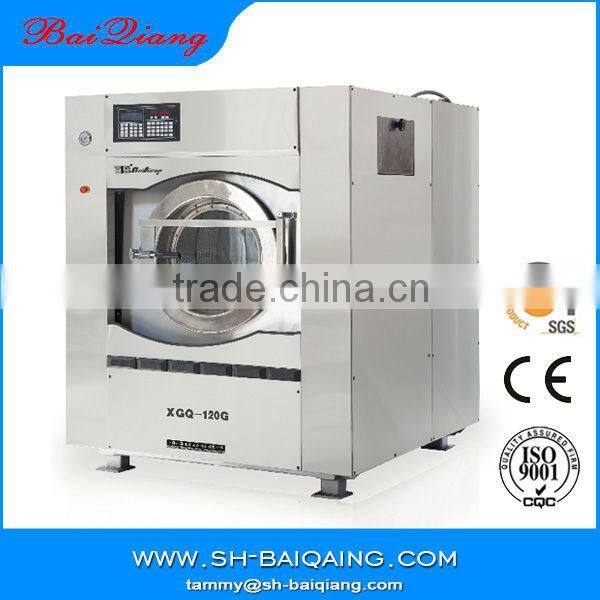

Laundry Equipment Commercial Washer Machine
Laundry equipment commercial washer machine
Products Image for washer machine
Laundry equipment commercial high quality industrial washing machine for school (15kg-150kg )Use for:Washing and dewatering clothes ,bedsheet, quilt, tablecloth, towel, wool ,curtain, bath towel , chemical fiber etc.
Advantages of washer machine
1.Background for industrial washing machine for school:With more than 10 years washing machine developing and manufacturing experience ,our company have successfully develop a new generation machine---high washing extractor.
2.High-dewatering :350G high-dewatering, After dewatering,the rate of water lower than 55%.reduce drying & ironing energy consumption.If use groove type drying machine, the first drying process can be withdrawed.Thus reduce labor intensity and drying time.
3.Low Shake: Adopt patent technique(our patent No.is 201210308696.5) ,even the linen to reduce deviate rate and shake.
4. High Stability for industrial washing machine for school:
a:Adopt advanced technology to design the structure,firm and steady . Stainless welding for machine body and base. Strong anti-corrosion Epoxy Resin varnish for inside and outside structure.
b:The inner drum is 3mm mirror stainless steel ,improve the intensity.
c:The important spare parts and pneumatic components use the international top brand.guarantee the stability. Imported LG inverter system, imported TIMKEN bearing
d:304 stainless steel for outside drum, reduce the iron ion harm to the washing quality.anti-corrosion and long-life.
5. Energy Conservation and Environment Protection:
a:Small water tank,the gap between the inside drum and outside drum is uce the volume,thus save the material and water consumption.
b:After over shaking protection,can execute the dewatering procedure without adding water.thereby reduce the the operation time.
c;If you choose the latest recovery device,(the patent No.is201020192989.8),to recycle water,will reduce 66% water consumption.
6.Perfect Human-Machine Interface ,easy to operate.
a: Big English liquid crystal disply makes washing process visible and willfully option ,the user can observe the inner drum centrifugal factor.
b:Alter the washing speed to change the machine force ,reduce the damage to the linen.
c:Adjust the water level,accoding to the different linen requirement.
d: Full-automatic computer system is simple ,easy,open.
7 .Two Heating Way:Steam heating and Electric heating.
8.Drain:the soft drain-pipe may extend directly to the trench to keep indoor clean.
9.Fed box: Use hot water to flush the washing material , so alkali powder easy to dissolve .no scaling .
10.Safe System:Safety control dehydration function,auto-stop and auto-alarm when the unbalance force is too big.
11.Water Temperature Control: High/Low water level auto-control syatem.the entire computer programmed control and 4 kind of water level manual bottom .
12.Door Protection:Security door lock and linkage .Refuse to open the door when the machine is working.
Machine Parameter for industrial washing machine for school
| Model | XGQ-100GJ | XGQ-100G |
| Washing Capacity(kg) | 100KG | 100KG |
| Inner Drum Dimension(mm) | Φ1200mm*880mm | Φ1200mm*880mm |
| Out Drum Dimension(mm) | Φ1268mm*953mm | Φ1268mm*953mm |
| Revolution Speed (washing/dewatering) | 27rpm*725rpm | 27rpm*725rpm |
| Motor Power(kw) | 11kw | 11kw |
| Converter Power | 15kw | 15kw |
| Water Pump Power | 1.5kw | |
| Steam Consumption Rate(kg/kg) | 0.9kg/kg | 0.9kg/kg |
| Water Pipe Diameter(mm) | G1.5" | G1.5" |
| Steam Pipe Diameter(mm) | G1" | G1" |
| Recycle Water Tank | 650L*3 | |
| Dimension(L*W*H mm) | 1640*1956*2650mm | 1640*1956*2000mm |
| Total Weight(kg) | 3500kg | 3163kg |
| Model | XGQ-15F | XGQ-20F | XGQ-30F | XGQ-50F | XGQ-70F | XGQ-100F |
Washing Capacity(kg) | 15 | 20 | 30 | 50 | 70 | 100 |
Drum Dimension (mm) | 720*380 | 720*480 | 900*500 | 1070*580 | 1200*626 | 1200*820 |
| Rotarying Speed(rpm) | 51 | 48 | 36 | 36 | 34 | 32 |
| Dewatering Speed(rpm) | 800 | 820 | 720 | 700 | 670 | 670 |
| Motor Power(kw) | 2.2 | 2.2 | 4 | 5.5 | 7.5 | 7.5 |
| Steam Pipe Diameter(mm) | 15 | 20 | 20 | 25 | 25 | 25 |
| Water Pipe Diameter(mm) | 15 | 20 | 25 | 40 | 40 | 40 |
| Drain Diameter(mm) | Φ40 | Φ40 | Φ140 | Φ140 | Φ140 | Φ140 |
Water Consumption(kg) | 243 | 243 | 473 | 758 | 924 | 1181 |
| Steam Consumption Rate(kg/kg) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Water Pressure(Mpa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 |
| Steam Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Noise(dB) | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 | ≤70 |
| Dimension(L*W*H mm) | 1120*1000* 1600 | 1120*1100* 1600 | 1400*1380* 1760 | 1600*1500* 1920 | 1770*1660* 2300 | 1770*1860* 2300 |
| Total Weight(kg) | 700 | 760 | 1800 | 2500 | 2700 | 3200 |
More Product
Company Image

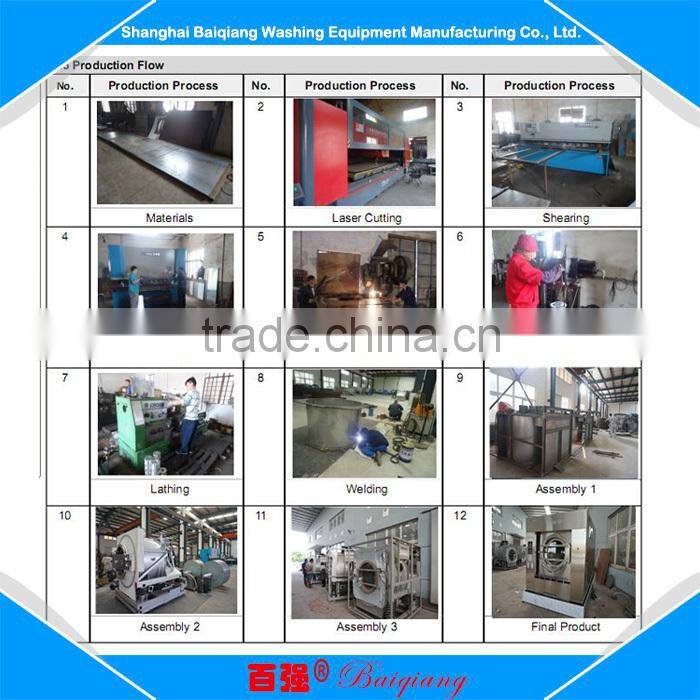

Production Flow for hotel use ce approved laundry equipment
