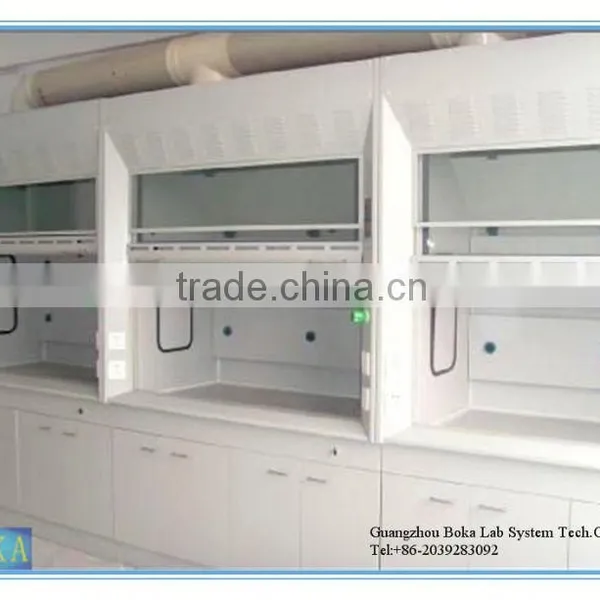

laboratory ventilation hood and cabinet

Bubble film+carton+strong wooden case for fume hood

Specifications

laboratory ventilation hood and cabinet description
1.Chemical resistant
2.High quality and durable
3.safety and flexible
4.



Fume cupboard are widely used in the laobratoryenvironment.A fume hood is an engineered control device to protect the user from hazardous effects of substances

Laboratory fume hood details

Product Name	Laboratory fume hood
Dimension	1200/1500/1800*800*2350mm
Color	Customer optional
Frame structure	standard 60 ×40 ×1.5mm square steel tube spraying epoxy  powder coating. other request by customer is available.
Cabinet body	using 1.0mm minimum thickness of cold-rolled steel ,coated with special chemical resistant epoxy sandblast powder coat for improved corrosion resistance.
Worktop	epoxy resin/phenolic resin/stainless steel/granite/marble for your option .
Inner Liner	constructed from compact laminate .it is a high temperature and high pressure decorative plates,waterproof,resistant to moisture,resistant to impact,abrasion,acidcorrosion,heatresistance,it can prevent the accumulation of contaminants and keep gas,mist flow discharge.
Baffle	made of compact ntrol the direction of air flow ,reduce reflux or whirlpool.
Sash	the sash slides smoothly in a vertical manner.It is made of at least 6mm thick clear tempered glass to protect the user while providing excellent visibility.
Lighting	with no less than 300 Lux 30W fluorescent lamp
Control Panel	used to control the start and stop of the fume hood,LCDdisplay,can be manually controlled to fan,light and volume.
Accessory	water faucet and sink,gas valve,electric socket and others is available.

Laboratory fume hood Tecinical data:

 1) Operation cabinet door opening height :0-800 mm

2) Face wind speed :0.4-0 .6 m / s.
3) Noise: <60db
4) exhaust volume :1080-1700m3 / h
5) Working voltage: AC220V-380V
6) Motor power :0.09-4kw

Laboratory fume hood ventilation system

Lab supply air is engineered to meet designed air changes per hour.Good sash management is critical to a balanced and efficient lab system.Lab exhaust air is filtered by a carbon HEPA filter module to remove 99.99% of fumes and contaminates.Exhaust is next processed by the tubular centrifugal fan and safely propelled away from the building.

•   All steel floor mounted lab furniture
• All steel C-frame lab furniture
• All steel H-frame lab furniture
• All steel Flexible lab furniture
• Steel frame and wood lab furniture
• All wood lab furniture
• Lab medical furniture
• Stainless steel lab furniture
• Laboratory accessories
• Lab equipment
• Lab fume hood
• Lab clean bench
• Lab safety storage cabinet
• Air shower
• Pass box
• Emergency Eye washer and shower
• Laminar flow cabinet
• Bio safety cabinet
• Lab engineering system: lab overall design&planing,lab renovation,lab ventilation&control system,lab clean zone system,lab purification&environmental system,lab purity gas&water piping system,lab sterilized&GMP system.lab analysis&testing instrument.lab medical diagnostic devices.
