Help Center138kV Rigid Dry Type Outdoor Termination
Related Products
-
110kV Rigid Dry Type Outdoor TerminationUS$ 2,400 - 2,600MOQ: 10 Sets -
77kV Rigid Dry Type Outdoor TerminationUS$ 2,400 - 2,600MOQ: 10 Sets
-
66kV Rigid Dry Type Outdoor TerminationUS$ 2,400 - 2,600MOQ: 10 Sets
-
138kV Soft Dry Type Outdoor TerminationUS$ 2,200 - 2,600MOQ: 10 Sets
-
110kV Soft Dry Type Outdoor TerminationUS$ 2,200 - 2,600MOQ: 10 Sets
Product Introduction

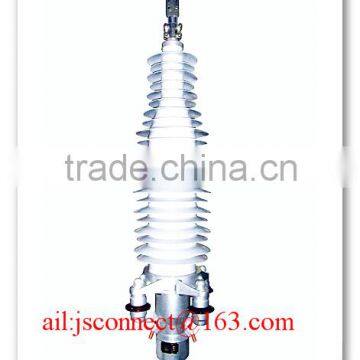

rigid dry pluggable outdoor termination with our code CN-YJZWGG4 is widely used for outdoor high-voltage overhead lines and cable connections with pollution resistance of grade IV. They are composed of connector lug, stress cone, rigid bushing and wiping sleeve.
The stress cone adopts imported liquid silicone rubber injecting forming, using spring cone proposition installing structure which has long-term stability of lasting hold force and electric field uniform ability. Epoxy glass fiber insulating bushing for rigid bushing use is covered by silicon skirts, forming a cone shape outside the bushing, with good performance of pollution resistant, climate resistance, anti-leakage marks, anti-erosion and water repellent ability. There is no need to fill SF6 gas or insulating oil, which makes it more secure and reliable. This product is compact with light weight and small size. It not only has light and anti-explode property of the silicone dry terminal, but also has the rigid supporting functions of porcelain bushing, and the installation convenience property of GIS termination, which effectively ensures the long-term safety operation of the product. Our product is using multiple sealing structures which can effectively prevent the leakage of water immersion and insulating oil. All of the seals are using imported NBR or silicon rubber material. All of the fastener raw-material is stainless steel with good waterproof seal performance.
This outdoor terminal is the only one with all the advantages of explosion-proof, rigid, dry, oil and gas free, it is the first choice of the majority of electricity users.
The cross sectional areas range of cables with supporting accessories of various voltages is as following:
48/66kV~56/77kV 150~1400mm²;
64/110kV~76/138kV 240~1600mm²;
127/220kV~290/500kV 400~3000mm²;
Product Characteristics:
Rigid dry pluggable outdoor termination not only has all the advantages of composite bushing termination, but also has the following superior performances:
Oil-free: using dry structure, oil and gas-free.
Easy installation: because bushing has the high-voltage shielding tube themselves, when peeling off the cable, there is no need to do precise process on most cable insulation, greatly reducing the labor of installation.
Size |
TYPE |
66kV |
77kV |
110kV |
138kV |
220kV |
500kV |
H |
CN-YJZWGG4 |
980 |
1500 |
1650 |
2450 |
5800 |
|
A |
CN-YJZWGG4 |
1700 |
2200 |
2350 |
3300 |
6750 |
|
B |
CN-YJZWGG4 |
1410 |
1935 |
2085 |
3100 |
6500 |
|
C |
CN-YJZWGG4 |
Φ430 |
Φ450 |
Φ650 |
Φ800 |
||
D |
CN-YJZWGG4 |
Φ200 |
Φ260 |
Φ350 |
Φ500 |
||
E |
CN-YJZWGG4 |
4-Φ25 EQS |
4-Φ25 EQS |
6-Φ32 EQS |
|||
Product Introduction
rigid dry pluggable outdoor termination with our code CN-YJZWGG4 is widely used for outdoor high-voltage overhead lines and cable connections with pollution resistance of grade IV. They are composed of connector lug, stress cone, rigid bushing and wiping sleeve.
The stress cone adopts imported liquid silicone rubber injecting forming, using spring cone proposition installing structure which has long-term stability of lasting hold force and electric field uniform ability. Epoxy glass fiber insulating bushing for rigid bushing use is covered by silicon skirts, forming a cone shape outside the bushing, with good performance of pollution resistant, climate resistance, anti-leakage marks, anti-erosion and water repellent ability. There is no need to fill SF6 gas or insulating oil, which makes it more secure and reliable. This product is compact with light weight and small size. It not only has light and anti-explode property of the silicone dry terminal, but also has the rigid supporting functions of porcelain bushing, and the installation convenience property of GIS termination, which effectively ensures the long-term safety operation of the product. Our product is using multiple sealing structures which can effectively prevent the leakage of water immersion and insulating oil. All of the seals are using imported NBR or silicon rubber material. All of the fastener raw-material is stainless steel with good waterproof seal performance.
This outdoor terminal is the only one with all the advantages of explosion-proof, rigid, dry, oil and gas free, it is the first choice of the majority of electricity users.
The cross sectional areas range of cables with supporting accessories of various voltages is as following:
48/66kV~56/77kV 150~1400mm²;
64/110kV~76/138kV 240~1600mm²;
127/220kV~290/500kV 400~3000mm²;
Product Characteristics:
Rigid dry pluggable outdoor termination not only has all the advantages of composite bushing termination, but also has the following superior performances:
Oil-free: using dry structure, oil and gas-free.
Easy installation: because bushing has the high-voltage shielding tube themselves, when peeling off the cable, there is no need to do precise process on most cable insulation, greatly reducing the labor of installation.
Size |
TYPE |
66kV |
77kV |
110kV |
138kV |
220kV |
500kV |
H |
CN-YJZWGG4 |
980 |
1500 |
1650 |
2450 |
5800 |
|
A |
CN-YJZWGG4 |
1700 |
2200 |
2350 |
3300 |
6750 |
|
B |
CN-YJZWGG4 |
1410 |
1935 |
2085 |
3100 |
6500 |
|
C |
CN-YJZWGG4 |
Φ430 |
Φ450 |
Φ650 |
Φ800 |
||
D |
CN-YJZWGG4 |
Φ200 |
Φ260 |
Φ350 |
Φ500 |
||
E |
CN-YJZWGG4 |
4-Φ25 EQS |
4-Φ25 EQS |
6-Φ32 EQS |
|||
