Help CenterFatigue Test Machine for Hydraulic Hoses
Related Products
-
SBT64 Hydraulic Pressure Burst Test BenchUS$ 1 - 1,000MOQ: 1 Piece -
SPT70H Static Impulse Tester- Test BenchUS$ 1 - 1,000MOQ: 1 Piece
-
SPT80H Fatigue Tester- Test BenchUS$ 1 - 1,000MOQ: 1 Piece
-
SPT70 Impulse Test BenchesUS$ 1 - 1,000MOQ: 1 Piece
-
SBT400 Burst Pressure Test BenchUS$ 1,000 - 10,000MOQ: 1 Piece
Specifications
Pulse Test StandHuman-machine interactive dialog operation
Pulse pressure:32Mpa
Frequency:0.5-1.25Hz
ISO9001

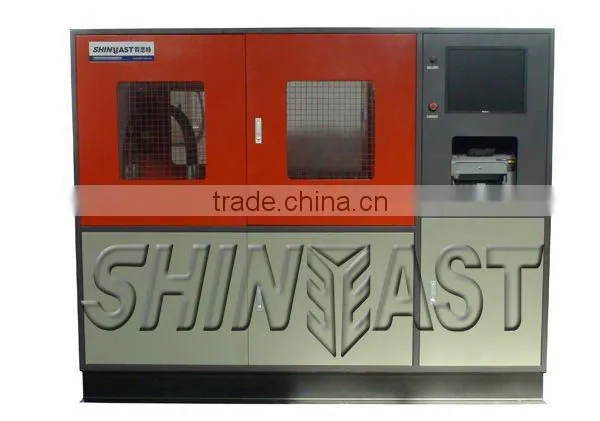

Pulse Test Stands include SPT32 are specialized test rigs to provide pressure,impulse as well as deflection and vibration etc. functional testing for various hydraulic hoses,automobile and aeronautic components.They are powered by hydraulic pump motor and use Shineeast hydraulic pump for oil pressurization.Pulse pressure up to maximally 80Mpa.Test medium of Hydraulic oil ISO VG46 or ISO VG32.
Applications
- Impulse tests of hydraulic hose lines using in construction machinery, mining machinery,aeronautic hoses, valves,vessels and automobile pumpbrake system or components,power steering etc
- Deflection, vibration and etc. functional testings available
Key features and advantages
- Separate testing and driven system. Available for easily temperature control as well as powering a variety of mediums,such as oil,water or non-corrosive liquids
- Control units with IPC and PLC
- Real-time monitoring as well as data recorded on high-speed sampling cards and also curves printing
- Alarming at due time bursting and due point recording
- A variety of tooling fixtures meeting with different mounting method requirements
- Non-welded pipeline system
- Industrial control configuration software or on LABVIEW
- Deflection and vibration functional testing for option
Technical parameters
Type | SPT32 |
Max. pulse pressure | 32Mpa |
Test medium | Hydraulic oil ISO VG46 or ISO VG32 |
Test medium temperature range | Room temperature to 120 degrees centigrade |
Enviroment temperature | Room temperature |
Pressure source | Shineeast hydraulic oil pump |
Power source | Hydraulic pump motor |
Flexing | Optional |
Control unit | PC |
Pulse frequency | 0-1.25Hz |
Deflection frequency | 0.3-1.0Hz |
Vibration frequency | 5-30Hz |
Dimensions of the test chamber (width x depth x height) approx. | 2400 X1400X1000mm |
