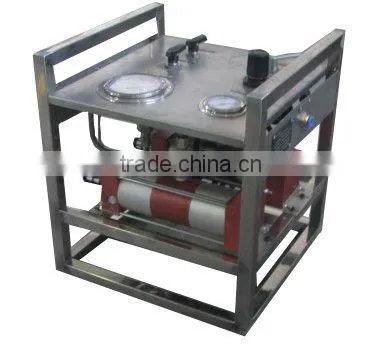

16 bar Air Booster Unit-2013

Specifications

Rugged construction
Stainless steel frame
Certificate: ISO9001
Max. outlet pressure: 16 bar



The Air Pressure Booster unit includes model ABS-MPV02 and it is a complete pneumatic system designed to provide double the available compressed shop air pressure and momentary high flow.



They feature air pressure booster fitted with an air control unit comprising of a filter, pressure regulator with pressure gauge and an air shut-off valve, and an air tank. So the desired operation    pressure and flow can be preset by the means of the air control unit in correspondence with different pressure ratios.



Ideal for use with machines or applications where higher pressure is required than the compressed airline system available.

We can also offer you a choice between a standard Air Pressure Booster System or a customized solution.



Applications

   Provide air powered tools and machines in large factories with marginal central air pressure systems



   Air pressure boosting in tools for operation of pneumatic clamps, cylinders and many other equipments





Used for pressurizing air, making low-pressure air to high pressure air, the highest can be 16 bar.



The system can be used for filling cylinder, truck tyre, or others that need high pressure air.



Type	ABS-MPV02
Air drive pressure (bar)	3-8
Pressure ratio	2:1
Outlet pressure (bar)	6-12
Air drive port	1/2'' PU pipe
Outlet port	NPT3/8''
Ambient air pressure	0.1 Mpa
Noise	<75dB
