C-frame Hydraulic Litelocker Press
- 1000 Piece / Pieces per Month
- Qingdao or Tianjin
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | SHINEEAST | Model Number: | FL08 |
Power: | Hydraulic | Usage: | Other |
Product Description
Specifications
Hydraulic PressRugged,efficient
No damage,no distortion
ing force:1000KN
Max.total stroke:100mm

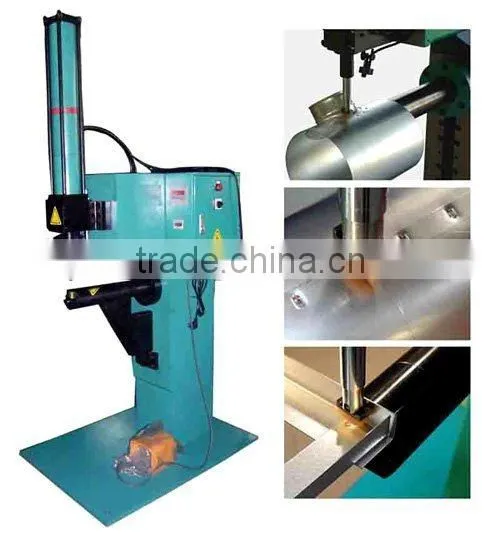

Model FL08 Litelocker Press is a solid construction built with advanced technologies unit driven with Shineeast-Powerpackage. It can firmly join two or three sheet metal by means of a drawing-pressing process. And it does so without any damage to the surface, purely by cold forming. In addition, it assures you with high productive efficiency as well as high precision and reliability meeting with air blower and pipeline industries requirements.
Components
- Frame(cast steel)
- Shineeast-Powerpackage (Series H, P and FT for option )
Our standard function modulars as well as the control units are provided for your specific application requirements.
Optional Modular
- Two hand safety control modular
- Coupling flange
- Intelligent monitoring
- Processing position indicator
Advantages
- Compact and rugged construction
- Cast steel support provides for solid construction as well as long life expectancy
- On-time monitoring and documented
- Processing position indication with laser point indicator
- No heating are required
- No damage to the precoated surfaces or plating sheet metal
- Low noise level
- Low energy consumption and minimum maintenance requirements
- Save on investment
- Available for the joining of various connecting pipes in rectangle or circular shape
- Almost unlimited number of possibilities are realized with variety specs of moulds,tool fixtures and punching heads
Technical parameters
Throat depth | 400mm |
Min. diameter of section | 80mm |
Thickness | |
Galvanized sheet | 2×0.5-1.5mm |
3×0.5-1.0mm | |
Stainless steel sheet | 2×0.5-1.0mm |
Aluminum plate | 2×0.5-1.5mm |
Mould-shut height | 50mm |
Power stroke | 6mm |
Total stroke | 100mm |
Driven air pressure | 6bar |
Please consult us for printable dimensional drawing and technical parameters for Model FL08.
