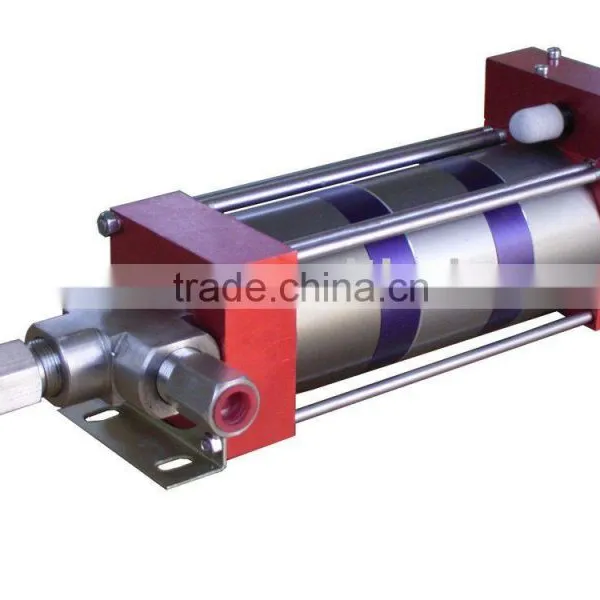

M100-3 Air Driven Hydraulic Pump
- 5000 Piece / Pieces per Month
- FOB Qingdao/Tianjin China
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SHINEEAST | |
| Model Number | M100-3 Series | Theory | Reciprocating Pump | |
| Structure | Piston Pump | Usage | Air Pump | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Metering |
Product Description
Specifications
Air Driven Hydraulic PumpSafe,Rugged-triple heads
Pressure range:240~408Mpa
Two ratios available
Best price,high quality
M100-3 Series air driven liquid pumps are high pressure reciprocating plunger pumps of single acting, triple air drive heads model. Air drive pressure from 1bar(14.5 psi) to 8bar(116 psi) maximum.Compared with the single acting single air head M series, they reach triple pressure at the same air drive pressure. Provide for super high pressure up to 4,080 bar(59,160psi).
Key features
- One model available in 2 ratios
- Compability with a variety of liquids
- Air driven - no electricity required and explosion proof
- Aluminum bodies and wetted materials of carbon steel or stainless steel
- Super high pressure available
- High quality seals, long service life available
- No need for air line lubrication
- M**-3 Series pumps come standard with bottom inlet
Technical parameters
Type | Pressure Ratio | MAX Outlet Pressure (bar)* | Connection: Inlet A | Connection: Outletlet B | Flow (L/min) |
M100-3 | 300:1 | 2400 | 3/8" | 3/8" | 0.24 |
M170-3 | 510:1 | 4080 | 3/8" | 3/8" | 0.13 |
Note:All data based on air drive pressure of 6 bar. *at drive air of 8 bar.
Please consult us for printable dimensional drawings and performance charts for M**-3 series pumps sized to your specific application parameters.
