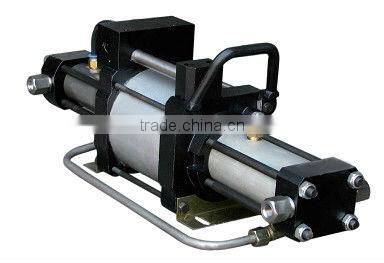

Portable Air Driven Oxygen Booster for Charging--PSD40

Name: Portable Air Driven Oxygen Booster for Charging--PSD40
Brand: SHINEEAST
SKU: 112715115
Availability: InStock

US$ 0.1 - 0.9 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

SHINEEAST

Model Number:

PSD40

Jinan Shineeast Fluid Systems Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name SHINEEAST

Model Number PSD40

Theory Reciprocating Pump

Structure Single-stage Pump

Usage Air Pump

Power Pneumatic

Standard or Nonstandard Standard

Pressure High Pressure

Application Metering

Specifications

Air Driven Gas Booster
Stability,low noise level
Safe operation, ex-proof
Max operation pressure: 48Mpa

Powerstar Series Gas Boosters involve PSD Seires are another type of high pressure reciprocating pumps used for gases boosting , driven of compressed shop air. PSD Seires are double acting ,single air head driven type. They are characterized by the same features as the PSA series except double acting.
PSD Series Gas Boosters are suitable for the oil free compression of air and industrial gases like Nitrogen, Helium as well as flammable and risk gases like hydrogen,oxygen and natural gas.Air drive pressure from 1bar(14.5psi.) to 8bar(116psi.).Provide for operating pressures up to 48Mpa.

Key features

Double action for effective operation
No electricity required. Safe operation, ex-proof
More appropriate ratios for meeting higher flowrates and faster fill times
No airline lubricator required
Hydrocarbon free-seperation between air drive and gas booster sections
Suitable for most gases
Built-in cooling
High quality seals, long life service available
All components in contact with the gas are made of aluminium or resp. stainless steel
There are four models for your option
Standard and custom systems available
Reliable,easy operation and maintenance

Technical parameters

Type	Pressure ratio	Min. gas inlet pressure P_A(bar)	Max. gas oulet pressure P_A (bar)	Max. permitted oulet pressure P_B (bar)	Formula to calculate gas oulet pressure P_B	Connection: Gas Inlet / Gas outlet	Max.flow at air drive pressure of 6bar (L/min)
PSD15	15:1	6.8	120	120	15P_L+P_A	ZG1/4/ ZG1/4	372(at P_A of 20 bar)
PSD25	25:1	12.5	200	200	25P_L+P_A	ZG1/4/ ZG1/4	91(at P_A of 20 bar)
PSD40	40:1	18.5	320	320	40P_L+P_A	ZG1/4/ ZG1/4	55(at P_A of 20 bar)
PSD60	60:1	31	480	480	60P_L+P_A	ZG1/4/ ZG1/4	68(at P_A of 40 bar)
