Help CenterLBS130 Pneumatic Pump Unit---Shineeast, 2013
Related Products
Specifications
Air Test PumpMax.output pressure:100Mpa
Medium:oil,water,corrosive liquid
Certificate:ISO9001
Pneumatic Pump Unit
Pneumatic Pump Units include LBS130 Model are complete hydraulic pump units ready for connection which are provided for generating operating pressures up to 100MPa. It is suitable for powering a variety of medium, such as oil, water or corrosive liquids.
As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary.

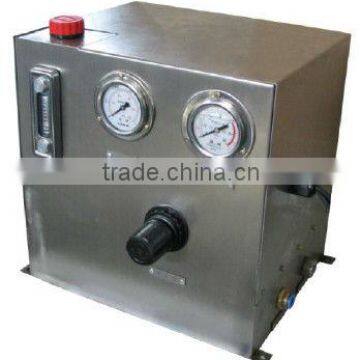

To operate this system, the air driven liquid pump has to be equipped with the air control unit combined filter and water seperator, pressure-regulating valve,pressure control gauge as well as manual relieve valve. In this operation,the pump will be mounted to the stainless steel tank in the closed cabinet in a compact and space saving manner.Pressure gauges, valves and pressure regulators will be fitted on panel.
The desired operating pressure can be attained by adjusting the driving air pressure.When the driving air pressure and the output pressure reach the balance,the pump stops filling pressure and the output pressure stays at the preset value.
This hydraulic unit can be used for all kinds of pressure testing and test tools for research and test institutes or for other functions requiring a determined pressure.
- Compact and rugged construction
- Not electromotive, but pneumatically powered- intrinsically safe operation and ex-proof
- Pneumatically powered of oil free compression and clean air .No contamination possible
- Simple controlling and regulating processes because of the compressed-air drive.
- High quality seal material , long seal life available
-
Robust and reliable operation in hardest operating enviroment.For example,
the power pack will not be damaged through moist rooms, dust or higher temperatures - No energy consumption after having reached the set final pressure
- Low cost of installation as simple design of components are reduced to a minimum
Applications
- Hydrostatic and pressure tests for valves, pipe and tubes, pressure vessles, pressure switches,tanks, hoses, pipes and tubing, pressure gauges, cylinders and etc.
- Hydrostatic and dynamic tests for aircraft components
- Calibration of pressure gauges and transducers
- Pressurization of pressure vessels for testing various components
- Emergency shutdown systems for oil and gas wells
Technical parameters
Type |
LBS130 |
Air drive pressure |
3-8bar |
|
Max. outlet pressure (at air drive pressure of 8bar) |
104Mpa |
Generation of pressure |
SHINEEAST air drive liquid pump |
Pressure ratio |
130:1 |
Air consumption |
0.6-1.2 m3/min |
Operating medium |
Oil, water, non-corrosive liquids |
Driving medium |
Compressed air |
Oil tank capacity |
40L |
Dimensions (W x D x H) |
700x500x900mm |
