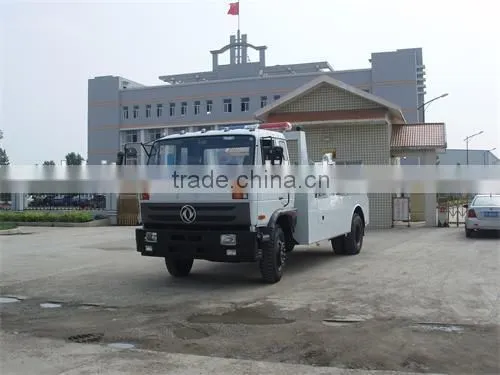

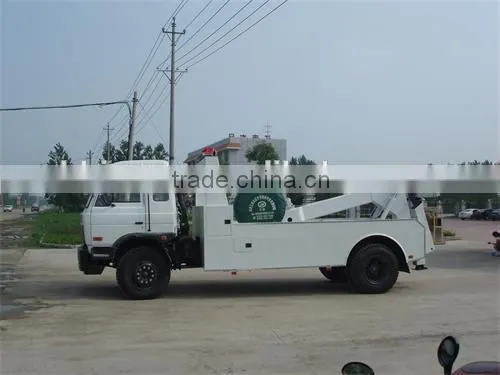

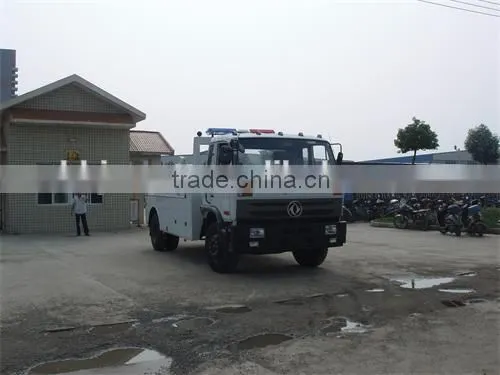

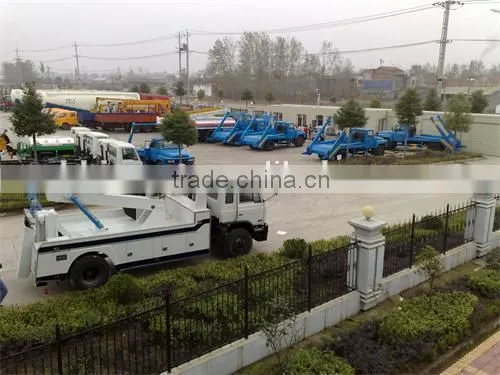

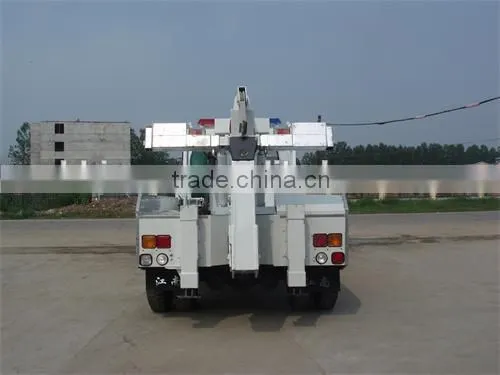

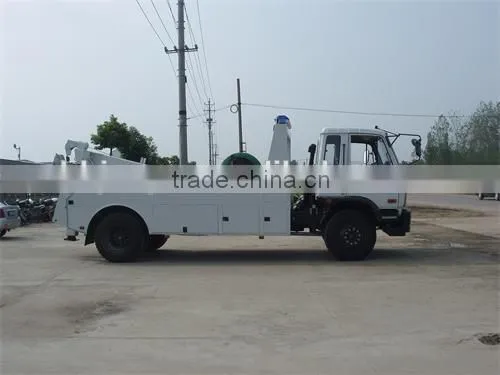

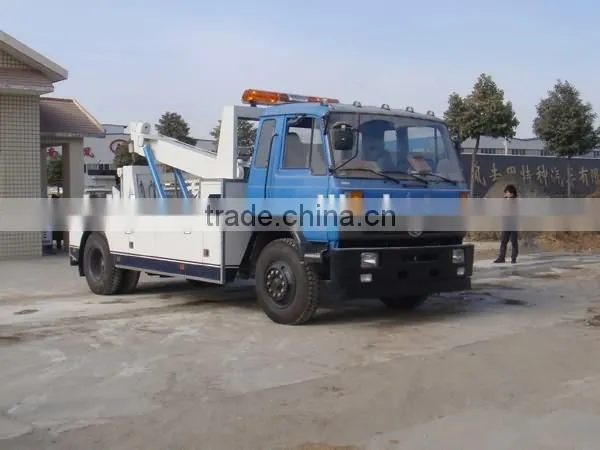

Dongfeng 153 10-13 Ton Heavy-duty Wrecker Towing Truck

US$ 10,000 - 40,000 MOQ: 1 Set

Key Specifications

Fuel Type:

Diesel

Emission Standard:

Euro 3

Condition:

New

Hubei Jiangnan Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Fuel Type Diesel

Emission Standard Euro 3

Condition New

Transmission Type Manual

Dimensions (L x W x H) (mm) 7440*2498*2920

Place of Origin Hubei, China

Brand Name JDF

Model Number JDF5160TQZG

Specifications

1,Most famous chassis.
2,ISO9001-9002.Quality Standard. CCC approved.
3,High quality.
4,fast delivery time.

DONGFENG HEAVY-DUTY TOWING TRUCK

Summary Hot line( 0086-18727938399 Fax: 0086-0722-3330262
Basic Information
Vehicle name	Tow Truck		Chassis:	EQ5160GKJ
Outline size(L×W×H) (mm)	744024982920		Cargo inline size(L×W×H)(mm):	/
Rating mass(kg)	/		Empty mass(Kg):	10705
Full mass(kg)	15600		Emission standard	Euro 3
Engine Information
Model	B190 33		Type		6 Cylinder Diesel engine
Power/displacement(KW/ML)	140(190HP)/5900		Manufacture		Cummins
Chassis Information
Wheelbase(mm):	4500,4700,4950		Axle load(kg) F/R			5800/9800
Tire	9.00-20,9.00R20,10.00-20,10.00R20		Max speed (km/h):			80
Front overhang(mm)	1250		Rear overhang(mm)			1860/1950
Front track(mm)	1940		Rear track(mm)			1860
Approach angel(°)	32		Departure angle(°)			22/20
Steering	Power steering		Brake			Air brake
Cabin	3
Special function
Maximum lifting of quality(kg): 12000		Effective length (mm):2490
Maximum lifting height(mm):3300		Rated lifting quality(kg):4300/3980/4700
Telescopic crane travel(mm): 1600		Full extend maximum lift quality(kg):3500
Rated traction winch(kg): 5000		The rated supporting lead quality(kg):15700
The length of wire rope(m):30
Trade terms
Quote Lifetime	30days (we promise the quote is effective in the lifetime!)
Payment terms	1. 30% by T/T in advance, 70% by T/T against the copy of Bill-of-Lading. 2. Letter of credit payment for some countries and regions.
Deliver time	30workdays
MOQ	1set
Supply quantity	3,000sets/month
Package	waxing
