Specifications

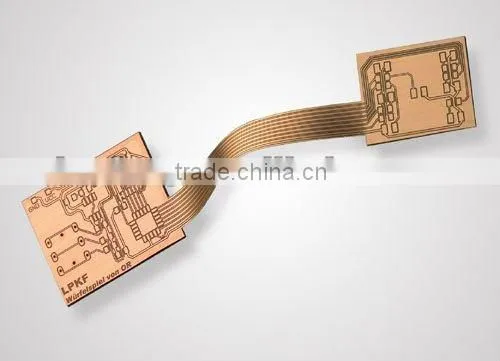

1.customed flexible circuit2.high quality flexible circuit
3.LED light can be installed
4.FPC - single side circuit
flexible printed circuit specifications:
1.100% quality tested
2.Long life expectancy
3.LED light can be installed
4.FPC - single side circuit
Primary Competitive Advantages:
1. Prompt Delivery
2. Quality Control (IQC, On line Inspection, OQC, ISO9001 and 5S)
3. Reputation
4. Service
5. Small Orders Accepted
6. Superior R&D Background (continuously new product development and current product improvement)
7. Customize Design / Production (OEM/ODM business and flexible designs for customers' special requirements)
Performance indicators:
1. Electronic characteristics
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω--500Ω (According the trace length and materials to comfirm)
Insulation resistance:> 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand:250VRms (50-60Hz 1min)
Life expectancy: flat type ≥ 500 million times, tactile type: ≥ 100 million times
2. Mechanical Properties Actuation force:flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz) Switch stroke: flat type 0.1-0.5mm, tactile type 0.6-1.5mm
3. Environmental parameters
Operating Temperature: -40 - +80 , Storage temperature: -40 - +85
Humidity: 40 , 90% -95%, 240 hours
