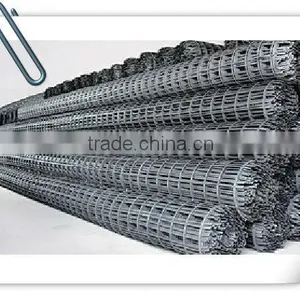

Help CenterMining Geogrid
Related Products
-
Fiberglass Geogrid Factory From Taian City ,Shandong,ChinaUS$ 0.25 - 2.5MOQ: 12000 Square Meters -
Tensile Strength Steel Plastic Geogrid With Best QualityUS$ 0.5 - 2MOQ: 13000 Square Meters
-
Warp Knitted Polyester Geogrid With PVC Coating Best SaleUS$ 1 - 8MOQ: 1500 Square Meters
-
Geogrid Suppliers Warp Knitted Polyester Geogrid With PVC CoatingUS$ 1 - 8MOQ: 1500 Square Meters
-
Biaxial Steel Plastic Composite GeogridUS$ 1 - 8MOQ: 1500 Square Meters
Specifications
1.gabion mining geogrids2.ISO 9001:2008 certificate
3.Strength:15kn--45kn/m
4.Width:4m
5.high quality/fastest shipping

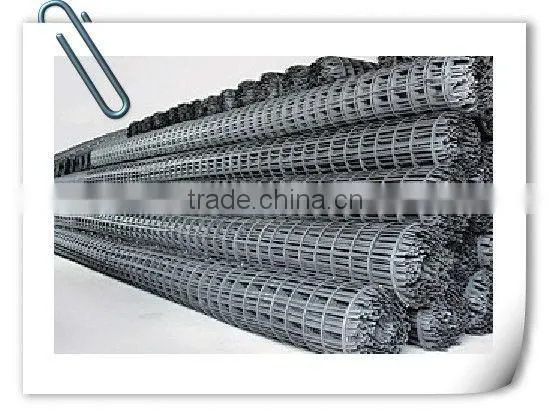

Tai'an city,Shandong, China gabion geogrids specification for Civil Engineering
| Spec item | 15-15 | 20-20 | 30-30 | 40-40 | 45-45 |
| Width(m) | 6 | ||||
| Vertical tensile yield per linear meter(KN/m) | 15 | 20 | 30 | 40 | 45 |
| Horizontal tensile yield per linear meter(KN/m) | 15 | 20 | 30 | 40 | 45 |
| Vertical tensile strech(%)≤ | 13 | ||||
| Horizontal tensile strech(%)≤ | 16 | ||||
| Vertical drawing force in 2% tensile strech(KN/m)≥ | 5 | 8 | 11 | 13 | 16 |
| Horizontal drawing force in 2% tensile strech(KN/m)≥ | 7 | 10 | 13 | 15 | 20 |
| Vertical drawing force in 5% tensile strech(KN/m)≥ | 8 | 10 | 15 | 16 | 25 |
| Horizontal drawing force in 5% tensile strech(KN/m)≥ | 10 | 13 | 15 | 20 | 22 |
Biaxial polypropylene geogrids are used in base reinforcement applications such as roads, storage yards and parking lots or any other load bearing structure. Biaxial polypropylene geogrids provide good tensile strength in both principle directions. The reinforcing action of E'GRID products lies mainly in increasing the shearing resistance within a soil by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is more effective and can reduce sub-base thickness and construction cost. E’GRID products can be used with any kind of fill material. Two aperture size ranges are available for optimum matching with project fill. One layer or multi–layer E’GRID construction distributes loading and disperses stress more effectively, leading to the reduction in differential settlement and improved foundation bearing capacity.
Biaxial polypropylene geogrids are used in base reinforcement applications such as roads, storage yards and parking lots. Biaxial polypropylene geogrids provide good tensile strength in both principle directions. Biaxial polypropylene geogrids primary functions: reinforcement. Please note that due to distribution agreements, the biaxial PP geogrid available in your location may vary from the properties shown. Please contact your technical representative for additional information on the biaxial geogrid available in your area.
[APPLICATION]
(1)Road surface reinforcement of road,railway and airport road;
(2)Maintenance,reconstruction and widening of old road surface(asphaltum road or cement concrete road).
(3)Reinforcement of soft soil roadbed,irrigation channels and water dams.
[PROPERTIE
(1)High tensile strength in both the warp and weft directions;
(2)Low elongation;
(3)Excellent temperature range;
(4)Good anti-age and alkali-resistance;
(5)Reduce construction cost, extend service life of road and prevent deflection cracks
