Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Marking Machine > Perfect Laser PEDB-400B 10W Rotary Fiber Laser Marking Machine
Perfect Laser PEDB-400B 10W Rotary Fiber Laser Marking Machine
US$ 3,000 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Perfect Laser PEDB-400A 30W Fiber Laser Marking MachineUS$ 3,000 - 6,000MOQ: 1 Set -
CO2 Laser Marking Machine Based on Coherent RF Metal Laser TubeUS$ 1,000 - 15,000MOQ: 1 Set
-
Perfect Laser PE-W400II 400w Fiber China Stainless Steel Laser Welding MachineUS$ 4,000 - 10,000MOQ: 1 Set
-
3D Curve Surface Dynamic Focusing Fiber Laser Marking Machine MOPAUS$ 16,000 - 34,000MOQ: 1 Set
-
3D Curve Surface Dynamic Focusing Fiber Laser Marking Machine Iphone MopaUS$ 16,000 - 34,000MOQ: 1 Set
Condition
New
Laser Type
Fiber Laser
CNC or Not
Yes
Cooling Mode
Air Cooling
Control Software
ezcard
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Working Accuracy
99.99%
Place of Origin
Hubei, China
Brand Name
Perfect Laser
Model Number
PEDB-400B
Power(W)
10W / 20W / 30W
Certification
CE, ISO, SGS, Other, CE, ISO, SGS, Germany TUV
After-sales Service Provided
Engineers available to service machinery overseas

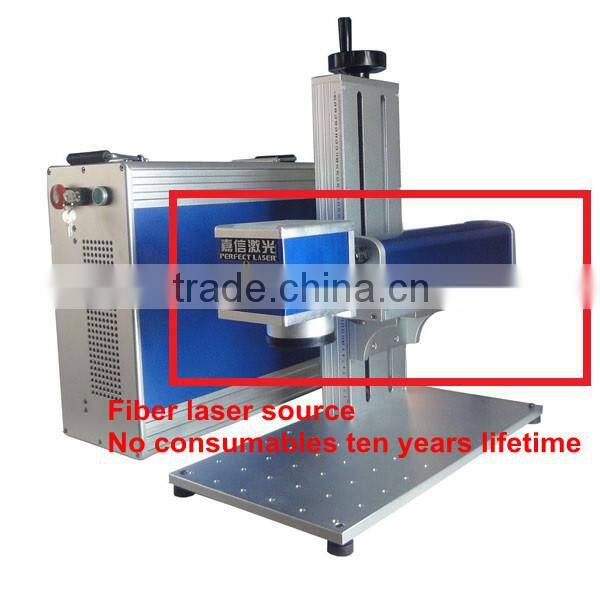

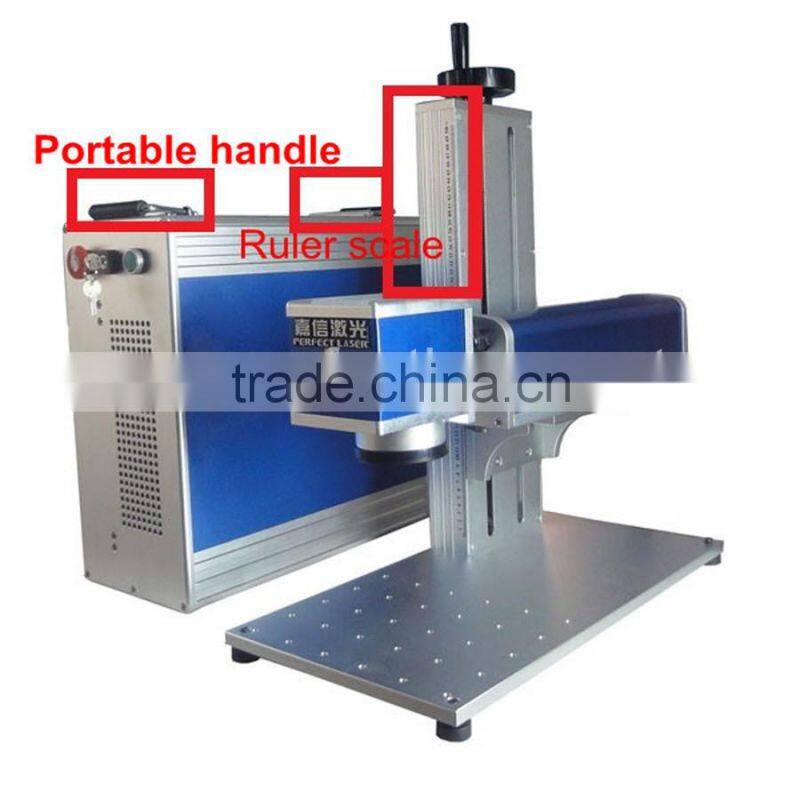

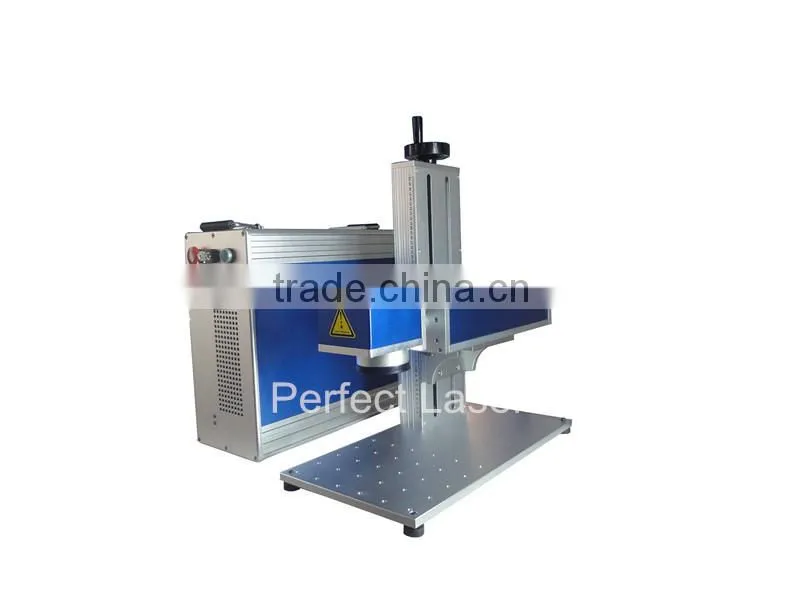

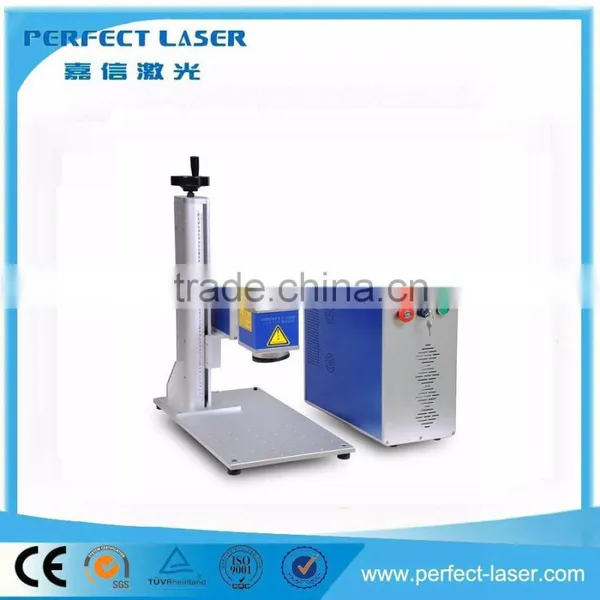

Perfect Laser PEDB-400B 10W Fiber Laser Marking Machine
Advantages

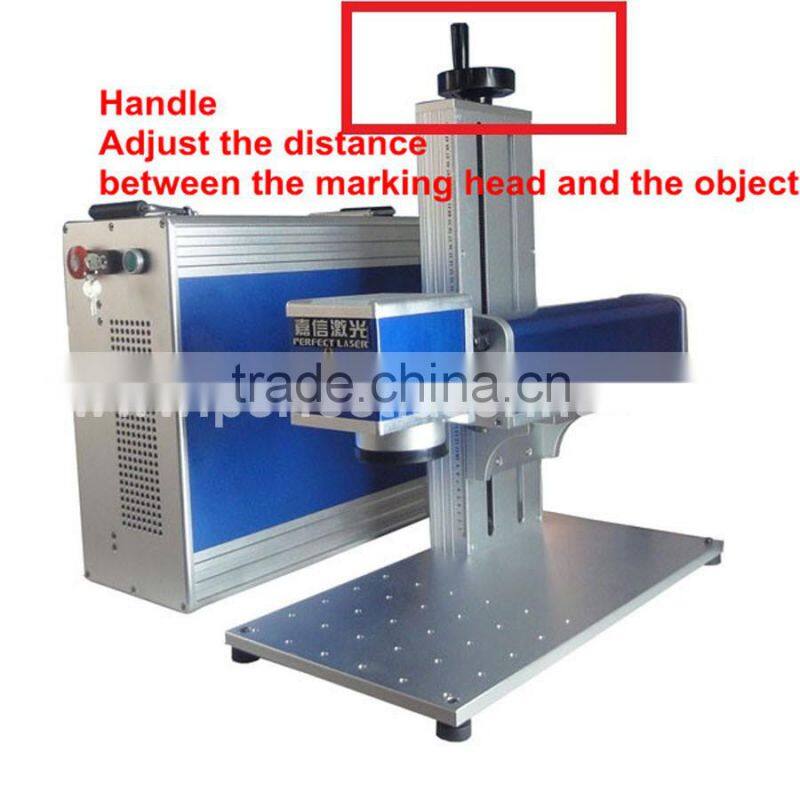

1.The upright column can adjust the height of the laser head, which can help to mark the work piece with different shape and thickness.
2.Best Marking Effect: the laser beam of fiber laser is fine and thin. It can provide the best marking effect among all the laser machine machines. Especially good in smallest character marking, such as mark on IC chip.
3.Deep Marking: Perfect Laser’s Fiber Laser Marking Machine can make deep marking up to 1.0mm on stainless steel and aluminum. While YAG and Diode marking only could mark 0.2mm-0.3mm.
4.Higher Accuracy: fiber laser can reach unto 0.001mm precision, while diode only 0.01mm.
5.10 Years Long lifetime: We used the fiber laser module made by Germany IPG technology, the lifetime of the fiber laser device is 100,000 hours, so the machine can be used for 8-10 years.
6.No consumables: Fiber laser machine can be used for 8-10 years without any consumables.
7.No need to adjust the laser path.
8.Free of Maintenance.
9.Use Integrated Air Cooling.
10.Low Power Consumption: low cost, only 0.5kw/hour.
11.Small and compact: the volume of Perfect Laser’s Fiber Laser Marking Machine is small.
Fiber Laser Marking Machine Application Scope and Material
- Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.
- Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.
- Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.
- Dishware ,food ,drinking,smoking and alcohol,etc.
Fiber Laser Marking Machine Specifications
Machine Type |
Fiber Laser Marking Machine |
||
Laser Sourse |
PEDB-400B 10W |
PEDB-400B 20W |
|
IPG Series |
Pulsed, High Energy Ytterbium Fiber Lasers |
||
Mode of operation |
Pulsed |
||
Polarization |
random |
||
Q-switched operation | |||
Output power adjustment range |
10%-100% |
||
Nominal average output power |
10W |
20W |
|
Central emission wavelength |
1060-1070 nm |
||
Emission Bandwidth (FWHM) |
<10 nm |
||
Long-term average power instability |
<5% |
||
Pulse width, (FWHM) |
100 ns |
||
Laser switching ON time |
180 μsec |
||
Laser switching OFF time |
180 μsec |
||
Pulse Repetition Rate* kHz |
20-80 kHz |
||
Energy per pulse (PRR = 20 kHz) |
0.95 mJ |
||
Typical beam quality, M2 |
<1.8 |
||
Output fiber delivery length |
3m |
||
Operating voltage |
220V |
||
Max. Power consumption |
600W |
||
After- sales service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English verson manual and operation video CD disc.
Oversea Installation
Laser machines in our workshop
Fiber Laser Marking Machine Samples
Details
Certification
EXhibition
Our Client
