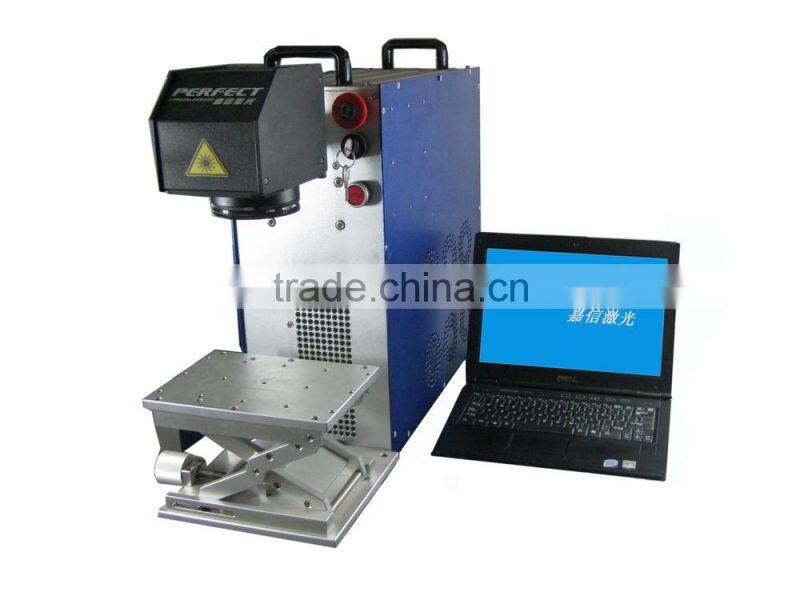

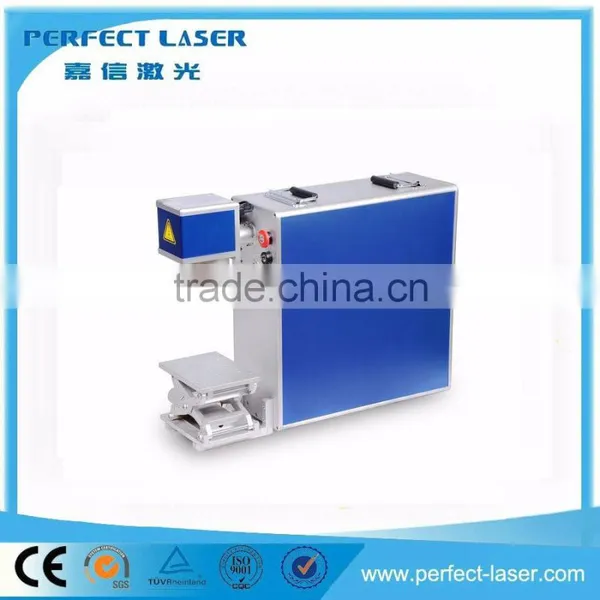

Perfect Laser PEDB-400A 30W fiber laser marking machine
Advantages for fiber laser marking machine
Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.
Application Scope and Material for fiber laser marking machine
- Electronic and communication products, IC products, electric lines, cable computer components and electric appliance.
- Every kind of precision parts,hardware tools,instrument appliance,aviation and spaceflight appliance.
- Jewelry, garments, instruments, gifts, office devices, brand scutcheon, sanitary ware appliance.
- Dishware ,food ,drinking,smoking and alcohol,etc.
Specification for fiber laser marking machine
Laser Sourse | |
IPG Series |
Pulsed, High Energy Ytterbium Fiber Lasers |
Mode of operation |
Pulsed |
Polarization |
random |
Q-switched operation | |
Output power adjustment range |
10%-100% |
Nominal average output power W |
10W / 20W / 30W / 50W / 100W |
Central emission wavelength |
1060-1070 nm |
Emission Bandwidth (FWHM) |
<10 nm |
Long-term average power instability |
<5% |
Pulse width, (FWHM) |
100 ns |
Laser switching ON time |
180 μsec |
Laser switching OFF time |
180 μsec |
Pulse Repetition Rate* kHz |
20-80 kHz |
Energy per pulse (PRR = 20 kHz) |
0.95 mJ |
Typical beam quality, M2 |
<1.8 |
Output fiber delivery length |
3m |
Operating voltage |
220V |
Max. Power consumption |
600W |
After-sales Servce
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English verson manual and operation video CD disc.
Oversea Installation

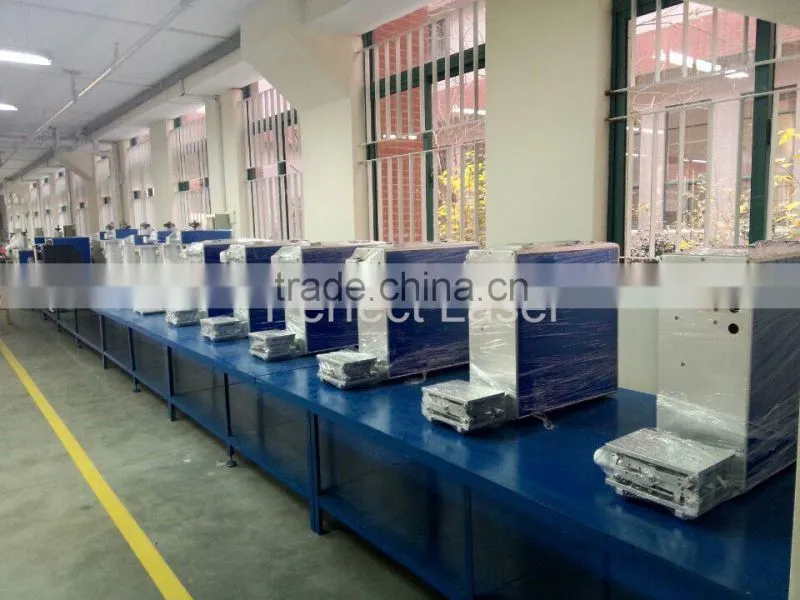

Laser machines in our workshop

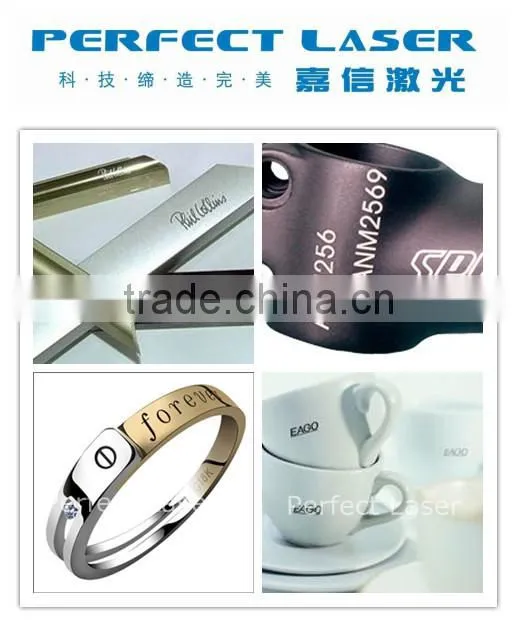

Fiber Laser Marking Machine Samples
Certification
EXhibition for fiber laser marking machine
Our Client
CONTACT ME AT ONCE
Whats App: 0086-13659883308
Send Inquiry to This Supplier
