Specifications
metal laser cutting machine
1.Auto-tracking system focus point
2.Japanese Panisonic servo
3.CE,ISO
4. High precisice

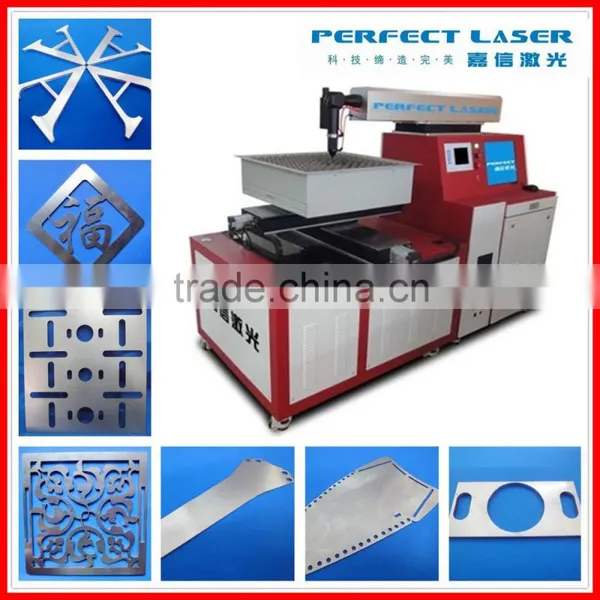

500W Laser Metal Cutting Machine YAG Laser Cutter 300*300mm
Application of laser metal cutting machine :
1. Applicable Materials: Stainless steel, mild steel, carbon steel, alloy steel, spring steel, iron, copper, brass, aluminum, gold, silver, titanium, metal sheets, metal plates, metal pipes, etc.
2. Applicable Industries: Sheet metal processing, metals ironware components and parts, chassis, racks & cabinets processing, kitchen ware, metal crafts, metal sign letters, elevator panel cutting, etc.
Product Features of laser metal cutting machine :
1.Adopt Advanced Germany Technology
The machine adopts the current most advanced laser technology from Germany. It can ensure that your machine is the most high tech in the world.
2. Advanced Laser Optical System to Ensure Excellent Laser Beam Quality
The whole laser optical system adopts an enclosed structure, and Double-Xenon-lamp technology, can strongly improve the laser power and laser beam quality during cutting.
3. Laser Path Pre-view and Pre-position Function
Since laser beam is in-visible, so we adopt a “Red Light Pointer” to realize the laser path pre-view and Pre-position function. By adding the red light pointer, user can simulate the running path of the laser beam’s track so as to positioning the accurate cutting area in the material and achieve more convenient operation.
4. Unique Mirrors and Lens Cooling Technology
All of our mirrors and lens are designed to be cooled by water. This is the unique design which is first used by Perfect Laser. The water circulate can bring the heat of the mirror and lens during working, so it can prolong the lifetime of the mirror and lens and save your future operation cost.
5.Professional Laser Cutting Software
We use CNC 2012 latest version, with powerful editing function, Friendly interface, easy to Use. Can supports DXF, PLT, G-Code and many other graphs.
Technical Data of laser metal cutting machine :
Model |
PE-M500-2513 |
PE-M500-3015 |
PE-M700-2513 |
PE-M700-3015 |
Working Area |
2500x1300 mm |
3000x 500 mm |
2500x1300 mm |
3000x1500 mm |
Max. Output Power |
500w |
700w |
||
Max. cutting thickness |
5-6mm Mild Steel |
7-8mm Mild Steel |
||
Best cutting thickness |
4-5mm Mild Steel |
5-6mm Mild Steel |
||
Actuating Medium |
Nd+3:YAG |
|||
Input Power |
16 KW |
|||
Single Impulse |
10J |
|||
Laser Wave length |
1064nm |
|||
Impulse Width |
0.2~10 ms |
|||
Impulse Frequency |
0~300 Hz |
|||
Max. Cutting Speed |
20-50mm/s(1mm Stainless Steel) |
|||
Minimum Line Width |
0.4 mm |
|||
Power Stability |
< ±3% |
|||
Table Axial Positioning Accuracy |
0.05 mm |
|||
Table-Driven System |
Japan Panasonic Servo Motor Driver |
|||
Focus System |
Germany Dynamic Auto Focus System |
|||
Table Repeat Positioning Accuracy |
0.02 mm |
|||
Laser Power Supply |
Dedicated high frequency pulsed laser cutting power supply |
|||
Laser Head & Focus System |
Include 45°Reflect Mirror, Focus Lens |
|||
Laser Optical Bridge |
Include Laser beam expander, Half reflection Lens, Full reflection Lens, Laser Cavity, Red light. |
|||
XY Working Table |
High-precision Ball Screw Table with dynamic auto-focus function. |
|||
Water cooling System |
External 5Kw water cycle cooling system |
|||
PC controlling system |
Professional Cutting Software installed |
|||
Professional Software |
CNC Numerical Control Software, PLT,DXF,G-Code SUPPORT |
|||
Control Panel of laser metal cutting machine :
Water Cooling System of laser metal cutting machine
The water cooling machine is 7P, with refrigerator function.
Key Parts of laser metal cutting machine
Sample Pictures of laser metal cutting machine :
Perfect Laser Exhibition Photo of laser metal cutting machine :
Choose Perfect Laser, Choose the Best Partner in Your Business
Perfect Laser Customer Visiting of laser metal cutting machine :
Perfect Laser Has Customers All Over 180 countries with Good Reputation
Perfect Laser Cetification of laser metal cutting machine :
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact China Perfect Laser!
- The exact material you want to cut? (Stainless steel, carbon steel, mild steel, etc.)
- The cutting depth on above materials?(max thickness, 3 mm, 5 mm, 7 mm, 15 mm....)
- The working area you demand? (max dimension of material, width*length, 1500*3000 mm,...)
Pls don't hesitate to send us enquiry if you have interest with our machines!! :)
Video, Machine Photo,Samples, if you need , pls send me inquiry!
