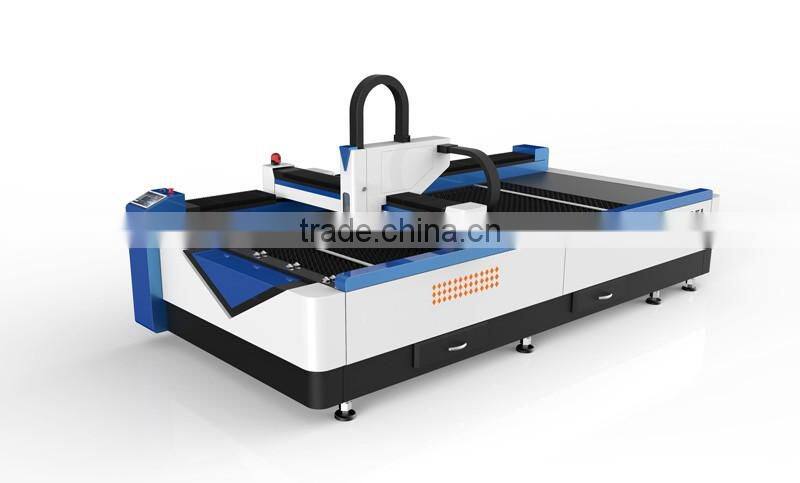

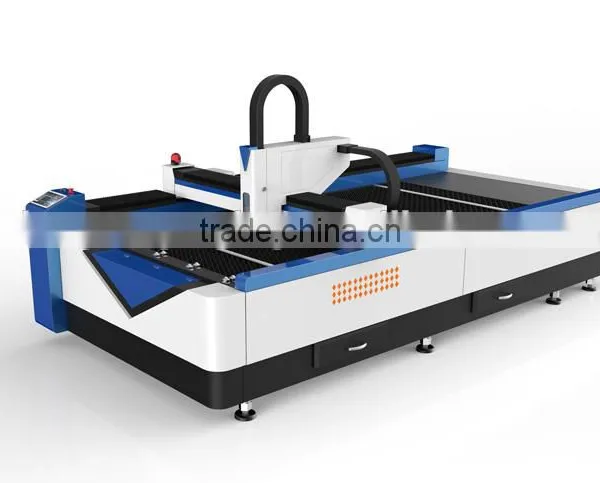

SM1325 200W/300W Raycus Laser Source laser fiber cutting machine
Model | SM1325 200W/300W | |
Working Area (X*Y) | 1300mm*2500 | |
Table type | Knive table | |
Laser wavelength | 1080nm | |
Power and cutting head | 300W Raycus Leetro MPC6595 controller | |
Laser power injection | 1.6 KW | |
Water chiller power | 6000 | |
X-axis and Y-axis Location accuracy | ±0.05mm | |
X-axis and Y-axis repeat location accuracy | ±0.01mm | |
Max moving speed | 30m/min | |
Max. cutting speed | 20m/min | |
Min. cutting line width | 0.02mm | |
Applicable material | Stainless steel, carbon steel, aluminum, copper, titanium plate, iron ,etc. | |
Cutting thickness | Stainless steel 2mm, carbon steel 3mm | |
Whole machine floor space | 3.5×2.2×1.5m |
Relevant laser parts:
Cutting thickness:
| Raycus 300W Cutting Parameters | |||||
| Material | Thickness | Speed(mm/s) | Pressure(MPa) | Gas | Cutting height |
| Stainless steel | 0.5 | >200 | 1 | N2 | 0.6 |
| 1 | 90~120 | >1.1 | N2 | 0.6 | |
| 2 | 16~20 | >1.5 | N2 | 0.6 | |
| Carbon Steel | 1 | 120~150 | 1 | O2 | 1 |
| 2 | 35~45 | 0.6~0.8 | O2 | 1 | |
| 3 | 15~18 | 0.3~0.5 | O2 | 1 | |
Samples:
Applicable materials and industry
Suitable for stainless steel, carbon steel and some other metal materials precise cutting, applicable for aerospace technology,
rocket, plane, robot,elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate,
advertisement, kitchen ware, bit tool, hardware etc
Advantage of Fiber laser
1, High electro-optical conversion efficiency, 300% more efficient than CO2 laser
2, Low operating and maintenance cost, only 6% of CO2 laser
3, High cutting speed, 600%~1000% faster than CO2 laser
4, Small in size, light in weight, mobile working position, minimum space requirement
WHY Choose Sameng fiber laser cutting machine
Stable Z-axis and auto focus system
The laser head equipped with Au3Tech adjustor, Able to adjust focal length automatically, guaranty the best cutting quality,
prevent material scrapping caused by changing of focal length when metal is not flat Due to non-contact sensing device,
when controlled by system, able to achieve stable Z axis floating function, eliminate negative effects caused by non-flat material
Warranty and Service:
1.one year equipment warranty and maintenance for lifetime.
2.Free installation and test before sending and free training for operators
3.Advice for the solutions best for customers requirements.
4.free training and sample provided
Jinan Sameng Machinery Manufacture Co.,Ltd specialized in laser engraving machine, laser cutting machine,
CNC router, Laser marking machine etc. we are looking for agents and hope to cooperate with you
