Help CenterMulti Spindles Cnc Woodworking Machinery Price With Auto Tool Changing Quality Choice
Related Products
-
Cnc Wood Machine With Two Exchanging SpindlesUS$ 2,500 - 8,000MOQ: 1 Set -
M25 Multi Head 3D CNC Router/Heavy Duty Cutting Machine for Solidwood,MDF,aluminum,alucobond,PVC,Plastic,foam,stone Quality ChoiceUS$ 8,000 - 12,000MOQ: 1 Set
-
M25H Auto Tool Changer Cnc Router for MDF Aluminum Alucobond PVC Plastic Foam Stone With Computer Controlling Wood RouterUS$ 15,000 - 30,000MOQ: 1 Set
-
M25 Cnc Wood Cutting and Engraving Wood Cnc EngraverUS$ 3,000 - 8,000MOQ: 1 Set
-
Cnc Engraving Machine With Rotary Axis for Cylinder FurnitureUS$ 2,000 - 20,000MOQ: 1 Set
cnc woodworking machinery price/3d cnc wood carving router/cnc machine wood/stone engraving cnc router/foam cutting cnc router

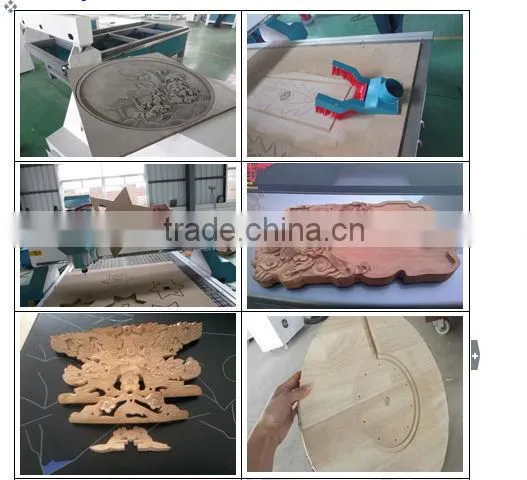

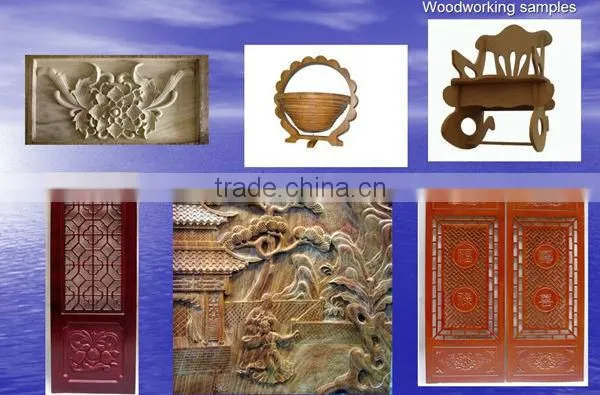

cnc woodworking machinery Samples

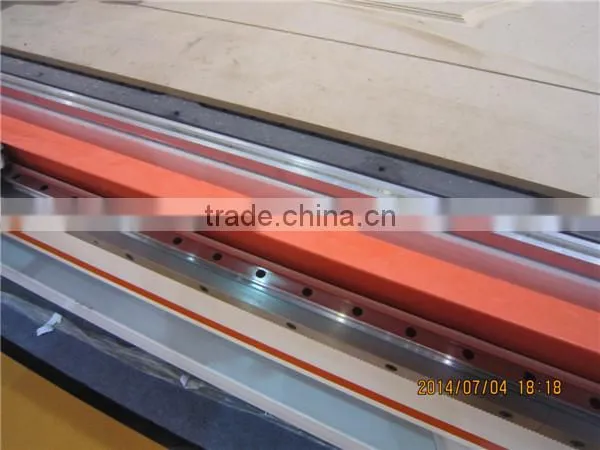

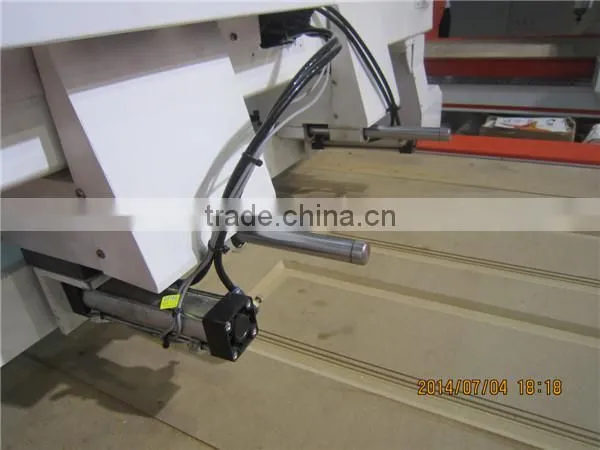

cnc woodworking machinery Parts
Features:
1.Whole machine is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
2.Y axis with double motor driving ensures stable and smooth movement of the machine.

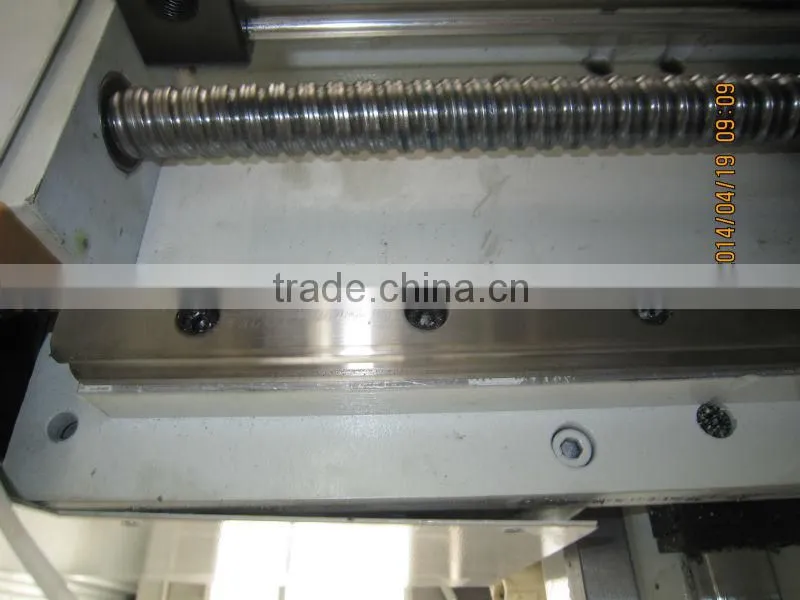

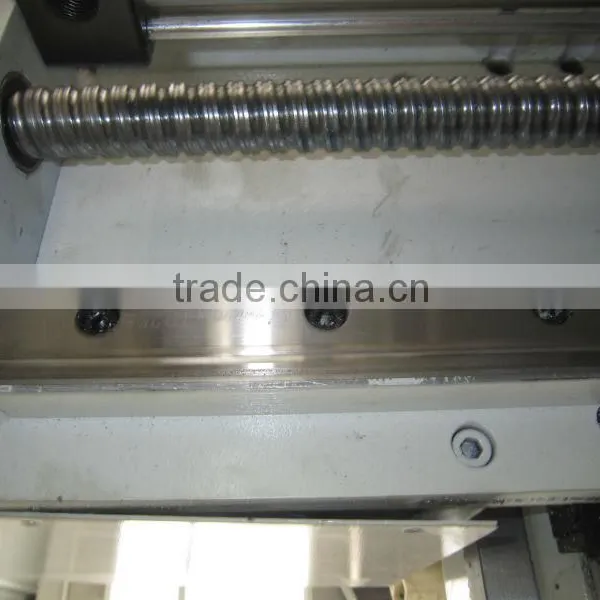

3.Adopts Germany-made ball screw on Z axis, having the character of high precision and long life time. XY axes adopt rack and pinion transmission, having character of fast working, high efficiency and low cost.
4. 4.5KW water-cooling spindle, low noise, vigorous cutting strength and long time mass processing.
5. Vacuum table with 6 vacuum zones, which can adsorb different size materials and has strong suction of 23 cube meters /hour.(optional)
6.Humanized design of vacuum table with T-slot and clamps, can absorb or clamp the material, the operation is convenient.
7. Advanced design of the machine make sure strong cutting and guarantee the engraving precision.

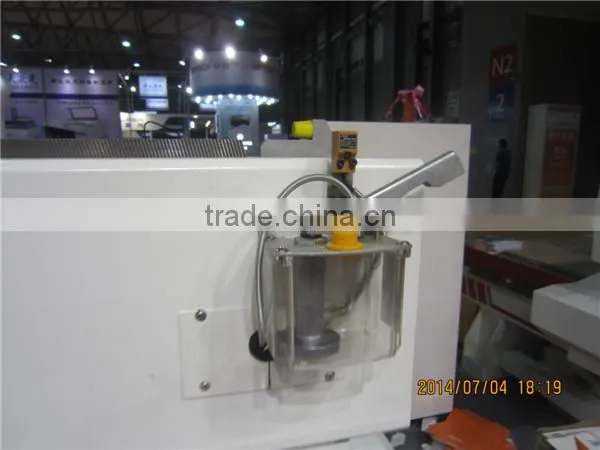

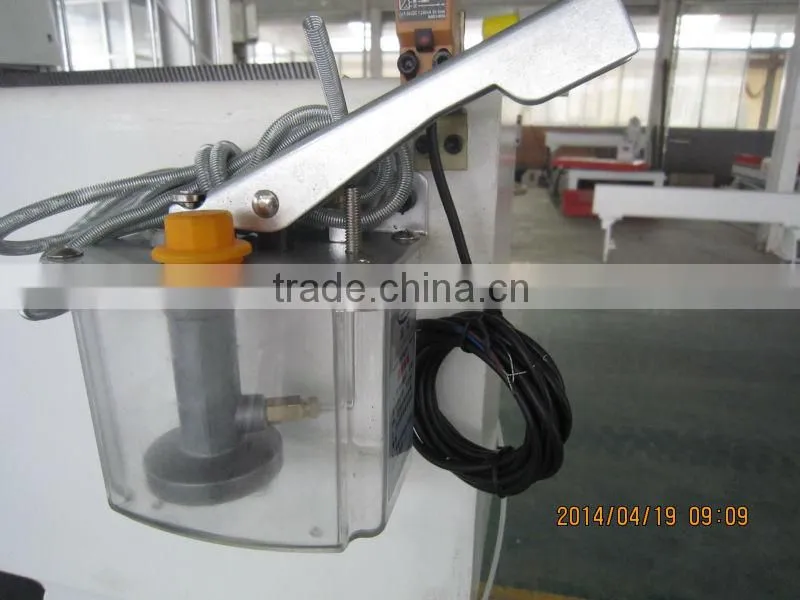

8. Perfect lubricating system makes maintenance much easier.

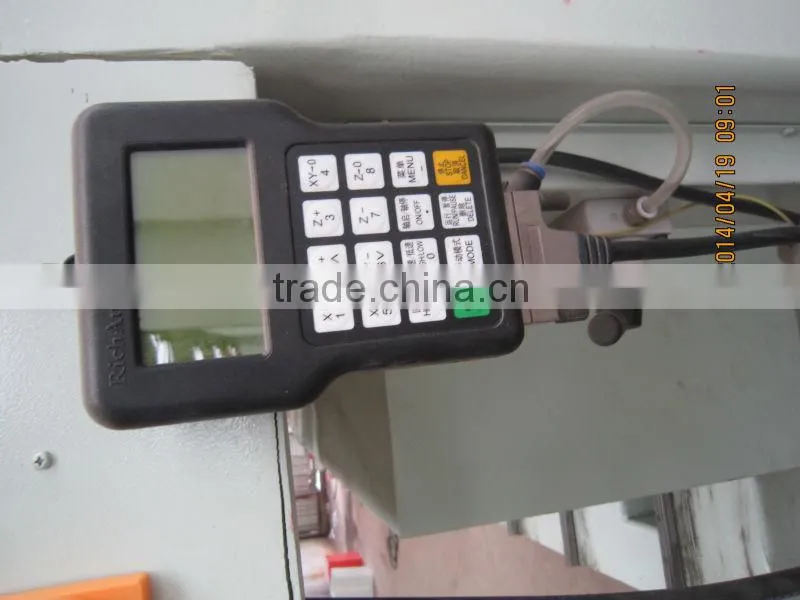

9. Advanced DSP control system makes the operation easier, and the auto tool change system makes the operation safer and convenient.
10. Water proof and dustproof design for the machine protects the transmission parts from broken.
11. Has the function of re-carving after break point and power failure.
12. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software.(such as Mastercam, Type3,Arecam) .
13.Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and speed and precision of curve lines.
14. Excellent compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai etc.
15.Gantry is made of steel, unlike others who adopt aluminum materials. Steel gantry has better stability than aluminum ones.
16.Adopting high-torque stepper motor and driver, with steady working capability and high positioning precision.
Applications:
1.Woodworking: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc
2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,light box mold,stamp,mould.
3.Die industry: copper sculpture,aluminum engrave,metal molds,plastic sheeting,PVC ,etc.
4.Decoration: acrylic, density board, artificial stone, organic glass, soft metals like alumium etc.
Parameters:
NO. |
Description |
Parameters |
1 |
Working area |
1300*2500*200mm |
2 |
Table size |
1480*3000mm |
3 |
Transmission |
X/Y rack and pinion, Z ball screw |
4 |
Table structure |
Vacuum Absorption |
5 |
Spindle power |
4.5KW |
6 |
Spindle speed |
24000rpm/min |
7 |
Travelling speed |
30m/min |
8 |
Working speed |
20m/min |
9 |
Working Delicacy |
0.005mm |
10 |
Repositioning Accuracy |
0.01mm |
11 |
Driving Motor |
Stepper |
12 |
Control System |
DSP/Ncs tudio Control System |
13 |
Command Code |
G Code*.u00*.mmg*.plt |
14 |
Voltage |
AC380/50HZ |
15 |
Software |
Artcam/Type3,other CAD/CAM |

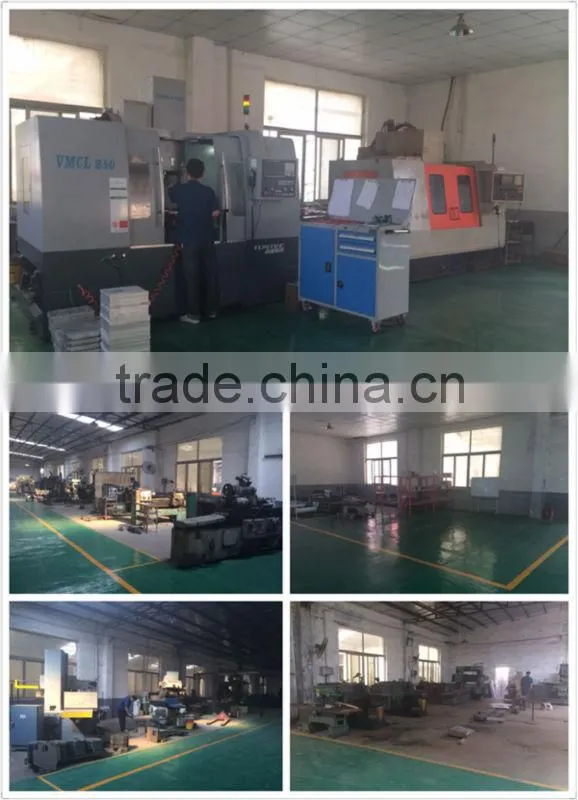

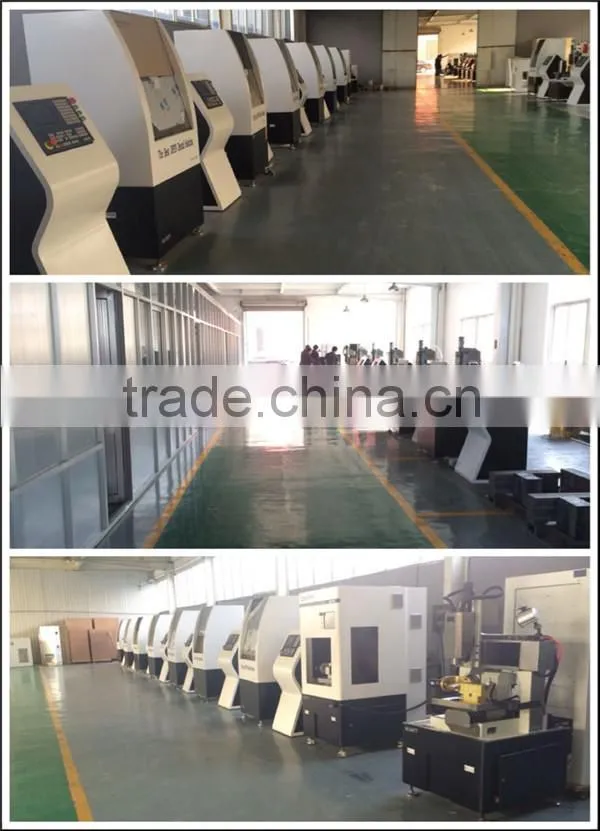

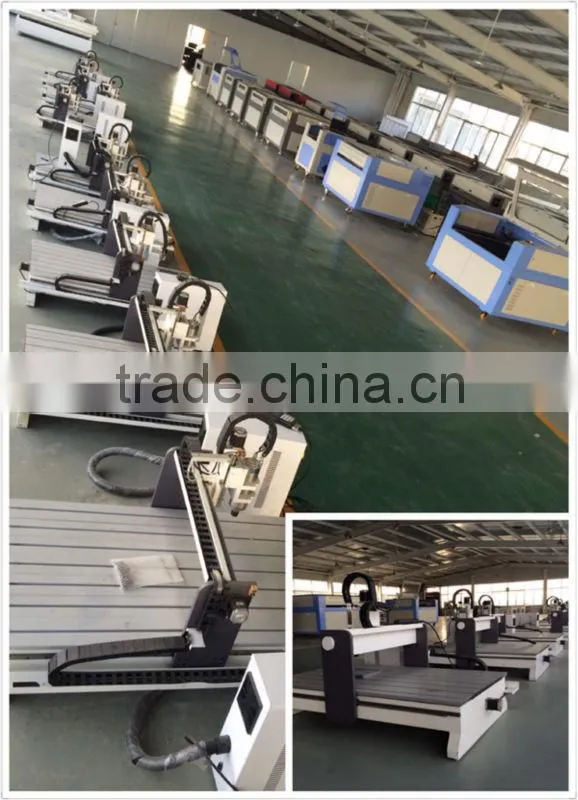

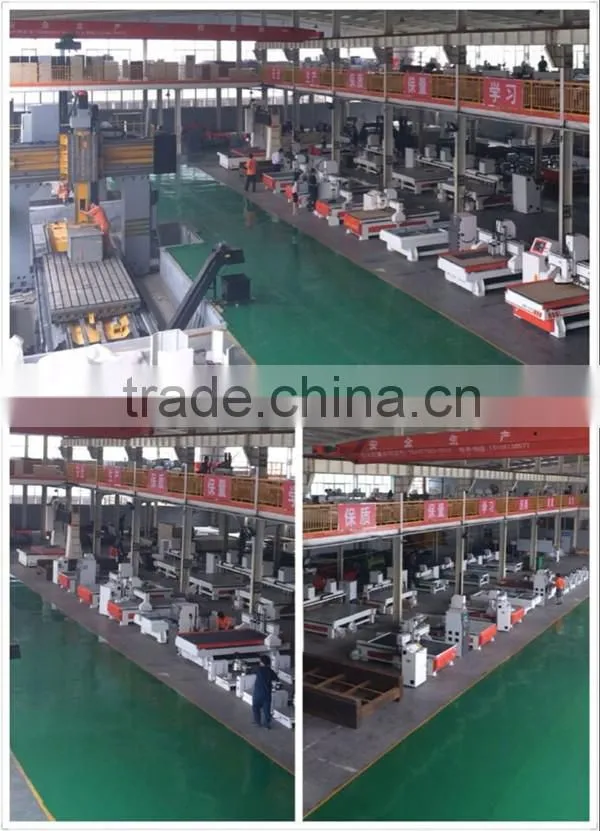

Some photo of our factory
