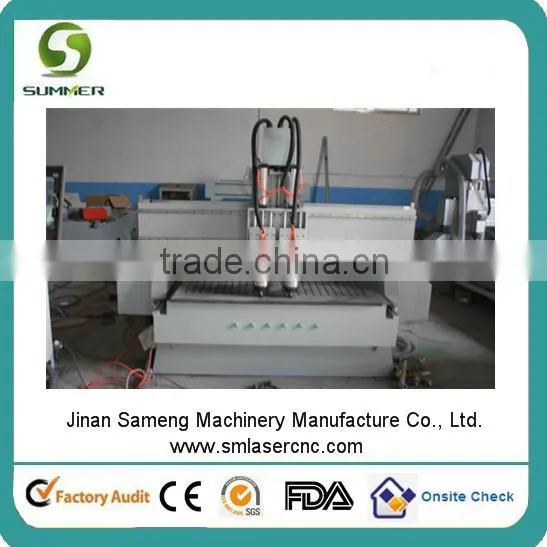

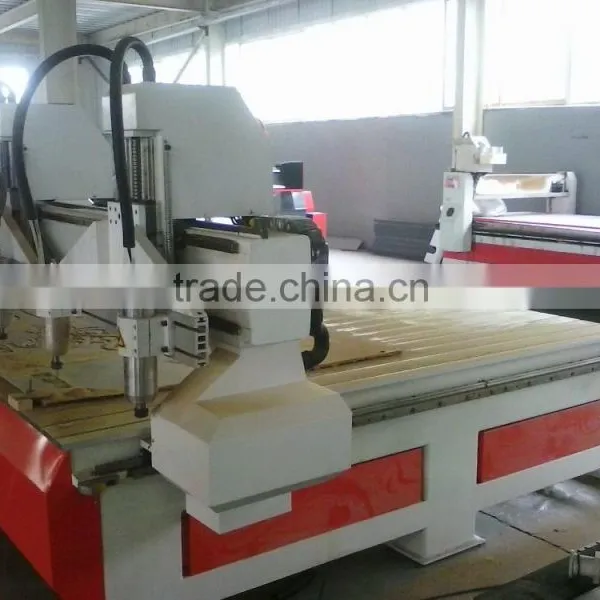

cnc wood machine with two exchanging spindles
Performance:
l The traveling speed can reach 35m/min. high-speed cuting speed can reach 25m/min.
l It adopts advanced DSP NC system,handle-operation,simpler operation,more humanistic design,using unique Intelligent budget rules,making full use of the electrical potential,achieving high-speed processing,curve linear synchronous, and more perfect curves.
l Y axis adopts double motor to drive
l Do welding the machine frame with high- strength steel tube.
l Six subareas vacuum table-board
l Professional and human-based 3D control system
l Optional automatic orientation system, temperature control system
Technical parameter:
1 |
model |
SM1325 |
2 |
X,Y working area |
1300x2500mm |
3 |
Z Max working area |
200mm |
4 |
Table size |
1480x3000mm |
5 |
Working delicacy |
0.01~0.025mm |
6 |
X,Y,Z repositioning Positioning Accuracy |
0.05mm |
7 |
Frame |
Square tube steel structure |
8 |
X,Y,Z Structure |
Square orbit, Gear-wheel driver (Y axis double drivers) |
9 |
Driver |
High power drivers( 35-45meters) |
10 |
Spindle Power Motor |
4.5KW water cooling spindle(1.5~9.0kw) |
11 |
Power (not include the spindle) |
1840W |
12 |
Spindle Speed |
0-24000RPM |
13 |
Drive Motors |
Stepper system |
14 |
Working Voltage |
380v 50Hz/60HZ |
15 |
Command Language |
G cord*.u00*.mmg*plt, HPGL |
16 |
Operating System |
DSP black handle control System(with USB interface) |
17 |
Software Compatability |
Type3 software |
18 |
Running Environment |
Temperature: 0 ~ 45 |
19 |
Surrounding for software |
Windows98/2000/xp |
20 |
Working-holding |
vacuum table(6 zones separately control) & vacuum pump |
21 |
Dust removing plant |
Dust collector |
22 |
Cutters |
22 pcs(include 3D cutter and milling bottom cutter) |
Field of application:
Woodworking,Advertising industry, seal industry, craft and gift, art mould, mould etc.
Applicable material: wood, arylic, double-color board, PVC, EVA, ABS board, stone, imitation stone, metal, Aluminum Mold etc.

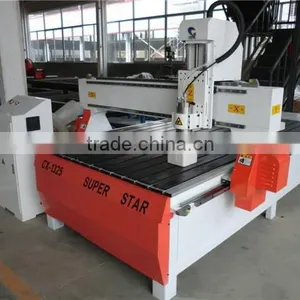

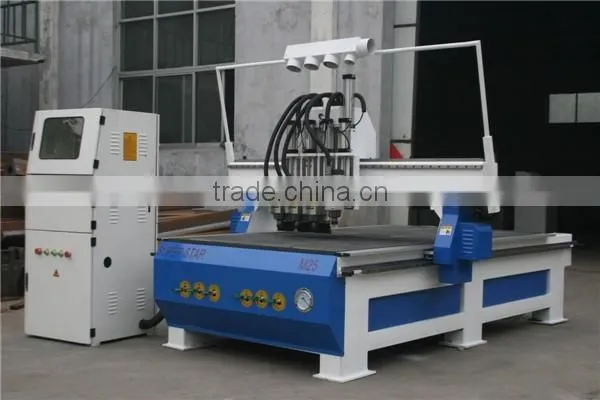

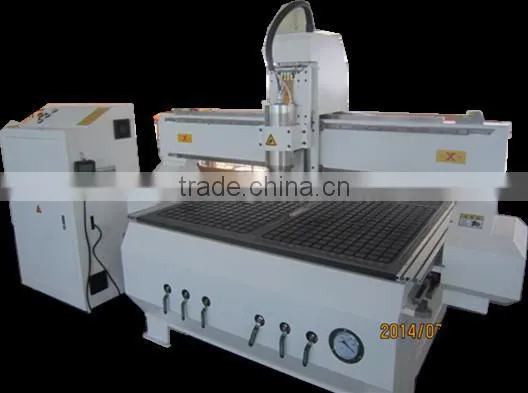

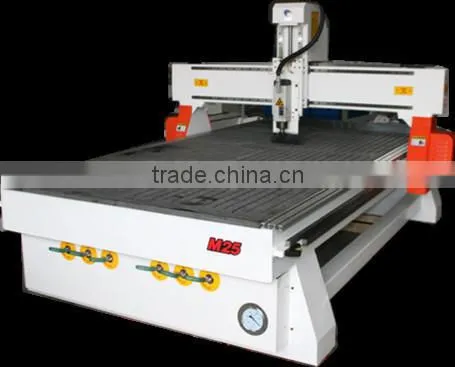

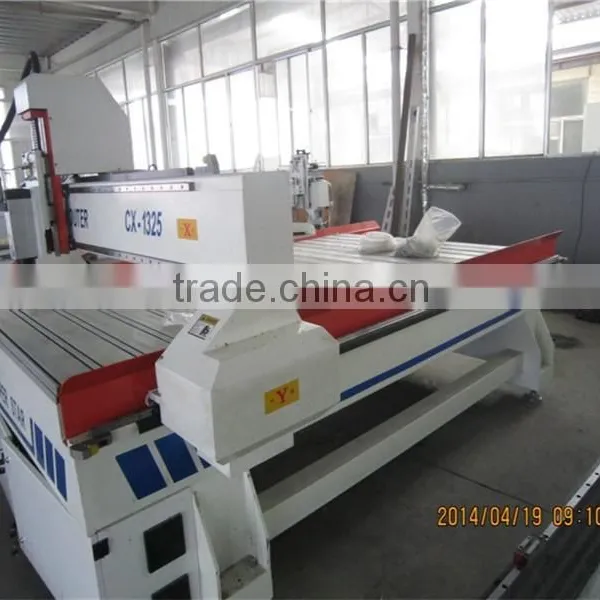

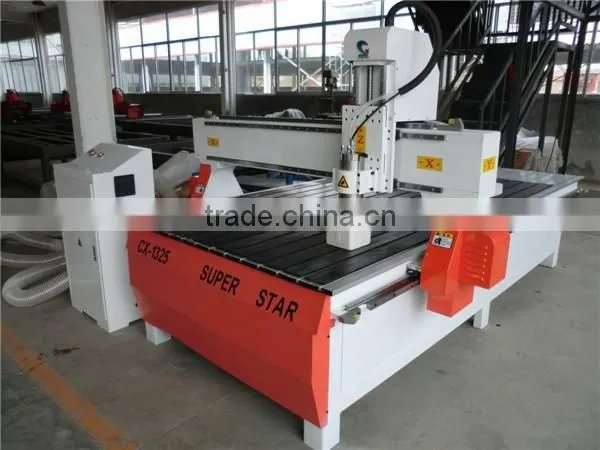

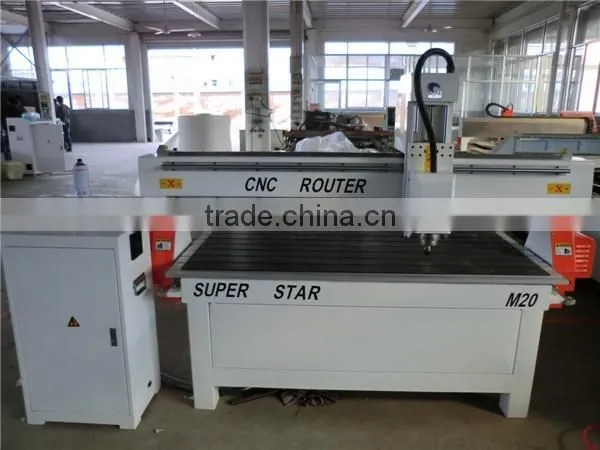

Stanadrd cnc router stype
