cnc machining aluminum
Standard Configuration:
Model |
SM6060 Metal Mould Machine (semi-enclosed type) |
SM-5040 Metal Mould Machine(totally-enclosed type) |
Machine Body |
Casted iron |
Casted iron |
Table structure |
Casted iron table |
Casted iron table |
Table Size |
640*640mm |
520*420mm |
XY engraving area |
600*600mm |
500*400mm |
Z working area |
200mm |
200mm |
Z feeding area |
180mm |
180mm |
XYZ Traveling Positioning Accuracy |
0.01mm |
0.01mm |
XYZ Re-Positioning Accuracy |
0.008 |
0.008 |
Spindle Power |
2.2KW water cooling |
2.2KW water cooling with constant power |
Spindle speed |
24000rpm |
24000rpm |
Ballscrew |
APPA C3 milling ballscrew for XYZ |
APPA C3 milling ballscrew for XYZ |
Guide Rail |
Taiwan TBI high-precision SP Linear square guide |
Taiwan TBI high-precision SP Linear square guide |
Driving motor for XYZ |
China High-speed Stepper motor |
Japan Panasonic Servo Motor |
Operation Control |
High–performance Ncstudio Control system(copy version) |
High–performance Ncstudio Control system(original/genuine version) |
Command language |
G-code, U00, mmg, nc |
G-code, U00, mmg, nc |
Max. rapid travel speed |
12m/min |
12m/min |
Max. working speed |
12m/min |
8m/min |
Working voltage |
AC220V 50HZ |
AC220V 50HZ |
Software |
JDPA Precise engraving software |
JDPA Precise engraving software |
Machine Picture |
|
|
Package |
Fumigation-free wooden box |
Fumigation-free wooden box |
cnc machining aluminum Samples:

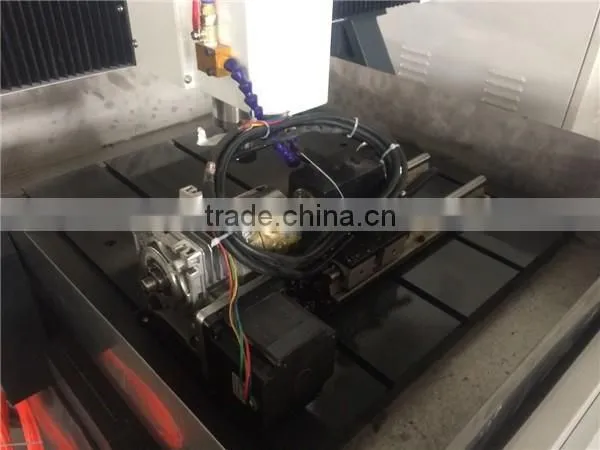

Rotary axis optional for cylinder wood
We use fumigation-free plywood case for metal mould machine, packaging flow is same as wood cnc router
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Jinan Sameng Machinery Manufacture Co., Ltd. Is specialized manufacturer of CNC ROUTER, metal mould machine, cnc wood engraving machine, our products are exported to England, Spain, Brazil, Turkey, America, Asia, Middle East, South Africa etc. and have a good reputation in the industry.
As CE ISO certified manufacturer, we can guarantee a competitive price and excellent quality. We treasure each chance to cooperate with you.
