High quality M25BT 180 degree turning spindle woodworking atc cnc router
Features:
1. Steel structure lathe bed, rack gear transmitting.
2. Four axis adopt TAIWAN linear square orbit.
3. Vacuum suction table.
4. High-power motor,high speed.
5. 4.5kw HSD air cooling spindle, +/-90 Degree turning, 180 degree turning for 3d carving
6. Circle type ATC device optional with 9KW HSD air cooling spindle
Technical specifications
X Working Area |
1300mm |
Y Working Area |
2500mm |
Z Working Area |
450mm |
Table size |
1480x3000mm |
Traveling Positioning Accuracy |
±0.05mm |
Repositioning Positioning Accuracy |
±0.05mm |
X,Y ,Z Structure |
XY gear wheel, Z ball screw. All Axis use Square Guide |
Max. Power Consumption(Without spindle) |
1.84KW |
Max. Rapid Travel Rate |
50000mm/min |
Max. Working Speed |
30000mm/min |
Spindle |
4.5kw air cooled spindle HSD |
Spindle Speed |
0-18000rpm |
Drive Motor |
Yaskawa Servo system |
Frequency Inverter |
Delta Brand |
Command |
G-code*.u00*.mmg*.plt |
Working voltage |
3PH AC220V/50Hz |
Control System |
Syntec |
Guide rail |
25 Square rail (TAIWAN BRAND:HIWIN) |
Control cabinet |
Independent cabinet |
N.W./G.W. |
1200/1600KGS |
Packing Size |
3700 X 2100X 1800MM |

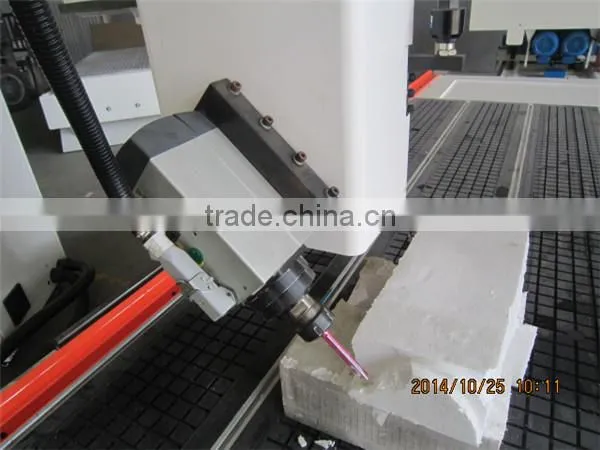

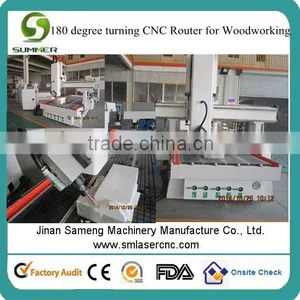

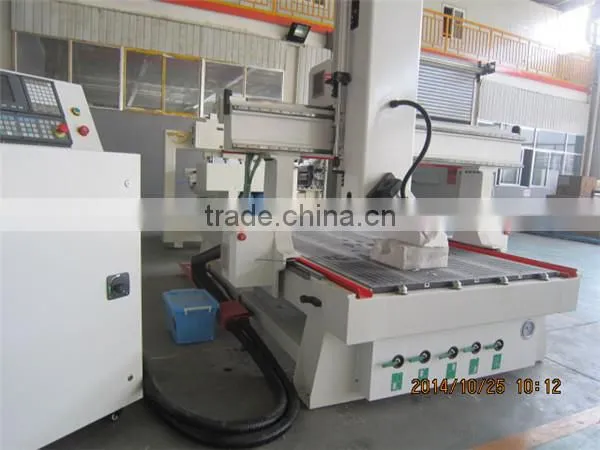

Machine Photos:
Company instruction:
Jinan Sameng Machinery Manufacture Co., Ltd. Is specialized manufacturer of CNC ROUTER, woodworking machine, laser cutting machine,
stone engraving machine, advertising machine, cutting plotter, plasma cutting machine, metal mould/engraving machine, laser engraving machine etc.
Our products are exported to England, Spain, Brazil, Turkey, America, Asia, Middle East, South Africa etc. and have a good reputation in the industry.
As direct manufacturer, we can guarantee a competitive price and excellent quality. We treasure each chance to cooperate with you.
Our team:
1.We have 10 years producing experience, and keep R&D new product for market demand.
2.All workers have many years assembling experience, the are proficient with producing, so we can
deliver the machine to you in time.
3.Sales persons and technical person are careful and patient, they can answer you any technical questions
about machine, documents also will be prepared carefully and detailed.
4.we will provide you best after-sale service, every after-sales person has passport, if there is any big
problem, we will send some person to your factory for maintenance in time.
Further infos,pls do not hesitate to contact me,
hope to build cooperation with you.24hours service,
your inquiry will be replied very soon.
