Home > Consumer Electronics > Audio & Sets > Professional Audio > 2010v Pro Audio

2010v Pro Audio

Name: 2010v Pro Audio
Brand: Pacrim
SKU: 112678927
Availability: InStock

Negotiable MOQ: 8 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Pacrim

Model Number:

Contact Supplier Request Quote Chat Now

Guangzhou AD Audio Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Pacrim

Model Number L5

2010v Pro audio

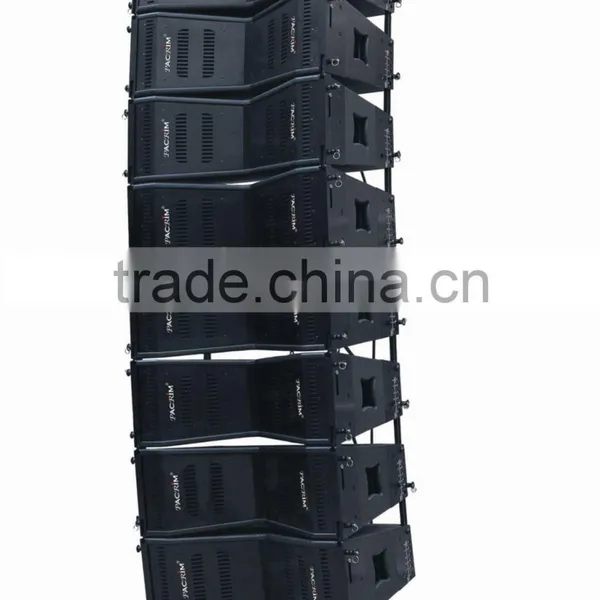

L-5 is a powerful 2-way vertical compact Line Array System. It is composed of two 10 inch LF drivers with VC 65mm, and one HF driver installed in a directivity horn, which configured as 120°dispersion with the phase plug on the LF. The sound pressure can be concentrated directivity and reduce the distortion between the MID and HF to the minimum. The features of this system are with very clear, long-throw, soft and naturally voice. The speaker between each other can be adjusted the angle from 0° 10°,and can be flied in the way according to the real situation. The enclosure is built with high quality piano plywood with 13 lays, and coated with durable protective water resistant paint, which can be outdoor using. This system is suitable for Small-medium concerts Touring, Stadium, Theater, Church, Disco club etc.

L-5B is a powerful subwoofer system which is designed for working with L-5. It is composed of two 15 inch high efficient LF drivers with VC 100mm, which is installed in a reflex cabin for much higher sensitivity and deeper bass.

MF rated power	600 W ( RMS )
MF program power	1200 W ( Peak )
HF rated power	160 W ( RMS )
HF program power	320 W ( Peak )
Components	2x 10"MF Neo,2 x 1.75"HF
Connections	2x Speakon-socket(4-pin)
MF Sensitivity(1W/m)	104dB
Rated Maximum SPL(1m)	128dB peak,@1m
HF Sensitivity(1W/m)	114dB
Rated Maximum SPL(1m)	132dB peak,@1m
Impedance	MF 8 Ohm/ HF 16 Ohm
Frequency range	70Hz ~ 20KHz
Colors	Black
Dispersion angle(1 KHz)	120°x 10°(V x H)
Weight	37Kg
Shipping Size	0.23CBM/PC
Dimensions	998x480x328mm

L5B

Rated power	1000 W ( RMS )
Program power	2000 W (Peak)
Components	2x15"Woofer
Connections	3xSpeakon-sockets (4-pin) 1xSpeaker-sockets (8-pin)
Sensitivity (1 W/m)	110dB
Rated Maximum SPL	136dB peak,@1m
Impedance	4 Ohm
Frequency range	45 Hz~250Hz
Colors	Black
Weight	66Kg
Shipping Size	0.47CBM/PC
Dimensions(WxDxH)	998x750x480mm

² Quick response: Reply your inquiry within 12 working hours.

² Detailed recommendations: Experienced staffs answer all your questions and recommend related products in fluent

English.

² Insurance: Special discount and protection of sales provided to our distributor.

² Latest products news:The newest products and updates will be noted.

Guangzhou AD Audio Co.,Ltd is a company engaged in designing and manufacturing professional loud speakers and amplifiers.Being founded in 1998,the company started from a small workshop of 5 people. After years of efforts, the company has developed into a major loud speaker and amplifier manufacturer in this industry. The adhere to the " quality first, users first" purpose, strict quality management, continuous learning advanced management experience, improve the quality of products, firstclass service.

With almost 20 years of experience, our engineers develop high performance products for the proaudio market.We use mostly European drivers and only the best Chinese driver that had been approved good and stable enough,to make sure extraordinary reliability and highest quality of our products.Latest technologies in development and production enable manufacturing and pro-cessing at the highest level.

Q1:We`d like to print our own design and logo on the products? Can you make it?
