Help CenterPro Audio Admark Mini Active Line Array
Related Products

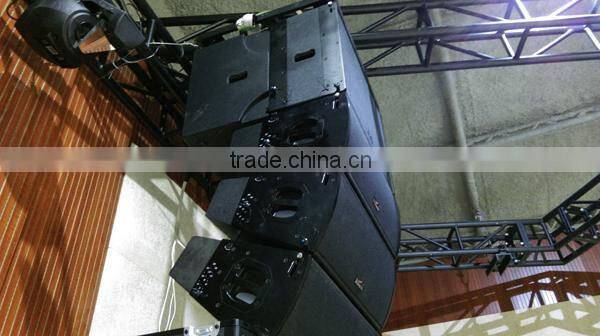

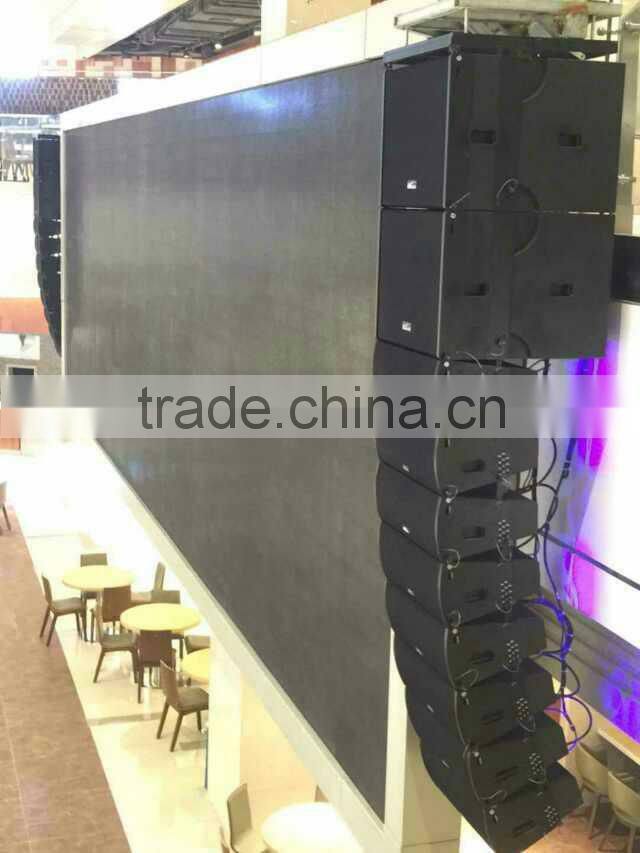

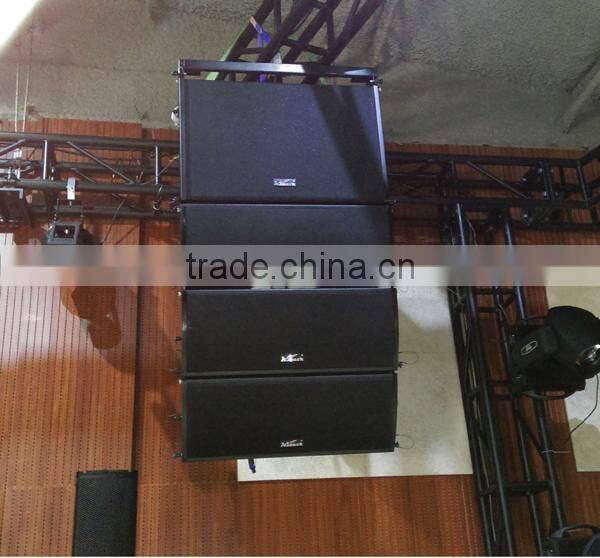

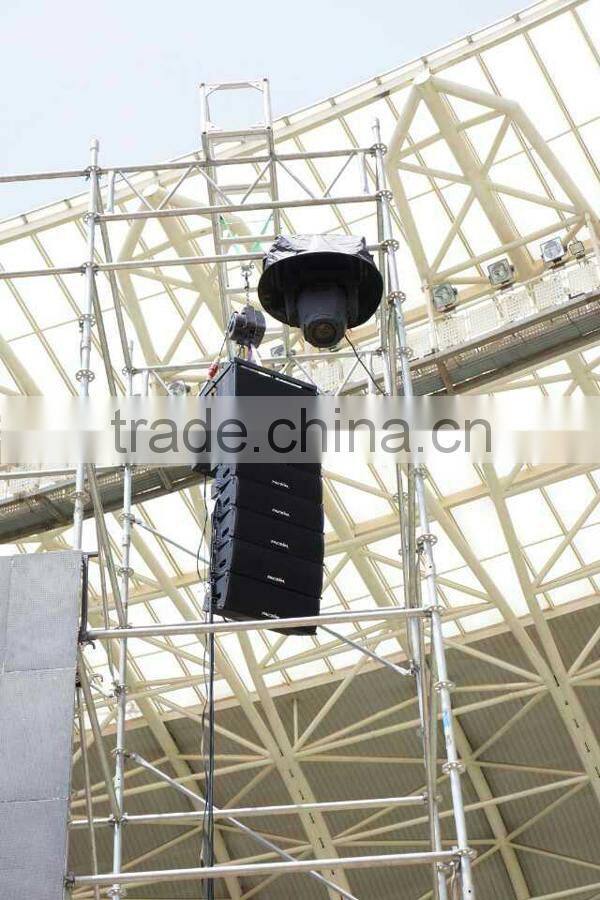

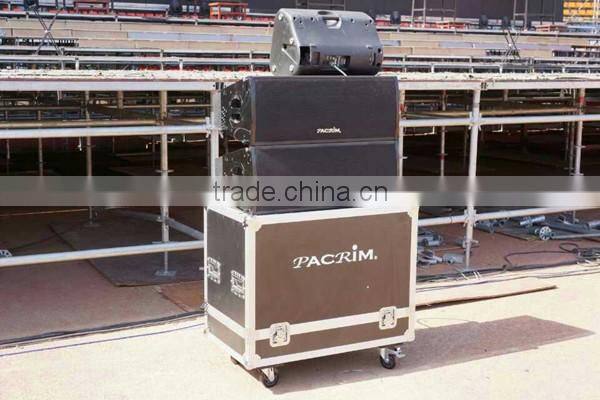

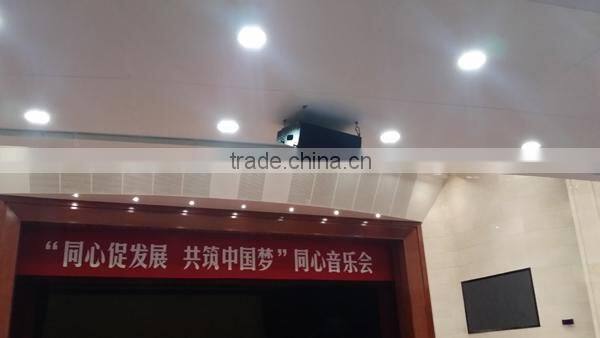

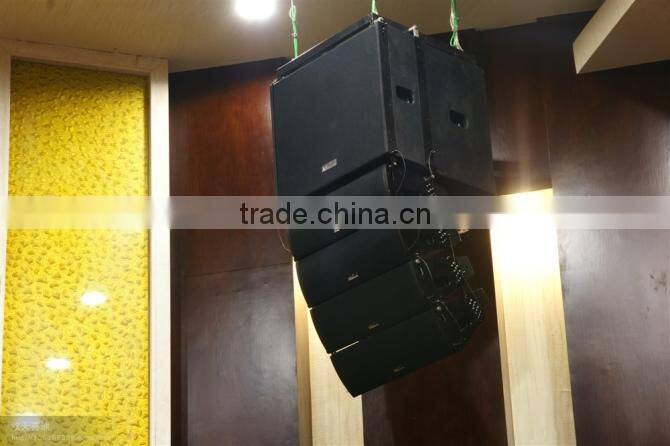

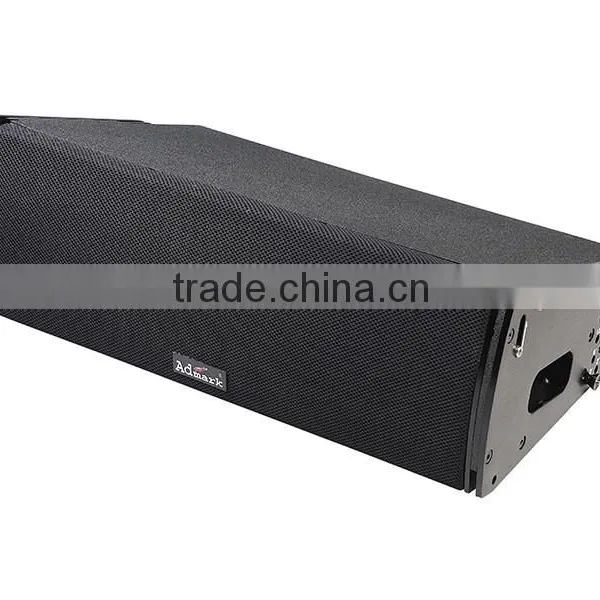

A-6 is a high quality top grade Hi & Mid mini line array speaker. The speaker use the dual 6.5 NEO Mid driver,and the Hi is the 1.75 NEO driver installed in a directivity horn, which can make very good wavefront. The features of this speaker is outstanding Mini size cabinet design,light weight, easy-installation,high sensitivity. It can be connected from 0°-20°according the angle.
It works with A-18 as a active three-way system, This system is suitalbe for Small concerts Touring,Stadium,Theater, Church,Disco club ect.
A-6
MF rated power: 300 W ( AES )
MF program power: 600 W
HF rated power: 75 W ( AES )
HF program power: 150W ( AES)
Components: 2x 6.5"MF Neo,1 x 1.75"HF Neo
Connections: 2x Speakon-socket(4-pin)
MF Sensitivity(1W/m): 100dB
Rated Maximum SPL(1m): 123dB peak,@1m
HF Sensitivity(1W/m): 110dB
Rated Maximum SPL(1m): 132dB peak,@1m
Impedance: MF 16 Ohm/ HF 16 Ohm
Frequency range: 150Hz ~ 20KHz
Colors: Black/white
Dispersion angle(1 KHz): 120°x 20°(V x H)
Weight: 12Kg
Dimensions:573x360x192mm

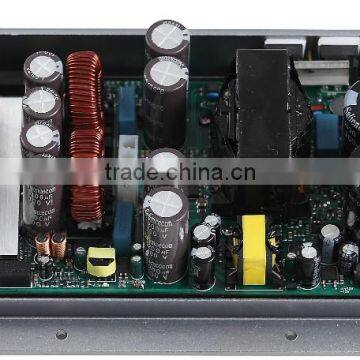

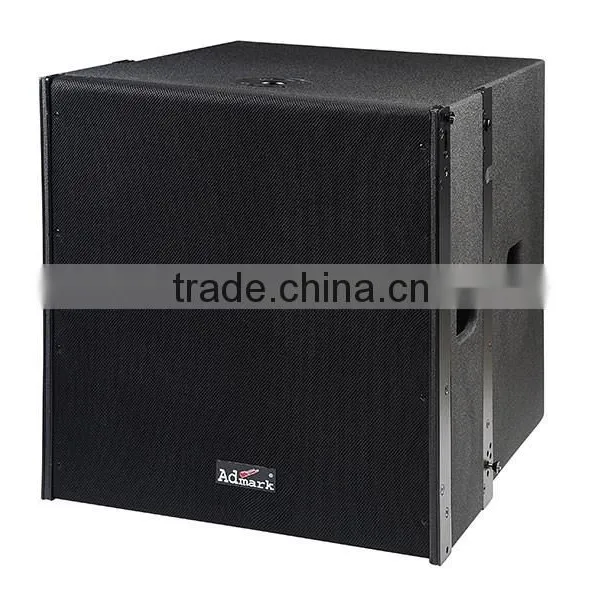

A-18 is designed for the A6 as a woofer.It is composed of one 15 NEO driver which voice coil is the VC100mm and a 3-ways 2900W amplifier.This amplifier can power 4pcs A-6&1pc A-18.

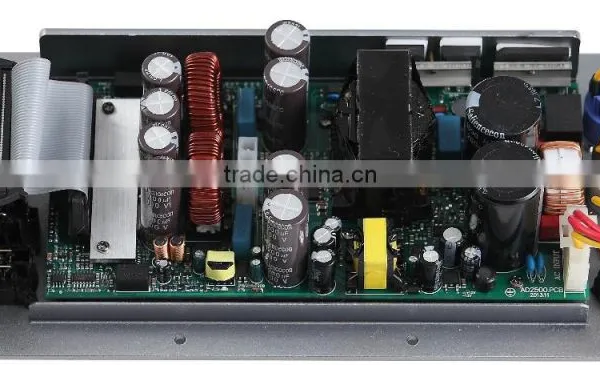

The complete electrocircuit controll system include the 0~24db range Phase switch each channel,Crossover and Passive filter,EQ .So that it can perform high and reliable sound pressure.The application of the switch power makes the loudspeaker lighter.You also can connect with the PC in order to controll the system in long distance.
A-18
Rated power: 500W ( RMS )
Program power: 1000 W
Components: 15"Woofer Neo
Sensitivity (1 W/m): 100dB
Rated Maximum SPL: 124dB peak,@1m
Frequency range: 150 Hz~20KHz
Input Impedance: 20K Ohm
Input Sensitivity:0.775v
Output power: 400W+1500W+1000W /4 ohm
Distortion: 0.05%
Damping Factor:≥ 250
Power Connectors:Power Con
Operating Voltage:100V,120V,220V,240V,50Hz
Colors:Black/White
Net Weight:49kg
Dimensions(WxDxH mm):569x620x580
