China Hotsale Agricultural irrigation solar water pump system

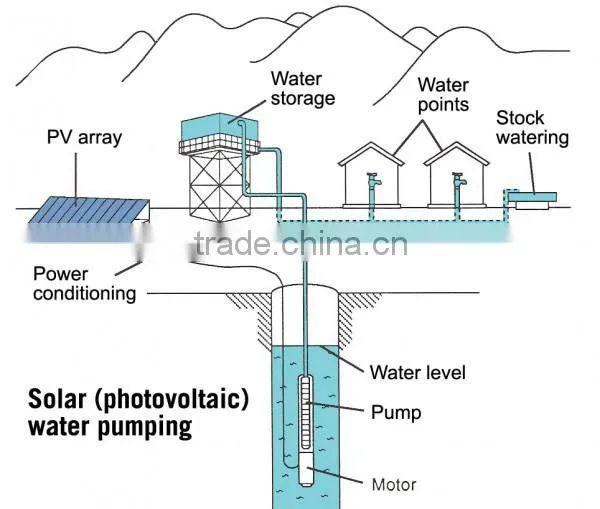

DC Solar pumping system consists of solar pumping Controller, pump and PV array. Consider that storing water is more efficient than storing electricity; the system is designed to directly drive the pump without battery which can reduce the construction and operating cost and routine maintenance effectively.
The PV array consists of multiple solar panels connected in series/parallel, which can supply the whole system as power source by converting the absorbed solar radiation energy to the electrical energy.
1. Solar Water Pumping System Introduction
1,Solar Cell Array
The solar array, an aggregation of many solar modules connected in series and in parallel, absorbs sunlight radiation and converts it into electrical energy, providing dynamical power for the whole system.
2,Solar Pumping Inverter
The pumping inverter controls and adjusts the system operation and converts the DC produced by the solar cell array into AC to drive the pump, and adjusts the output frequency in real-time according to the variation of sunlight intensity to realize the maximum power point tracking (MPPT). Advantages are as follows:
1). Patented dynamic VI MPPT algorithm ensuring swift response and stable operation
2). Digital control, automatic operation, data collection and storage for up to 8 years, etc; 98% conversion efficiency, complete protection
3). The system is free of any energy storage devices. Instead, the system stores water. As a result, reliability is improved dramatically comparing to systems requiring energy storage (battery) and at the same time greatly reducing construction and maintenance costs
3,Pump
Any three-phase pump is suitable for solar AC pumping system, pump powered by solar cell arrays draws water from the deep wells or rivers and lakes and pours into the storage tank or reservoir, or directly connects the irrigation system, fountain system, etc. According to the actual system demand and installation condition, different types of pumps such as centrifugal pump, axial flow pump, mixed flow pump or deep well pump can be used.
Appliance
Drinking water in daily life
when the sun shines, plus water storage, can often provide all that is require med for water supply."
High quality and Cheap price solar water pump for agriculture
Advantage
1, High efficiency and reliability;
2, DC motor, low maintenance, 10 years of life;
3, Environmental materials;
4, Operate automatically, no need caretaker;
5, Protected from dry operation high power solar water pump
Characteristics
Solar pump, solar water pump, solar submersible pump, solar irrigation pump, solar DC pump, solar powered pump:
1. Solar power is the most clean and long lasting energy in the world, and it is everywhere. The solar water pump will work anytime and anywhere there is sunlight. Our pumps will work every day without complain.
2. It is economic to use solar water pump, one time investment, no further electricity bills will bother you.
3. Solar water pumps can be put into deep wells where no electricity can reach; the deepest for our solar pumps to reach is 229 meters.
4. Easy to install. Connect the solar pump with controller and solar panels, it will work automatically, no caretakers needed
.5. Long lifespan, 25 yeas life for solar panels, 10 years for solar water pump, and 8 ye airs for solar controller.
Specifications
1. Solar Panel for solar pump
1) 17% High Efficient
2) 10 years warrant
3) 25 years life
4) A leek silicon
5) Surface Maximum Load Capacity:2400 Pa
0.55KW solar water pump system
components |
specifications |
||
Solar Panels |
Working Power |
110W*10 |
|
Working Voltage |
36V |
||
Working Current |
3.05A |
||
Weight |
8.36kg |
||
Size |
670*1130*30mm/PC |
||
Pump Controller |
Model |
SUP3-K75 |
|
Working Power |
750W |
||
MAX Output Current |
5A |
||
Output Frequency |
0-50HZ three phase |
||
Output Voltage |
220V AC |
||
Input Voltage |
100-430 |
||
MPPT Voltage |
200-400 |
||
Max Working Efficiency |
96.80% |
||
Working Temperature |
-10℃ to +50℃ |
||
Size |
320*270*130mm |
||
Water Pump |
Model |
KYH550010 |
|
Working Power |
0.55KW |
||
Flow/head (best use scope)m³/h | |||
0.4m³/72m |
1m³/67m |
2.0m³/42m |
|
Panel Bracket |
C channel steel + composite parts + support base |
||
Applications
1. Irrigation
"A solar water pump is an ideal tool for farmers. They can move or transfer water from nearby sources such as lake or rivers to irrigate the crops using solar water pump. Farmers and avid gardeners will be able to save on their irrigation budget for using solar water pump, instead of fuel-powered pumps."
2. Livestock
"Ranch owners can also benefit a lot from using solar water pump. They can provide water for their animals in a cost-effective and easy way. The solar water pump can generate water from deep wells, streams, pond, and even pipelines."
3. Garden Fountains
"Aside from functional purposes, a solar water pump can also be used as a cost-effective way to generate water for your garden fountains. Many household owners use their water pumps as fountains which give the house a different yet refreshing ambiance. You will be able to save a huge amount of energy especially if you want your water fountains work for several hours a day. In fact, you can turn it on continuously and not worry about paying huge power bills."
4. Home Supply
"Many environmentalists agree that using solar water pump at home is one of the best ways to go “green.” For domestic water use, a booster pump should be used especially if the water source is shallow."
5. Large Scale Watering System for Commercial Establishments
"Solar water pump is now also being used in huge cities. Various large establishments such as hotels, apartments,condominiums and even government buildings implement solar water pumps in order to save on their power expenses."
6. Water Treatment Systems
"In areas where the quality of water is very poor, government and private companies use water purification process which requires water pumping. Solar water pumps can be used as a cost-effective substitute for fuel-powered pumping machines. "
Warranty:
We provide 1 year warranty for all products.
Payment:
We accept payment via TT (Bank transfer),Western Union, PayPal, Escrow.
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, Fedex, EMS and Air mail.
