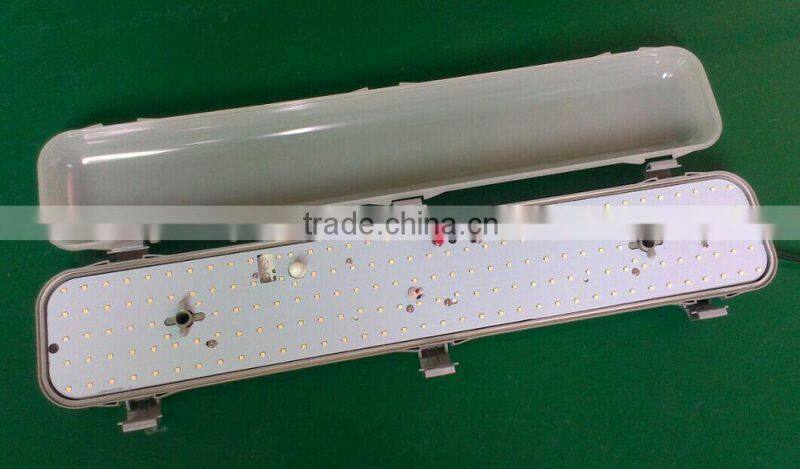

IP65 vapourproof LED linear bar, 20W, 600mm emergency&sensor functions
1, Features:
1, Environmental friendly and energy-saving;
2, No UV or IR radiation;
3, SMD LED board, high bright ;
4, High diffusion PC diffuser, bright, soft and even light;
5, Microwave sensor better than PIR sensor and light and sound sensor in sensitivity;
6, 100-25% sensor: Light will be automatically powered on full light when people move into the detected area,
and auto dims to 25% of full light (standby light) after 8-300 seconds(adjustable) time delay;
7. Wide detected range: >180 degree, 0.5 - 8meters;
8.(Optional) Maintained emergency, 3 hours duration;
9, High temperature Ni-MH battery;
10, IP65 rating, water proof;
11, Warranty: 3 years;
12, CE, SAA compliant.
2, Specifications:
| Input voltage ( 50/60Hz) | AC100 -240V | ||
| Power consumption | 20W | ||
| PF | > 0.9 | ||
| LED Driver output voltage | 36V DC | ||
| LED Driver output current | 500mA ±25mA | ||
| Light source | 2835 SMD LED | ||
| CCT | 3000K /4000K /6000K | ||
| CRI | Ra> 80 | ||
| Flux luminous | 1700 -1800LM | ||
| Housing material | Polycarbonate base,milky PC diffuser | ||
| Life Span | Up to 50000 hours | ||
| Installation way | Hanging, ceiling/wall mounted | ||
| Operation temperature | -20degC to 40degC | ||
| Dimension | 667mm*118mm*92mm | ||
| Package | 692 x166x110mm | ||
| Net Weight | 1.3KG | ||
|
| |||
Emergency version: |
| |||
Type | Maintained |
| ||
Battery(High-Temperature) | 9.6V 3.2AH Ni-MH rechargeable |
| ||
Emergency output | 30% nominal power |
| ||
Emergency duration | >3 Hours |
| ||
Charge time | < 12Hours |
| ||
LED indication | Red: charging; Green: fully charged; Yellow: battery fault or disconnected |
| ||
Test button
| AC power on: Push and hold the button to enter emergency mode; release button to come back AC power mode |
| ||
|
|
| ||
Microwave Sensor dimmable version: |
| |||
Sensor range | 180 degree; 0.5 - 8M(adjustable) |
| ||
Sensing interval | 10s to 5min max (adjustable) |
| ||
Sensing interval output | 25% nominal power (100-25%) |
| ||
3, Applications:
widely used in stairwell, corridor, railway station, car park, museum etc.
