BRAND NEW Advance Marine Gearbox HC 16A suitable for suitable for small fishing transport and rescue boats
- 1000 Piece / Pieces per Month
- any port in China
- T/T Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | ADVANCE | Model Number: | GWS |
Gearing Arrangement: | Helical | Output Torque: | BASE ON THE RATIO | Rated Power: | max 35hp |
Input Speed: | max 2000rpm | Output Speed: | BASE ON THE RATIO |
Product Description
BRAND NEW Advance Marine Gearbox HC 16A suitable for suitable for small fishing transport and rescue boats
Description

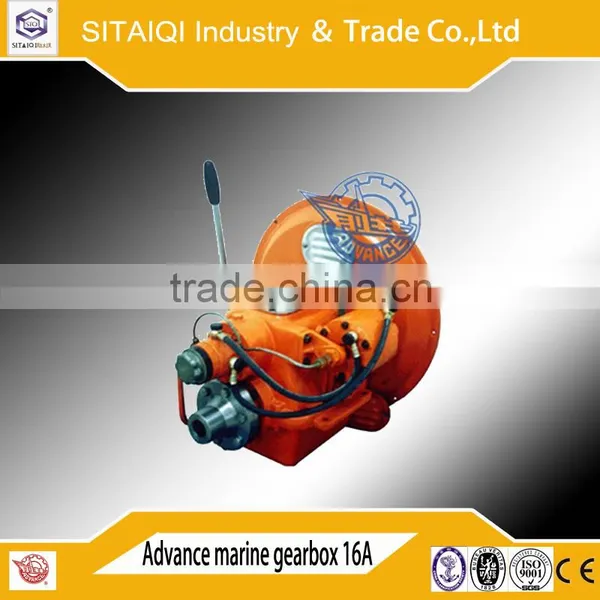

Marine Gearbox 16A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is mechanically controlled, featuring in small in volume and light in weight.
Main data
Input speed | 1000-2000r/min | ||
Reduction ratio | 2.07,2.48,2.95,3.35,3.83 | Trans. capacity | 0.012kw/r/min |
Control way | Manually | ||
Rated thrust | 3.5KN | ||
Center distance | 135mm | ||
L×W×H | 422×325×563mm | ||
Net weight | 84kg | ||
Flywheel | 2105C 395,SAE11.5,10 | ||
Bell housing | 2105C 395,SAE3,4 |
Description
GWS-series marine gearbox is designed of one-stage speed reduction, input and output being vertically offset and rotating in contrary direction, possessing functions of ahead and astern, clutching & de-clutching and speed reduction. It features in compact in structure, small in volume low in energy consumption and smooth in operation.
GWS-series marine gearbox is widely used in transport, engineering and fishery boats.
Model | Input Speed (r/min) | Reduction Ratio (i) | Trans. Capacity (kW/r·min-1) | Rated Thrust (kN) | Net Weight (kg) |
GWS28.30 | 400-1800 | 2.0 | 0.397 | 80 | 1230 |
2.5566 | |||||
3.0 | |||||
3.5714 | |||||
4.0526 | |||||
GWS30.32 | 400-1800 | 1.9688 | 0.537 | 100 | 1460 |
2.5185 | |||||
2.9583 | |||||
3.5238 | |||||
4.0 | |||||
GWS32.35 | 400-1800 | 2.0 | 0.684 | 113 | 2250 |
2.5556 | |||||
3.0 | |||||
3.5714 | |||||
4.0526 | |||||
GWS32.41 | 400-1800 | 4~5.3 | 0.684 | 113 |
|
GWS36.39 | 400-1800 | 2.0323 | 0.919 | 140 | 2450 |
2.4815 | |||||
2.9167 | |||||
3.4762 | |||||
3.9474 | |||||
GWS39.41 | 400-1600 | 2.0 | 1.169 | 175 | 3230 |
2.5357 | |||||
2.960 | |||||
3.50 | |||||
3.95 | |||||
GWS39.46 | 400-1600 | 4.9474 | 1.169 | 175 |
|
GWS42.45 | 400-1600 | 1.9730 | 1.573 | 220 | 3960 |
2.5484 | |||||
2.9286 | |||||
3.5833 | |||||
4.0 | |||||
GWS45.49 | 400-1400 | 2.0323 | 2.051 | 270 | 5280 |
2.4815 | |||||
3.0870 | |||||
3.4762 | |||||
3.9474 | |||||
GWS49.54 | 400-1200 | 1.9714 | 2.647 | 284 | 7900 |
2.4667 | |||||
3.0 | |||||
3.5217 | |||||
3.9524 | |||||
GWS49.61 | 400-1200 | 4~4.6 | 2.647 | 284 |
|
GWS52.59 | 400-1200 | 1.9714 | 3.448 | 300 | 9800 |
2.4667 | |||||
3.0 | |||||
3.5217 | |||||
3.9524 | |||||
GWS52.62 | 400-1200 | 3.5 | 3.64 | 300 |
|
4 | |||||
GWS60.66 | 400-1200 | 2.0 | 4.625 | 450 | 15000 |
2.536 | |||||
2.96 | |||||
3.5 | |||||
3.95 | |||||
GWS60.78 | 400-1200 | 4~5 | 4.625 | 450 |
|
GWS66.75 | 300-900 | 1.9714 | 6.99 | 700 | 17500 |
2.4667 | |||||
3.0 | |||||
3.5217 | |||||
3.9524 | |||||
GWS70.76 | 300-900 | 1.941 | 8.111 | 750 | 20000 |
Marine Gearbox HCT1200 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.
Main data
Input speed | 700-1600r/min | ||
Reduction ratio | 5.05,5.60,5.98,6.39, 6.85,7.35,7.90 | Trans. capacity | 0.93kw/r/min |
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 150KN | ||
Center distance | 500mm | ||
L×W×H | 1188*1350*1547mm | ||
Net weight | 3050kg | ||
Flywheel | Depend on engine flywheel | ||
Bell housing | SAE00 0 |
Application
Marine Gearbox HCT1200 is suitable for fishing, tug and various engineering boats.
Specifcation
Model:HCD600A |
|
Speed input range(rpm) | 1000-2100 |
Ratio(i) | 4.18 4.43 4.7 5 5.44 5.71 |
Rated thrust of propeller | 90KN |
Center distance | 415mm |
Shell | SAE 0 0 |
Flywheel | SAE 21 18 16 14 |
Operation options | Mechanical,electrical remote control(suggest to use mechanical)
|
L*W*H | 745*1094*1271mm |
Net weight | 1550Kg |
