Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > Advance Marine Gearbox 120B is Suitable for Small Fishing Transport Tug and Passenger Boats

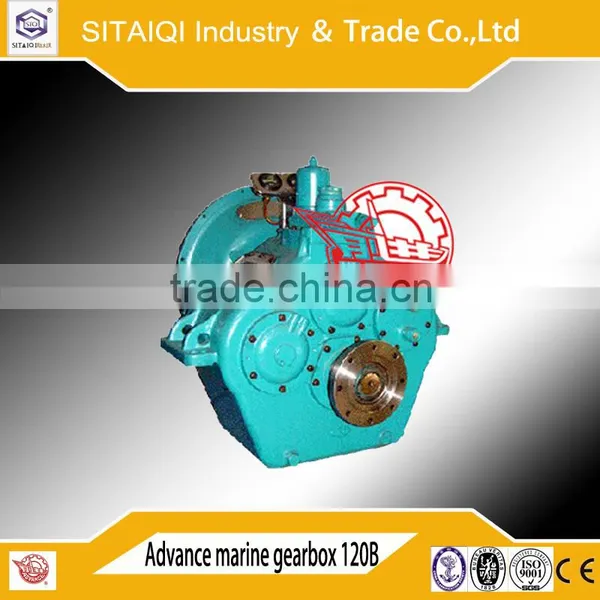

Advance Marine Gearbox 120B is Suitable for Small Fishing Transport Tug and Passenger Boats

Name: Advance Marine Gearbox 120B is Suitable for Small Fishing Transport Tug and Passenger Boats
Brand: ADVANCE
SKU: 112662565
Availability: InStock

Advance Marine Gearbox 120B is Suitable for Small Fishing Transport Tug and Passenger Boats thumbnail-1

Advance Marine Gearbox 120B is Suitable for Small Fishing Transport Tug and Passenger Boats thumbnail-2

Advance Marine Gearbox 120B is Suitable for Small Fishing Transport Tug and Passenger Boats photo-1

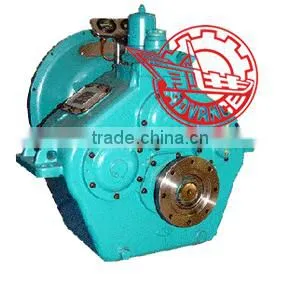

Advance Marine Gearbox 120B is Suitable for Small Fishing Transport Tug and Passenger Boats photo-2

US$ 1,000 - 5,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

ADVANCE

Model Number:

HC120B

Contact Supplier Request Quote Chat Now

Xiamen Sitaiqi Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name ADVANCE

Model Number HC120B

Gearing Arrangement Helical

Output Torque BASE ON THE RATIO

Rated Power max 80hp

Input Speed max 1800rpm

Output Speed BASE ON THE RATIO

Advance Marine Gearbox 120B is suitable for small fishing transport tug and passenger boats

escription

Marine Gearbox 120B possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, light in weight and easy in dismantle & reassemble and maintain.

Main data

Input speed	750-1800r/min
Reduction ratio	2.03,2.81	Trans. capacity	0.088kw/r/min
	3.73		0.044kw/r/min
Control way	Push-and-pull flexible shaft, electrically
Rated thrust	25KN
Center distance	190mm
L×W×H	605×744×770mm
Net weight	400kg
Flywheel	6135Ca,4120,SAE14
Bell housing	6135Ca,4120,SAE1

Basic Info.

Model NO.:MA125

Application:Marine

Material:Stainless Steel

Hardness:Hardened

Manipulate Way:Semi-Automatic Manipulation

Manufacturing Method:Cast Gear

Toothed Portion Shape:Bevel Wheel

Changes Way:Stepless

Type:Circular Gear

Model:Ma125

Engine Speed Range:1500-3000rpm

Reduction Ratio:2.03 2.46 3.04 3.57 4.05 4.39 4.7

Net Weight:115kg

Control Type:Push-Pull Flexible Shaft

Flywheel:SAE 11.5inch, 10inch

Bell/Flywheel Housing:SAE 3#, 4#, 2#

Rated Thrust Torque:5.5kn

Center Distance:125mm

Overall Dimension:291*454*485mm

Export Markets:Global

Ratio	1.23	1.28	1.62	2.07	2.52	2.87
Ratio(hp/rpm)	0.123				0.111	0.099

Hangzhou Advance Gearbox Group Co., Ltd. (Hangzhou Gearbox Works P. R. China) founed in 1960, is the largest professional manufacturer of transmission and powder metallurgic products in China. The company is situated at the south bank of Qiantang River, covering an area of 520, 000 m2, staffing around 3000 members, of whom over 800 are professional technicians. And our total assets is 1.42 billion RMB. The company has 10 factories, 3 joint ventures and 6 domestic or oversea business firms, two institutes( Hangzhou Marine Gearbox Institute and Hangzhou Powder Metallurgic Institute at ministry level), and professional institutes of engineering, cars and testing.
