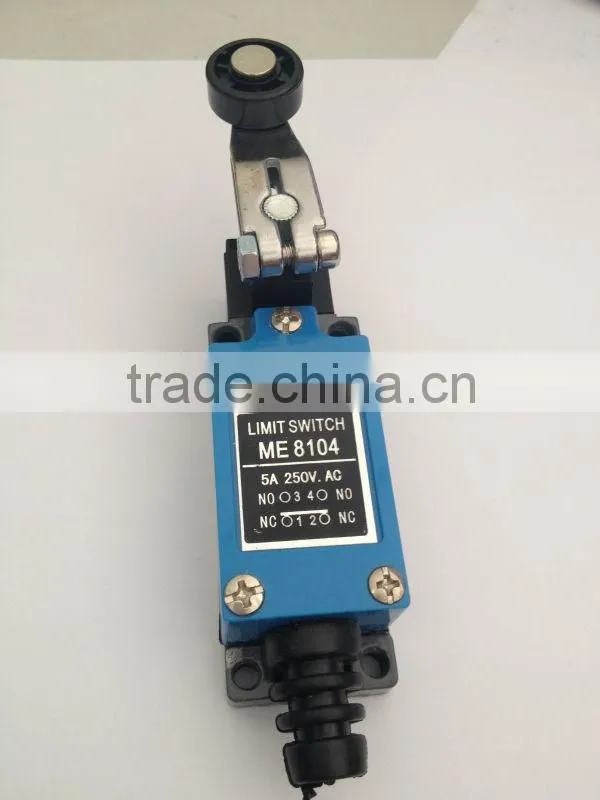

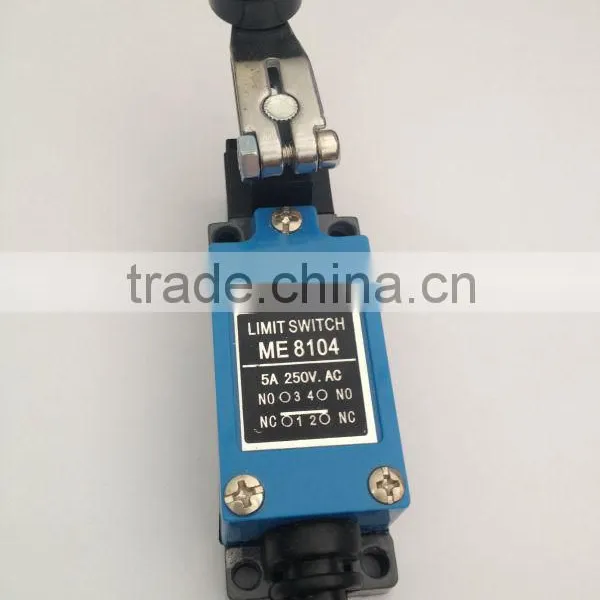

CNGAD 5A blue electrical micro switch(limit switch ME,250V limit switch)(ME-8104)

Specifications

CNGAD 5A blue electrical micro switch(limit switch ME,250V limit switch)(ME-8104)

CNGAD 5A blue electrical micro switch(limit switch ME,250V limit switch)(ME-8104)

1) Operation speed: 0.5mm-50cm/sec
2) Action frequency: Mechanically: 120times/min Electically: 30 times/min
3) Contact resistance: 25mΩ (mm)(initial)
4) Insulation resistance: 100MΩ Below (at 500VDC)
5) Bearing voltage: 1, 000VAC-1, 500VAC, 50/60Hz for one minute
6) Vibration: 10-55Hz, 1.5mm pairs swing
7) Hitting: Mechanic: 1, 000m/Sec2 (about 100G'S)
8) Surrounding temperature: -5 to +65
9) Humidity: 95% RH above
10) Life time: Mechanical: 10, 000, 000 times above Electrical: 500, 000 times above
11) Protection grade: IP65
