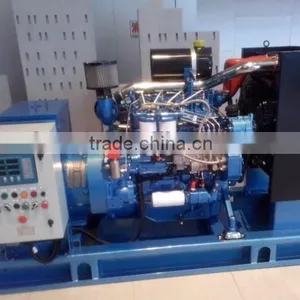

CCS Approved Weichai Marine Generator Diesel Genset
US$ 10,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Weichai
Model Number:
CCFJ
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY PORT IN CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CCS Approved Weichai Marine Generator / Diesel GensetUS$ 10,000 - 80,000MOQ: 1 Set -
200KW/250KVA Marine Diesel Engine Generator SetUS$ 1,500 - 20,000MOQ: 1 Set
-
CCS Approved 80KVA/64KW Weichai Marine Diesel Genset With Stamford Marine GeneratorUS$ 10,000 - 80,000MOQ: 1 Set
-
Marine Diesel Engine Generator Set(30KVA TO 500KVA)US$ 1,500 - 20,000MOQ: 1 Set
-
Sitaiqi Marine Diesel Generator Set 275kw-2000kwUS$ 3,500 - 35,000MOQ: 1 Unit
Place of Origin
Fujian, China
Brand Name
Weichai
Model Number
CCFJ
Output Type
AC Three Phase
Speed
1500/1800RPM
Frequency
50/60HZ
Rated Power
64-200KW
Rated Voltage
440/230V
Rated Current
115.2-360A
Specifications
CCS Approved Weichai Marine Generator Diesel Genset1. Famous engine
2. High performance
3. Good pric

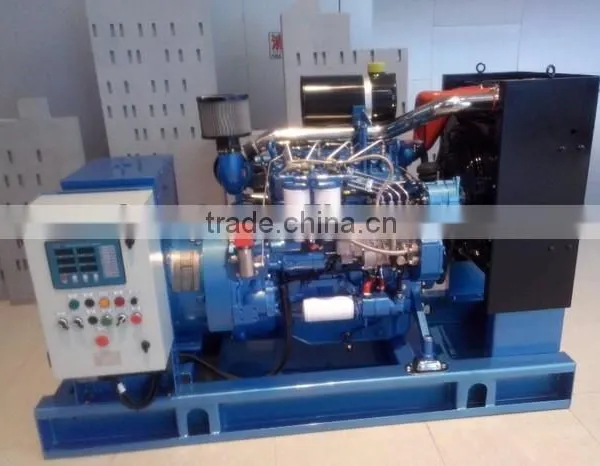

CCS Approved Weichai Marine Generator Diesel Genset
WD615/618 Series Marine Generating Setsare powered by WD615/618 series diesel engines and fitted up with renowned generators. The rotating speed is 1500 rpm or 1800rpm, and the power output range is 64-200kW. These generating sets are widely used as common marine generating set and marine emergency generating sets, Css and /or ZY, BV certification can be supplied.
GB/T13032-1991 Standard is applied for the manufacture and inspection of the generating sets.
Main components of the generating sets:
Alternator: Marathon, Stanford and Lanzhou generator with F or H insulation grade.
Parallel function: Two and more normal marine generating sets can transfer loading without stoping, and can realize parallel.
Portection function: There are over-limit alarming for speed, oil pressure and cool-water temperature.
Model List of WD615/WD618 Series Marine Emergency Generating Set
| Genet Model | Continuous output(kW) | Rated Voltagey(V) | Rated currency(A) | Rated loading fuel consump(kg/h) | Weichai WD615/618 Series Diesel Engine | Exciting method | Alternator Manufacturer | |||||
| Engine model | Max output(kW) | Rated speed(r/min) | Governing method | Starting method | Cooling method | |||||||
| CCFJ64Y-WI | 64 | 400 | 115 | 20 | WD615.00CD-2 | 129 | 1500 | Electrical | Electric/Air | Closed cooling | Brushless | Marathon |
| CCFJ90Y-WI | 90 | 400 | 162 | 20 | WD615.61CD | 129 | 1500 | Electrical | Electric/Air | Closed cooling | Brushless | Marathon |
| CCFJ100Y-WI | 100 | 400 | 181 | 20 | WD615.61CD | 129 | 1500 | Electrical | Electric/Air | Closed cooling | Brushless | Marathon |
| CCFJ120-WI | 120 | 400 | 217 | 24 | WD615.67CD | 152 | 1500 | Electrical | Electric/Air | Closed cooling | Brushless | Marathon |
| CCFJ150-WI | 150 | 400 | 271 | 30 | WD615.68CD | 187 | 1500 | Electrical | Electric/Air | Closed cooling | Brushless | Marathon |
| CCFJ200Y-WI | 200 | 400 | 361 | 40 | WD618.42CD | 259 | 1500 | Electrical | Electric/Air | Closed cooling | Brushless | Marathon |
| CCFJ64Y-WU | 64 | 400 | 115 | 20 | WD615.00CD-2 | 129 | 1500 | Electrical | Electric/Air | Closed cooling | Brushless | Stamford |
| CCFJ90Y-WU | 90 | 400 | 162 | 20 | WD615.61CD | 129 | 1500 | Electrical | Electric/Air | Closed cooling | Brushless | Stamford |
| CCFJ100Y-WU | 100 | 400 | 181 | 20 | WD615.61CD | 129 | 1500 | Electrical | Electric/Air | Closed cooling | Brushless | Stamford |
| CCFJ120Y-WU | 120 | 400 | 217 | 24 | WD615.67CD | 152 | 1500 | Electrical | Electric/Air | Closed cooling | Brushless | Stamford |
| CCFJ150Y-WU | 150 | 400 | 271 | 30 | WD615.68CD | 187 | 1500 | Electrical | Electric/Air | Closed cooling | Brushless | Stamford |
| CCFJ200Y-WU | 200 | 400 | 361 | 40 | WD618.42CD | 259 | 1500 | Electrical | Electric/Air | Closed cooling | Brushless | Stamford |
