Weichai Marine Diesel Generator / Diesel Genset CCS Approved for Ship

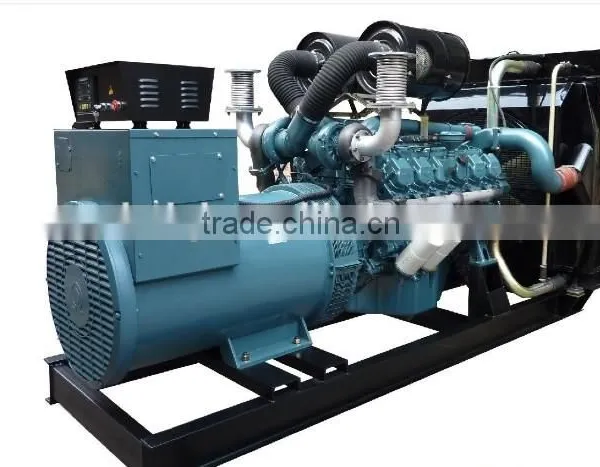

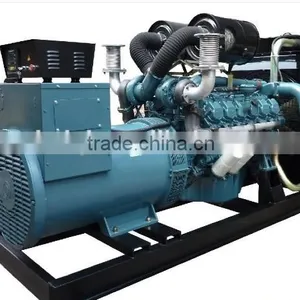

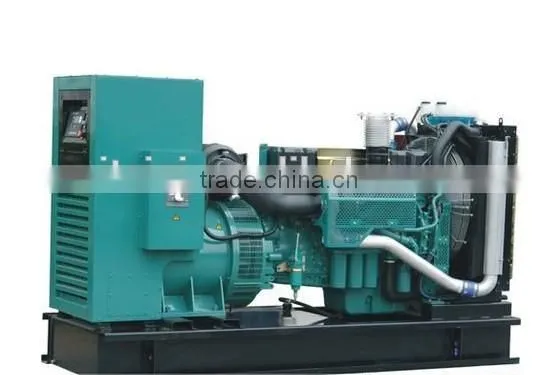

Weichai Marine Diesel Generator / Diesel Genset CCS Approved for Ship photo-1
Weichai Marine Diesel Generator / Diesel Genset CCS Approved for Ship photo-2
Weichai Marine Diesel Generator / Diesel Genset CCS Approved for Ship photo-3
Weichai Marine Diesel Generator / Diesel Genset CCS Approved for Ship photo-4
Weichai Marine Diesel Generator / Diesel Genset CCS Approved for Ship photo-5
US$ 10,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Weichai
Model Number:
CCFJ
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY PORT IN CHINA
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name Weichai
Model Number CCFJ
Output Type AC Three Phase
Speed 1500/1800RPM
Frequency 50/60HZ
Rated Power 64-200KW
Rated Voltage 440/230V
Rated Current 115.2-360A

 Weichai Marine Diesel Generator / Diesel Genset CCS Approved for ship



WD615/618 Series Marine Generating Setsare powered by WD615/618 series diesel engines and fitted up with renowned generators. The rotating speed is 1500 rpm or 1800rpm, and the power output range is 64-200kW. These generating sets are widely used as common marine generating set and marine emergency generating sets, Css and /or ZY, BV certification can be supplied.

GB/T13032-1991 Standard is applied for the manufacture and inspection of the generating sets.

Main components of the generating sets:

Alternator:  Marathon, Stanford and Lanzhou generator with F or H insulation grade.

Parallel function:  Two and more normal marine generating sets can transfer loading without stoping, and can realize parallel.

Portection function:  There are over-limit alarming for speed, oil pressure and cool-water temperature.

Model List of WD615/WD618 Series Marine Emergency Generating Set

Genet Model Continuous output(kW) Rated Voltagey(V) Rated currency(A) Rated loading fuel consump(kg/h) Weichai WD615/618 Series Diesel Engine Exciting method Alternator Manufacturer
Engine model Max output(kW) Rated speed(r/min) Governing method Starting method Cooling method
CCFJ64Y-WI 64 400 115 20 WD615.00CD-2 129 1500 Electrical Electric/Air Closed cooling Brushless Marathon
CCFJ90Y-WI 90 400 162 20 WD615.61CD 129 1500 Electrical Electric/Air Closed cooling Brushless Marathon
CCFJ100Y-WI 100 400 181 20 WD615.61CD 129 1500 Electrical Electric/Air Closed cooling Brushless Marathon
CCFJ120-WI 120 400 217 24 WD615.67CD 152 1500 Electrical Electric/Air Closed cooling Brushless Marathon
CCFJ150-WI 150 400 271 30 WD615.68CD 187 1500 Electrical Electric/Air Closed cooling Brushless Marathon
CCFJ200Y-WI 200 400 361 40 WD618.42CD 259 1500 Electrical Electric/Air Closed cooling Brushless Marathon
CCFJ64Y-WU 64 400 115 20 WD615.00CD-2 129 1500 Electrical Electric/Air Closed cooling Brushless Stamford
CCFJ90Y-WU 90 400 162 20 WD615.61CD 129 1500 Electrical Electric/Air Closed cooling Brushless Stamford
CCFJ100Y-WU 100 400 181 20 WD615.61CD 129 1500 Electrical Electric/Air Closed cooling Brushless Stamford
CCFJ120Y-WU 120 400 217 24 WD615.67CD 152 1500 Electrical Electric/Air Closed cooling Brushless Stamford
CCFJ150Y-WU 150 400 271 30 WD615.68CD 187 1500 Electrical Electric/Air Closed cooling Brushless Stamford
CCFJ200Y-WU 200 400 361 40 WD618.42CD 259 1500 Electrical Electric/Air Closed cooling Brushless Stamford
