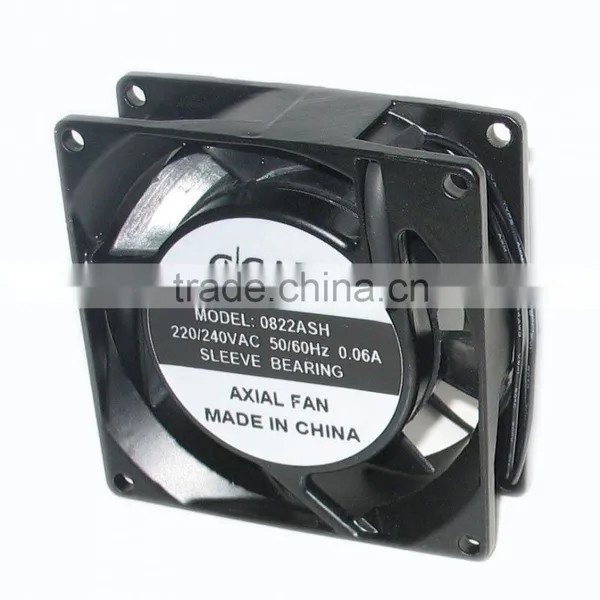

Axial Flow Fan (cooling Fan,axial Fan)(808025)

Name: Axial Flow Fan (cooling Fan,axial Fan)(80*80*25)
Brand: CNGAD
SKU: 112658775
Availability: InStock

Wenzhou Gad Technological Electricity Co., Ltd.

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Electric Current Type:

Blade Material:

Stainless Steel

Place of Origin:

Zhejiang, China

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type AC

Blade Material Stainless Steel

Place of Origin Zhejiang, China

Brand Name CNGAD

Model Number 0822ABH-Axial fan motor

Specifications

axial flow fan (cooling fan,axial fan)(80*80*25)
Size of the fan: 80*80*25 mm
Bearing: Ball bearing
Voltage Range: AC220V/24

axial flow fan (cooling fan,axial fan)(80*80*25):

Model: 8025ABH
Size:80x80x25mm
Weight:225g
Electric motor: Shaded pole motor structure.Impedance protect
Frame: Casting al alloy with black paint, anti-corrosion,anti-oxidization
Impeller: UL94V-0 70% PBT+30%FRP
Bearing: Ball Bearing or Sleeve Bearing
Insulation: Class B
The setting bolt of fan:M4x8
Insulation Impedance: The case adds 500V DC to the coils, insulation impedance 100MΩ higher
Dielectric strength: 0.5mA 1500V AC /min
Safety protection: Impedance protection
Operating temperature: -10~70
Storage temperature: -40~70
Model	Dimension	Voltage V AC		Current	Power	Speed	Air Flow	Pressure	Noise
	mm	Frequency Hz		AMP	Watts	RPM	CFM m3/min	mm H2O	dBA
8021ASH	80x80x25	115	50	0.14	15	2300	17	0.72	22
8021ABH			60	0.13	11	2800	21	0.12	26.6
8022ASH		230	50	0.08	16	2300	17	0.72	22
8022ABH			60	0.07	11	2800	21	0.12	26.6
