Home > Industrial Equipment & Components > Engine & Part > Engine > Weichai Steyr WD415 Series Marine Engine Power Range 58kW-158kW With a Wide Range Speed, Good Reliability

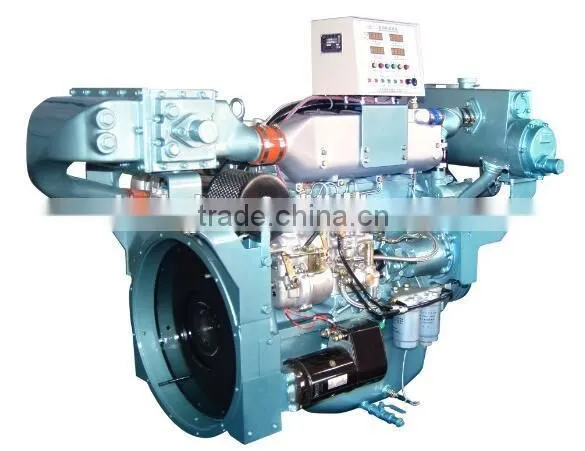

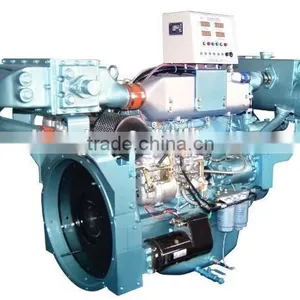

Weichai Steyr WD415 Series Marine Engine Power Range 58kW-158kW With a Wide Range Speed, Good Reliability

US$ 6,000 - 18,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Engine:

4 Stroke

Engine Capacity:

> 6L

Contact Supplier Request Quote Chat Now

Xiamen Sitaiqi Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port or the other port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Engine 4 Stroke

Fuel Type Diesel

Cylinders 4

Engine Position Inboard

Dimensions (L x W x H) (mm) 1610*830*1170

Weichai Steyr WD415 series marine engine power range 58kW-158kW with a wide range speed, good reliability

Main Technical Data

Model	41516C	41524C
Type	Vertical, in-line, water-cooled, four-stroke, direct injection
Air inlet	Turbocharged	Turbocharged and intercooled
NO. of cylinder	4
Bore×stroke (mm×mm)	126×130
NO. of valve/ cylinder	2
Crankshaft rotation direction(look from the free end)	clockwise
Ignition sequence	1-3-4-2
Displacement (L)	6.484L
Rated fuel consumption rate (g/kW h)	215		205
Maximum combustion pressure (MPa)	13.5		14.5
Compression ratio	17:1
Oil fuel consumption ratio(%)	0.4
Starting mode	Electric starting
Charge ratio	1.85
Idle speed(r/min)	600±50
Crankshaft type	Integral type
Net weight(kg)	800
Dimensions L×W×H (mm)	1260×830×1170			1610×830×1170

Product Description

WD415 marine diesel engine

Product overview

WD415 series marine diesel engine as the WD615 marine diesel engine's sister products, draw the most advanced diesel engine design concept in Europe, the key to strengthen the design of the basic parts, but also to further improve the reliability. In particular, the design of the frame type dual axis balance mechanism installed in the bottom plane of the crankcase, which completely solves the problem of the vibration of the four cylinder diesel engine, and the quality of the six cylinder diesel engine. Power range 58kW-158kW, speed range 1500-2100rpm.
Super power: the maximum power of up to 240 hp;
Superior performance, economical and practical: equipped with special fuel injection pump, main engine with parking electromagnet, auxiliary engine with electronic governor, in a wide power range and speed range is extremely low fuel consumption, minimum fuel consumption rate is lower than the 198g/KW.h.
Patent balance mechanism: completely solve the two - level reciprocating inertia force of the four cylinder engine, the whole balance mechanism is placed in the oil pan, and does not affect the overall size of the engine and the original structure of the engine, so that it is easy to arrange in the cabin.
Application scope is wide: the main driving force and the auxiliary power of a variety of ships are widely used.
