Weichai Steyr WD615 series marine engine power range 91-257kW with a wide range speed, good reliability
Model |
61561C |
61564C |
61567C |
61568C |
61546C |
61557C |
Type |
Vertical, in-line, water-cooled, four-stroke, direct injection |
|||||
Air inlet |
Turbocharged |
Turbocharged |
Turbocharged and intercooled |
|||
NO. of cylinder |
6 |
|||||
|
Bore× stroke (mm×mm) |
126×130 |
|||||
|
NO. of valve/ cylinder |
2 |
4 |
||||
Crankshaft rotation direction(look from the free end) |
clockwise |
|||||
Ignition sequence |
1-5-3-6-2-4 |
|||||
Displacement (L) |
9.726L |
|||||
Rated fuel consumption rate (g/kW h) |
220 |
215 |
205 |
205 |
205 |
200 |
Maximum combustion pressure (MPa) |
13.5 |
13.5 |
14.5 |
14.5 |
14.5 |
16 |
Compression ratio |
17:1 |
17.5:1 |
||||
Compression pressure |
>2000 |
|||||
Oil fuel consumption ratio(%) |
0.4 |
|||||
Starting mode |
Electric starting |
|||||
Charge ratio |
2.08 |
|||||
|
Idle speed (r/min) |
600±50 |
|||||
Crankshaft type |
Integral type |
|||||
|
Net weight (kg) |
850 |
1000±40 |
1050±40 |
1050±40 |
1080±40 |
1080±40 |
|
Dimensions L×W×H (mm) |
1580×830×1170 |
1580×830×1170 |
1912×830×1170 |
1912×830×1170 |
1940×830×1225 |
1940×830×1170 |

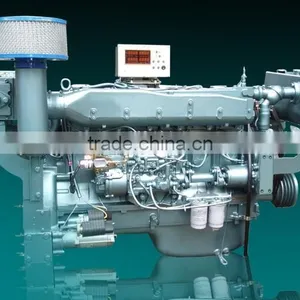

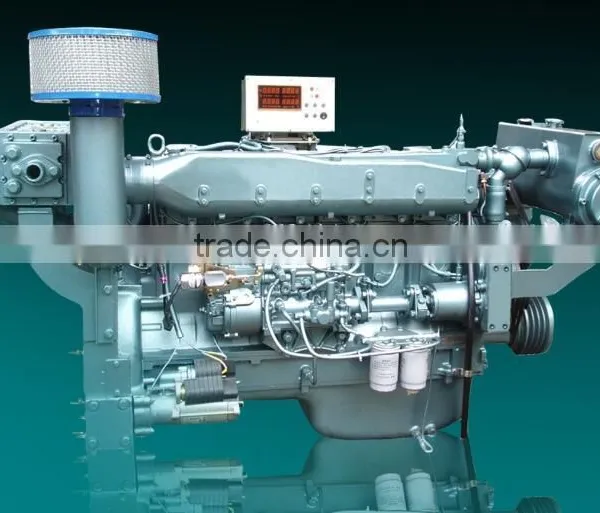

WD615 marine diesel engine
Product overview
WD615 series marine engine power range 91-257kW, with a wide range speed, good reliability, small volume, light weight, low fuel consumption, low emission, main components are same as basic engine, easy for customers to busy engine fittings. Apply to marine main engine and marine auxiliary.
The SINOTRUK using steyr WD615 series technology improve achievement, combine with the special conditions of marine engine, design WD615 series marine engine, which is the only conform to the original design of steyr in the domestic at present, and which is high reliability engine.
WD615 series marine engine is the only using PS8500 mechanical in-line high pressure pump and Delphi low inertia injector in the domestic. Air intake system and fuel supply system are achieve to the best matching condition, obviously improved performance and fuel economy, fuel-saving effect is remarkable.
After 600 hours non-stop whole machine test, WD615 series marine engine has higher reliability, better performance and unparalleled fuel-saving effect. More than 10% lower fuel consumption than the domestic similar products, the minimum fuel consumption is 192 g/KWH, which reached the European level.
