Help CenterHigh Speed Marine Diesel Engine SY4L68C/4L88C
Related Products
-
100-130hp Marine Diesel Engine SY110C/SY144CUS$ 1,900 - 5,000MOQ: 1 Piece -
Yuchai YC6T Series of Marine Diesel Engine for ShipUS$ 20,000 - 90,000MOQ: 1 Piece
-
Yuchai YC6TD Series of Marine Diesel Engine for ShipUS$ 20,000 - 90,000MOQ: 1 Piece
-
Yuchai YC4FA Series Marine Diesel Engine (115hp-130hp)US$ 2,000 - 6,500MOQ: 1 Set
-
Yuchai YC6J Series Marine Diesel Engine (85hp-165hp) for BusUS$ 2,000 - 6,500MOQ: 1 Set
Have “CCS”,“ZY”and“EC” type approval certificates
Match with SCG025,ZF25M,ZF30M,MA125A reduction gearbox and high flexible coupling
Low inertia hole of fuel injector with low fuel consumption and emission
Exhaust manifold integrated with sea fresh water heat exchanger design, it has a compact size and lower noise
Model |
4L68C |
4L88C |
Type |
In line,water cooling, four stroke, nature inspiration |
In line,water cooling, four stroke, turbo charger |
Combustion chamber type |
Direct injection |
|
Cylinder No. |
4 |
|
Bore×Stroke (mm) |
95×100 |
|
Total displacements (L) |
2.834 |
|
Fire order |
1→3→4→2 |
|
Compression ratio |
18:1 |
|
Rated power/Speed (kW/r/min) |
50/3200 |
65/3200 |
Max. power/Speed (kW/r/min) |
55/3303 |
71.5/3303 |
Rated fuel consumption (g/ kW·h) |
≤245 |
|
Lubrication method |
Combination of force,Splash |
|
Cooling method |
Force water cooling,closed circulation by sea fresh heat-exchanger |
|
Rotation direction |
Anticlockwise (View from flywheel end) |
|
Starting method |
Electric(option another starting device) |
|
Max. idle speed(r/min) |
3460 |
|
Idle speed (r/min) |
≤850 |
|

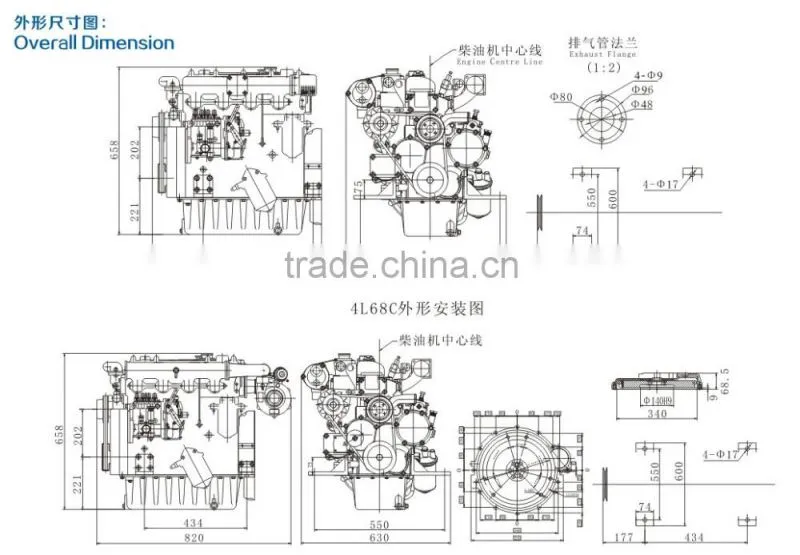

Overall dimension(L×W×H)(mm) |
666×630×658 |
695×650×658 |
Net weight(Kg) |
280 |
305 |
Zhenjiang Siyang Diesel Engine Manufacturing Co., Ltd is a national high technology enterprise belonged to Jiang Su University Of Science and Technology Assets Management Company. Depended on the science and technology predominance of the university, we specially design and manufacture the propulsion diesel engine set for high speed rescue boat, lifeboat, working boat, pleasure boat, coastal fish ship and yacht. The company is an international enterprise integrated of technical research, products manufacturing, sale and service, the business extends over 150 countries and areas worldwide.I
In 1972, We design and manufacture the first diesel engine set specially for lifeboat. After the development over forty years, we become the biggest diesel engine supplier in international lifesaving field. Our marine engine gets the first market share among lifeboat propulsion engine. At present, we have the main products as high speed marine diesel engine, water jet pump, marine diesel fire-fighting pump set, small power diesel-generator set and other marine products.
From 2009 we operate the company in according of ISO 9001-2008 Quality Management System and cover quality system to the whole process of manufacturing and sale. Our marine diesel engine sets have passed “NK”, “ABS”, “KR”, “RS”, “DNV”, “CCS” , “ZY”(China)and “EC” type approval certificates.
With a future view to marine high standard, Our high speed marine diesel engine designs with a modular idea and leads the top in marine engine fields. Through adopting advance technology, keeping super quality, designing with compact size, low fuel consumption and low after service cost, our products continuously meet all kinds of requirements from the customer.
