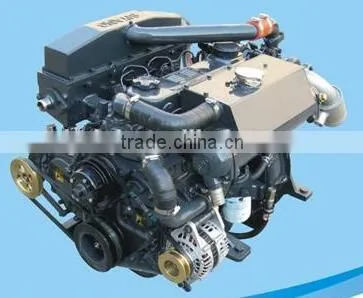

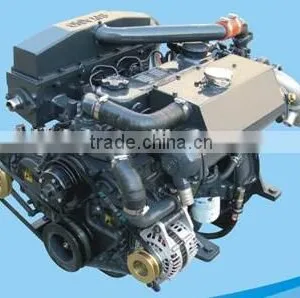

100-130hp Marine Diesel Engine SY110C/SY144C
Have “CCS”,“EC”type approval certificates.
Match with ZF30M,ZF45-1, MA125A reduction gearbox and high flexible coupling
Adapting advance turbo and inter-cooling technology, low fuel consumption and emission
Low vibration and noise, excellent comfortable
Use as the main propulsion engine for all kind of lifeboat, rescue boat. Match also SYP23
water jet propulsion device for kinds of small ship or yacht.
Model |
SY110C |
SY144C |
|
Type |
In line,water cooling, four stroke, turbo charger |
In line,water cooling, four stroke, turbo cooling |
|
Combustion chamber type |
Direct injection |
||
Cylinder No. |
4 |
||
Bore×Stroke (mm) |
99.2×102 |
||
Total displacements (L) |
3.153 |
||
Fire order |
1→3→4→2 |
||
Compression ratio |
22:1 |
||
Rated power/Speed (kW/r/min) |
73.6/3600 |
96/3600 |
|
Max. power/Speed (kW/r/min) |
80.9/3715 |
105.6/3715 |
|
Rated fuel consumption (g/ kW·h) |
≤260 |
||
Lubrication method |
Combination of force,Splash |
||
Cooling method |
Force water cooling,closed circulation by sea fresh heat-exchanger |
||
Rotation direction |
Anticlockwise (View from flywheel end) |
||
Starting method |
Electric(option another starting device) |
||
Max. idle speed (r/min) |
3860 |
||
Idle speed (r/min) |
≤850 |
||

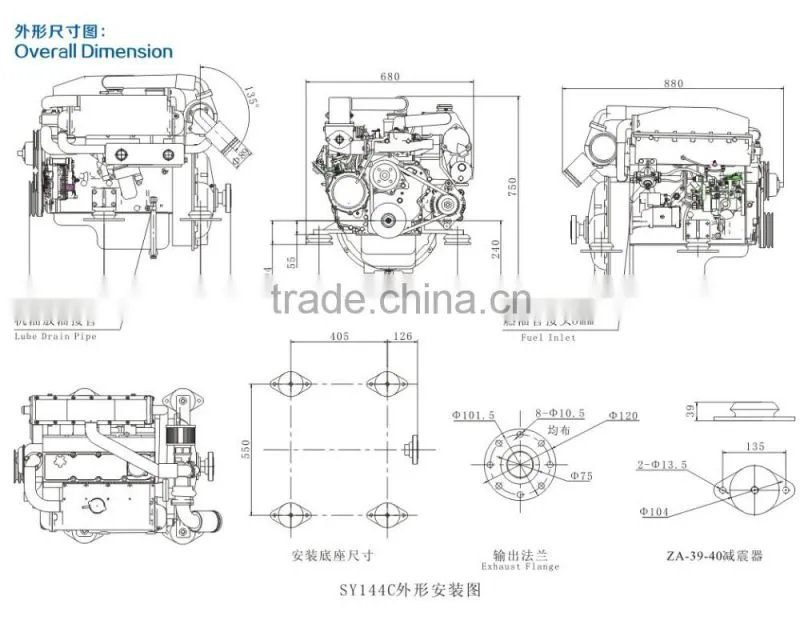

Overall dimension(L×W×H)(mm) |
880×680×715 |
880×680×750 |
|
Net weight(Kg) |
285 |
296 |
|
Zhenjiang Siyang Diesel Engine Manufacturing Co., Ltd is a national high technology enterprise belonged to Jiang Su University Of Science and Technology Assets Management Company. Depended on the science and technology predominance of the university, we specially design and manufacture the propulsion diesel engine set for high speed rescue boat, lifeboat, working boat, pleasure boat, coastal fish ship and yacht. The company is an international enterprise integrated of technical research, products manufacturing, sale and service, the business extends over 150 countries and areas worldwide.I
In 1972, We design and manufacture the first diesel engine set specially for lifeboat. After the development over forty years, we become the biggest diesel engine supplier in international lifesaving field. Our marine engine gets the first market share among lifeboat propulsion engine. At present, we have the main products as high speed marine diesel engine, water jet pump, marine diesel fire-fighting pump set, small power diesel-generator set and other marine products.
From 2009 we operate the company in according of ISO 9001-2008 Quality Management System and cover quality system to the whole process of manufacturing and sale. Our marine diesel engine sets have passed “NK”, “ABS”, “KR”, “RS”, “DNV”, “CCS” , “ZY”(China)and “EC” type approval certificates.
With a future view to marine high standard, Our high speed marine diesel engine designs with a modular idea and leads the top in marine engine fields. Through adopting advance technology, keeping super quality, designing with compact size, low fuel consumption and low after service cost, our products continuously meet all kinds of requirements from the customer.
