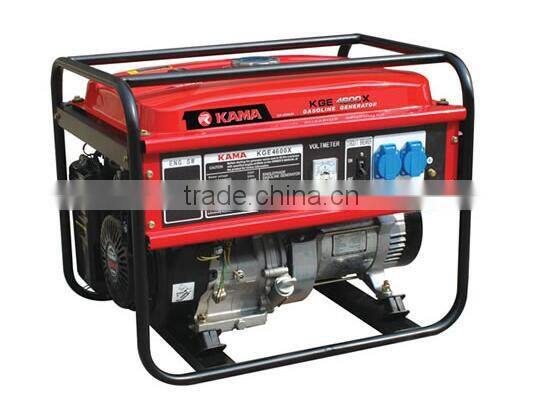

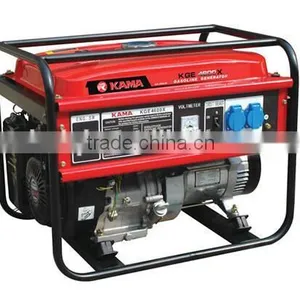

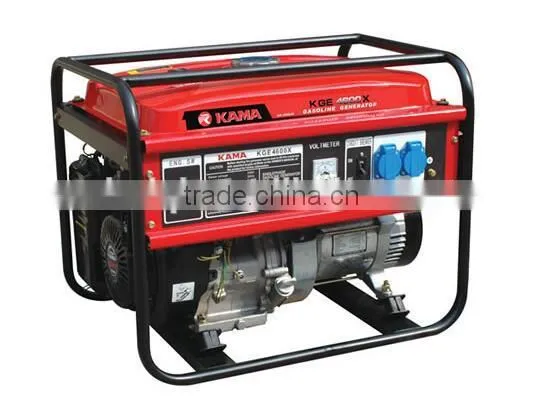

KAMA Gasoline Generator Set Three Phase 5.4-6Hp 50Hz/60Hz for Sale

Name: KAMA Gasoline Generator Set Three Phase 5.4-6Hp 50Hz/60Hz for Sale
Brand: KAMA
SKU: 112658001

US$ 200 - 3,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

KAMA

Model Number:

KGE4600X

Xiamen Sitaiqi Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or the other port in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name KAMA

Model Number KGE4600X

Speed 3000RPM/3600RPM

Frequency 60Hz/50Hz

Rated Power 4.0kw/4.5kw

Rated Voltage 230 230/400

Rated Current 15.2 17.4/34.8

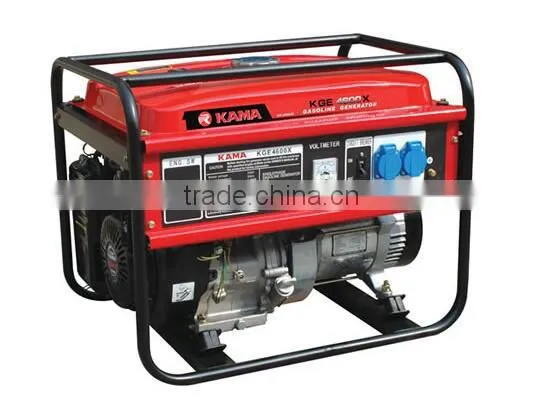

KAMA gasoline generator set three phase 5.4-6Hp 50Hz/60Hz for sale

Main Technical Data

Model KGE4600X

Rated frequency(Hz)		50 60
Rated voltage(V)		230 230/115
Rated current(A)		15.2 17.4/34.8
Rated output power(kW)		3.5 4.0
Rated rotation speed(rpm)		3000 3600
Power factor(cos)		1.0
Phase number		Single phase
Overall dimension(LWH)[mm(in)]		680x510x540(26.77x20.08x21.26)
Dry weight[kg(ibs.)]		75(165)
Structure mode		Open-frame type
Engine model		KG270
Engine type		Single cylinder,4-stroke, air-cooled OHV
Rate power[kW(hp)/rpm]		5.5(7.48)/3600
Bore*stroke[mm(in)]		77x58(3.03x2.28)
Compression ratio		8.5:1
Total displacement[L(cu.in)]		270(16.48)
Fuel consumption at full load[g(ml)/kW.h]		<374(505)
Starting system		Recoil Starter
Fuel		90#automotive unleaded gasoline
Cooling system		Force air-cooled
Lube Capacity		1.1(0.26)
lube		SAE10W30(above CC grade)
Low oil pressure alert system		With
Spark plug		F6RTC
Noise level[dB(A)@7m]		70~74
Inition system		T.C.I
DC output		12V 8.3A
Rotation direction (view from flywheel)		Clockwise
