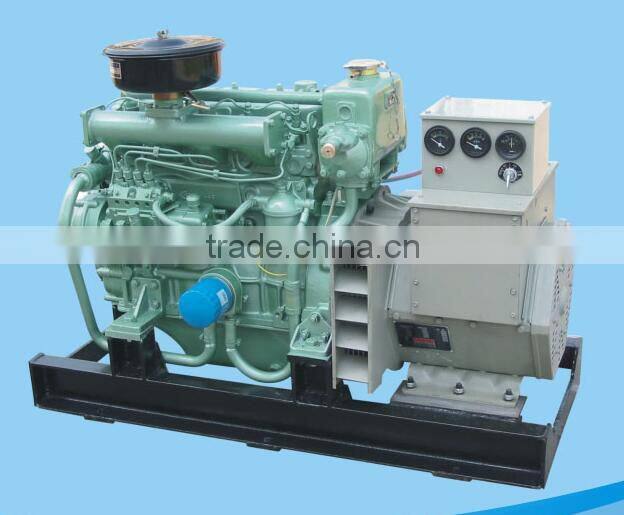

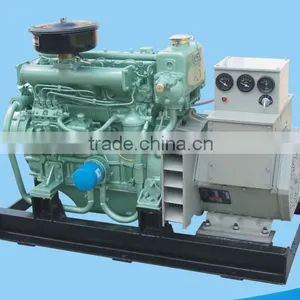

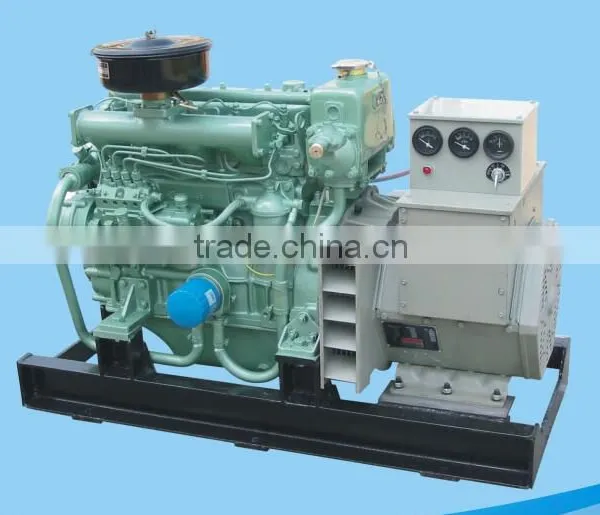

15KVA/25KVA Marine diesel generator set 230V-400V 50Hz
The marine diesel generator set is designed and manufactured as A.C power station in ship for electrical supply of illumination and communication. It has been found according of standard(GB/T13032 -91).
It can be matched option A.C or D.C generator to conform to the customer's requirements.
The products are approved by the China Classification Society.
Main Technical Data
Model | CCFJ12J | CCFJ20J-W | |
Engine model | N485CD | N485CD | |
Rated speed(rpm) | 1500 | 3000 | |
Engine rated optput(kW) | 17 | 30 | |
Generator model | BCM184G14 | BCM184E14 | SB-HW7-20 |
Rated power(KW) | 12 | 12 | 20 |
Rated voltage(V) | 230 | 400 | |
Rated current(A) | 65.2 | 21. 7 | 36.1 |
Frequency (Hz) | 50 | ||
Power factor | 0.8(later) | ||
Phase number and connection | Single phase | 3 phase 3 wire or 3 phase 4 wire system | |
Control voltage method | automatic | ||
Running state | Continuous | ||

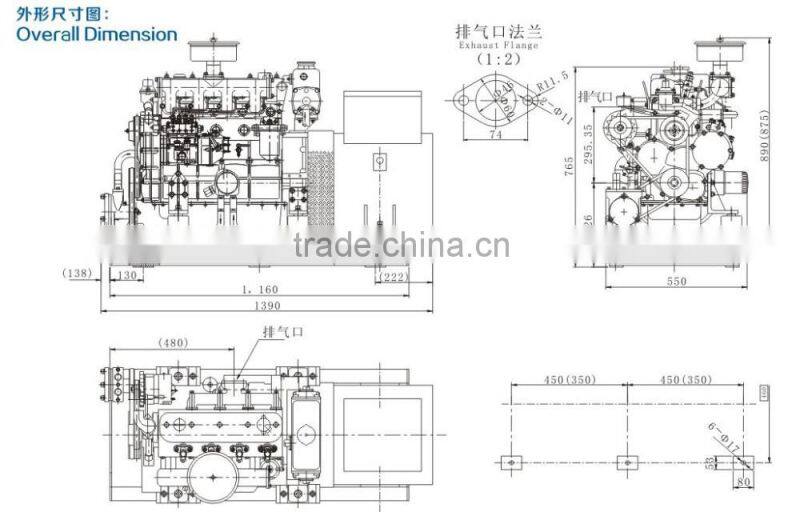

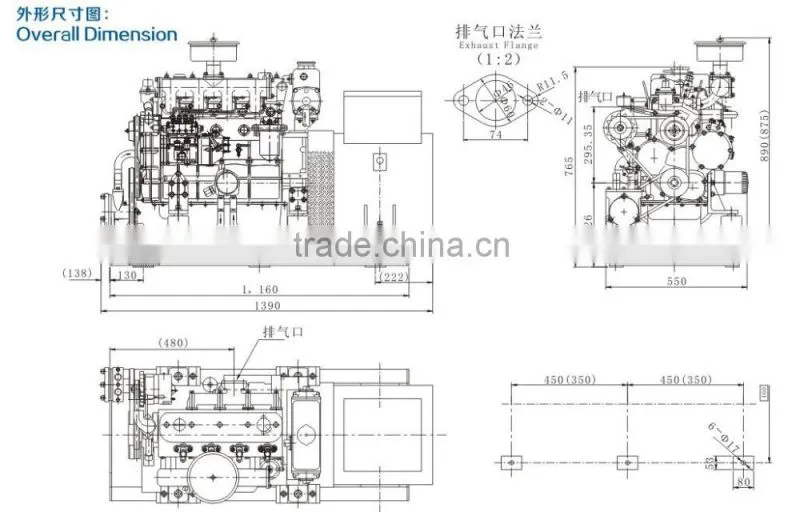

Overall dimension(L×W×H)(mm) | 1140×550×890 | 1390×550×890 | |
Net Weight (kg) | 410 | 440 | |
