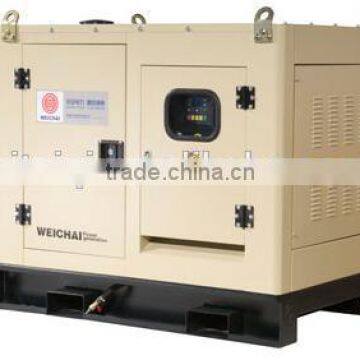

Chinese Weichai 10-50kW Series Low Noise Genset diesel generator
Parameter
10-50kW Series Silent Generating Sets
| Set model | Rated power(kW) | Rated voltage(V) | Fuel consumption at rated load (L/h) | Weichai YZ Series Diesel Engine | Excitation mode | |||||
| Engine model | Rated power (kW) | Rated speed (r/min) | No. of cylinders | Bore×Stroke(mm) | Cooling method | |||||
| WD13.5/1 | 10 | 400/230 | 2.5 | WP2.1D18E2 | 18 | 1500 | 4 | 85×92 | Close water cooling | Brushless |
| WD16.5/1 | 12 | 400/230 | 3.0 | WP2.1D18E2 | 18 | 1500 | 4 | 85×92 | Close water cooling | Brushless |
| WD22/1 | 16 | 400/230 | 4.0 | WP2.5D22E2 | 22 | 1500 | 4 | 90×100 | Close water cooling | Brushless |
| WD27.5/1 | 20 | 400/230 | 5.0 | WP3.9D33E2 | 33 | 1500 | 4 | 102×118 | Close water cooling | Brushless |
| WD30/1 | 22 | 400/230 | 5.5 | WP3.9D33E2 | 33 | 1500 | 4 | 102×118 | Close water cooling | Brushless |
| WD33/1 | 24 | 400/230 | 6.0 | WP3.9D33E2 | 33 | 1500 | 4 | 102×118 | Close water cooling | Brushless |
| WD34/1 | 25 | 400/230 | 6.3 | WP3.9D33E2 | 33 | 1500 | 4 | 102×118 | Close water cooling | Brushless |
| WD41/1 | 30 | 400/230 | 7.5 | WP4.3D38E2 | 38 | 1500 | 4 | 105×125 | Close water cooling | Brushless |
| WD44/1 | 32 | 400/230 | 8.0 | WP4.3D38E2 | 38 | 1500 | 4 | 105×125 | Close water cooling | Brushless |
| WD55/1 | 40 | 400/230 | 10.0 | WP4.1D50E2 | 50 | 1500 | 4 | 105×118 | Close water cooling | Brushless |
| WD66/1 | 48 | 400/230 | 12.0 | WP4.3D61E2 | 61 | 1500 | 4 | 108×118 | Close water cooling | Brushless |
| WD68.5/1 | 50 | 400/230 | 12.5 | WP4.3D61E2 | 61 | 1500 | 4 | 108×118 | Close water cooling | Brushless |
| The frequency of generating sets listed in this table is 50Hz (60Hz generating sets could be provided on request). Power factor is 0.8 (lag). Mode of wiring is three-phase four-wire system. | ||||||||||
Features
1. Compact structure, small in size, good appearance, stable performances, high reliability, low emission, and low fuel consumption.
2. Low noise. In compliance with ISO3744 noise regulation, noise proof cover, special material for noise reduction are adopted to significantly reduces mechanical noise of the Genset with noise level below 65-75dB.
3. Its excellent ventilation system and heat radiation prevention measures ensure the unit to always work at appropriate temperatures. Equipped with a large capacity fuel tank, the unit can work eight hours continuously.
4. Highly effective vibration reduction measures guarantee its stable operation. Uniquely designed observation windows and emergency stop button make it easy to operate and monitor.
Introduction
10-50kW Series low noise Genset adopts YZ series diesel engines manufactured by Weichai Yangzhou Diesel Engine Co., Ltd. as its power source, equipped with brand name generators and high-performance control system. It has advantages of humanistic design, compact structure, good appearance, stable performance, high reliability, long durability, low fuel consumption, eco-friendliness, easy maintenance, good environmental adaptability, damp proof and rainproof, corrosion resistant, and low noise (≤75dB(A)). It is widely used as standby power source or main power source in mines, hotels, and hospitals where have low noise requirements, as well as main power source for field construction. It is manufactured and tested according to ISO 8528 and GB/T2820 standards. Strictly in compliance with ISO9001 Quality Control System and European CE Safety Certification Standard, we have obtained TLC certificate.
