Rocker switch WK 12 Volt LED light bar waterproof ip68 on off blue

Specifications

1.Single Pole Single Throw ON-OFF switch
2.Black Hard surface rocker
3.Rated 20A 12V
4.Wiring diagram supplied with switch



Rocker switch WK 12 Volt LED light bar Waterproof ip68 on off blue



12 Volt 20amp ON - OFF rocker switch

Size same with Graling Switch



1. Description: ( Rocker Switches Quick Details)



Max. Current: 20A DC / 16A AC
Max. Voltage: 24V DC / 250V AC
Avaliable power: 20A/12V 10A/24V DC And 16A/125V 10A/250V AC(There is no lights)
Dielectric intensity 1500V AC/5S
Insulation resistance: 100MΩ MIN
Contact resistance: 50MΩ MAX
Switch electrical functions : ON-OFF  (ON)-OFF  ON-ON  (ON)-ON  ON-OFF-ON  (ON)-OFF-ON  (ON)-OFF-(ON)  ON-ON-ON  ON-ON-OFF , (NO): MOM ON , Automatic reset ON.
Waterproof - IP68 .Material:ABS plastic panel .Waterproof and Anti-corrosion .
Carling Style ,Installation dimensions is : 21.2*37.2mm (the same as Carling style).
Approvals: CE,UL,SGS,TUV,CCC ON-OFF



2. Production Specification



1.100% test before shipment
2.more than 10000cycles life

3.High current rating to 20 amps

4.New style with rounded corners

5.Lighted and non-lighted

6.Maintain-action and momentary



3. Advantages

All symbols are printed directly onto the switch face using modern high tech inks and printers to ensure long image life. we do not use stickers which will wear off in a very short time.

The switch is rated at 20amp's however in ALL case we recommend that you wire the accessory through a fused relay.

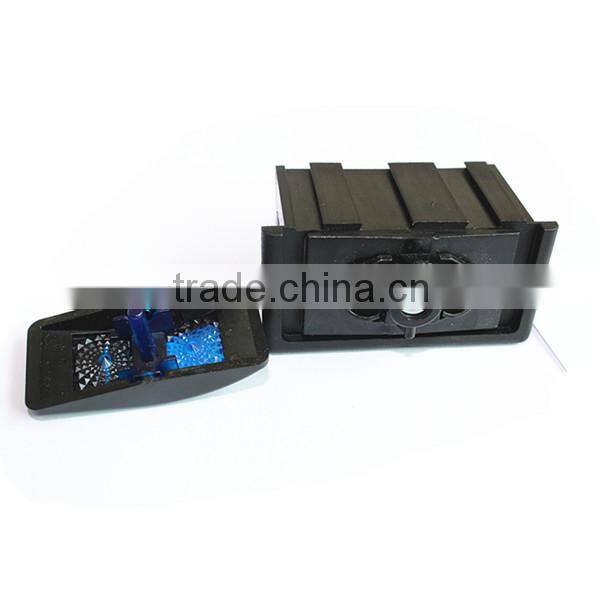

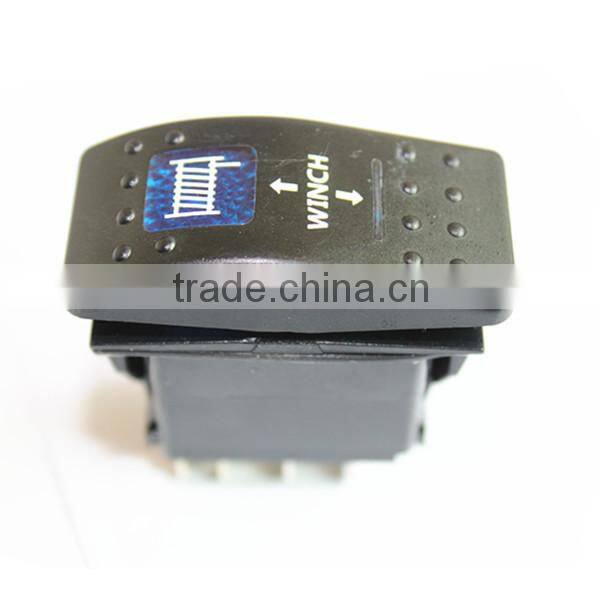

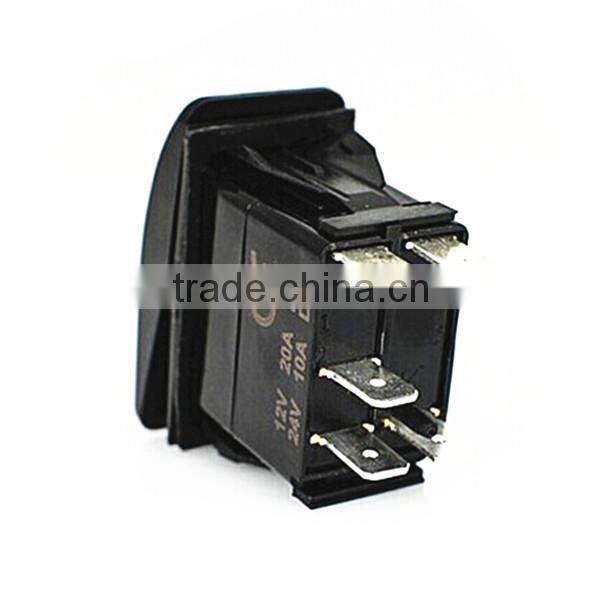

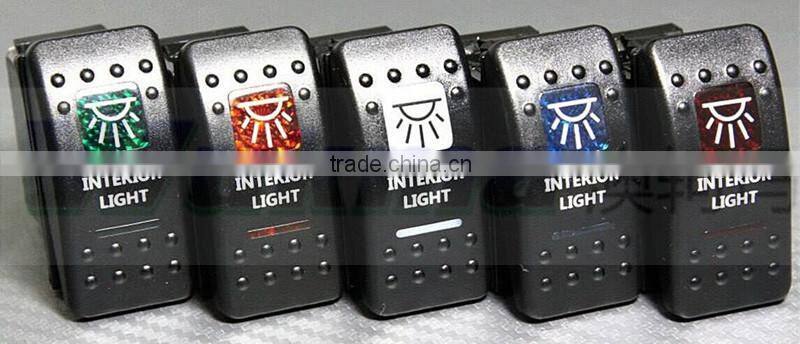

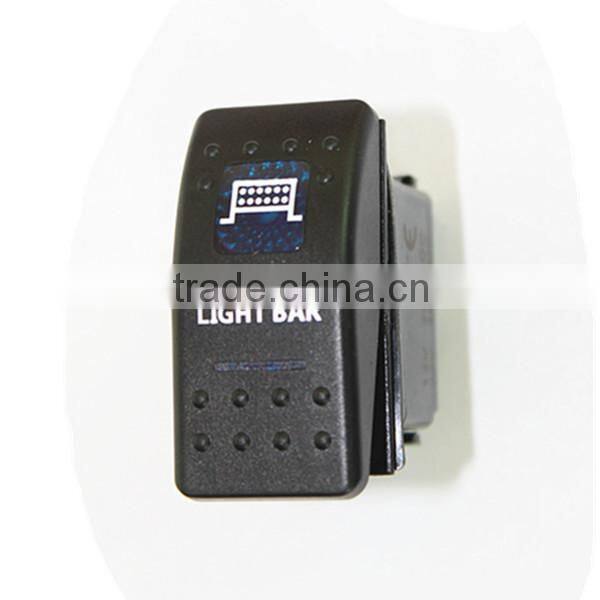

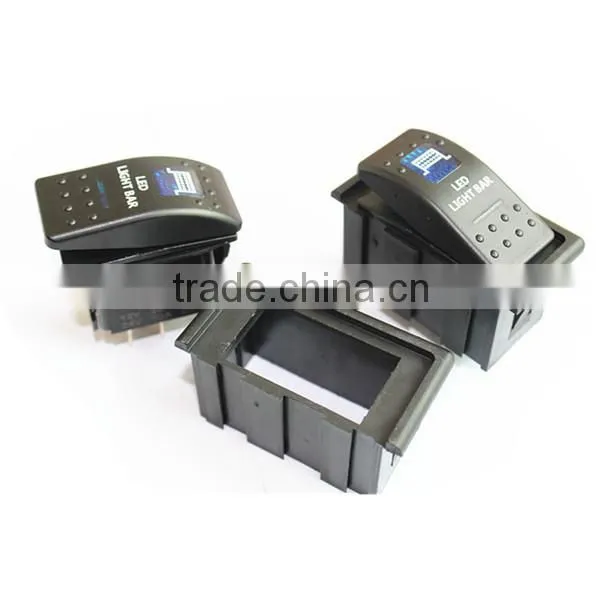

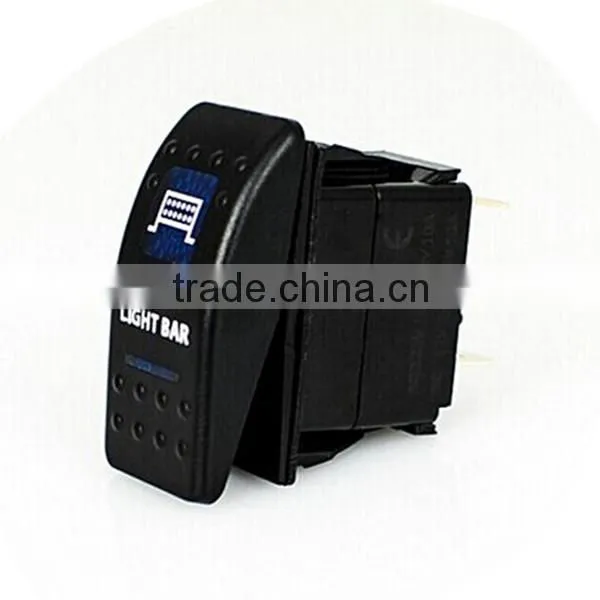

4. Real Photos
