Specifications
12/24V rocker switches with two colors LED lights!Anti-corrosion ABS plastic panel
2 colors of LED lights
Red&Blue Lights
High Quality 5 pin 12v 24v Auto/Marine Led light Rocker switches
12 Volt 20amp ON - OFF rocker switch
Size same with Graling Switch
1, Description:

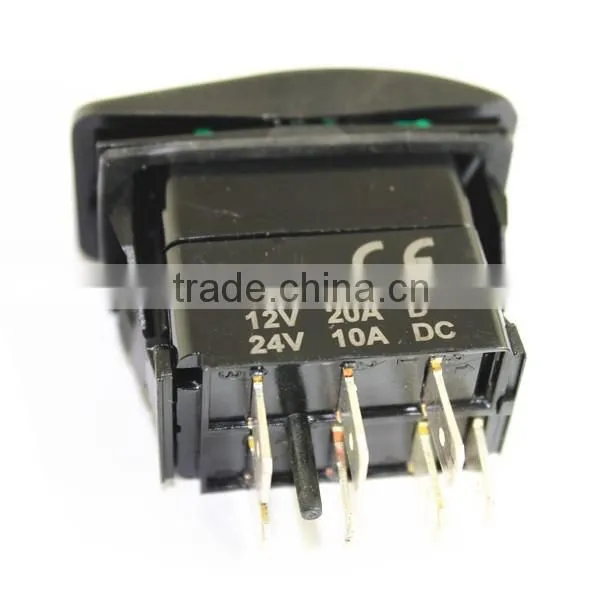

Rating: AC 125V 16 A 250V 10A
DC 12V 20A 24V10A
Contact resistance: 50mΩ Max.
Insulation resistance: DC 500V 100mΩ Min
Dielectric Strength: AC 1500V 1 minute
Operating Temperatures: -25℃~+80℃
Electrical Life: 10,000 make and break cycles at full load
Black hard surface rocker. Surface Size : 2" (50mm) x 1"(25mm).
Standard size mounting hole: 1.41"(36mm) x .86"(22mm). This is the standard size of most switch holes in modern vehicles. Lower LED is independent and can be wired to separate dash light circuit. Both LEDs have separate grounds. No rear barriers between terminals..
2, Advantages
1) Rocker Switches are widely used in carautomobilemotorcyclemarine system etc.
2) Professional design & QC team ensure quick OEM order
3) Professional team, standard processes, standard production, quality products.
4) Safety, on-time delivery, credit suppliers.
5) Customized designs are acceptable, small order are accepted
3,Rocker switch Quality:
We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life. All related raw materials are inspected according to ROHS detective.

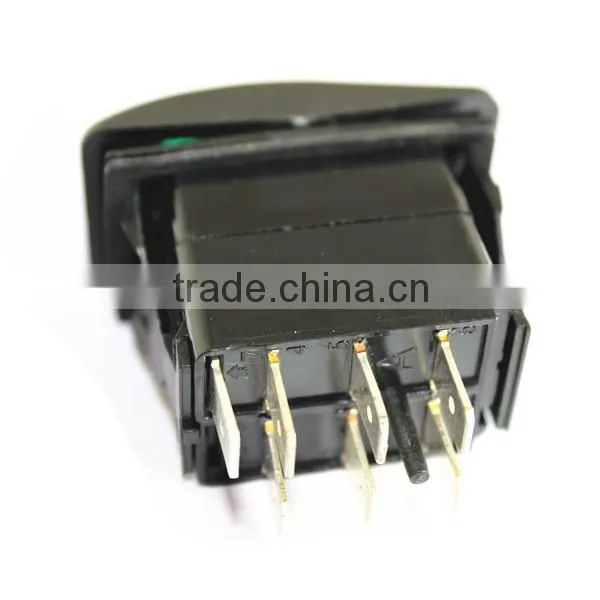

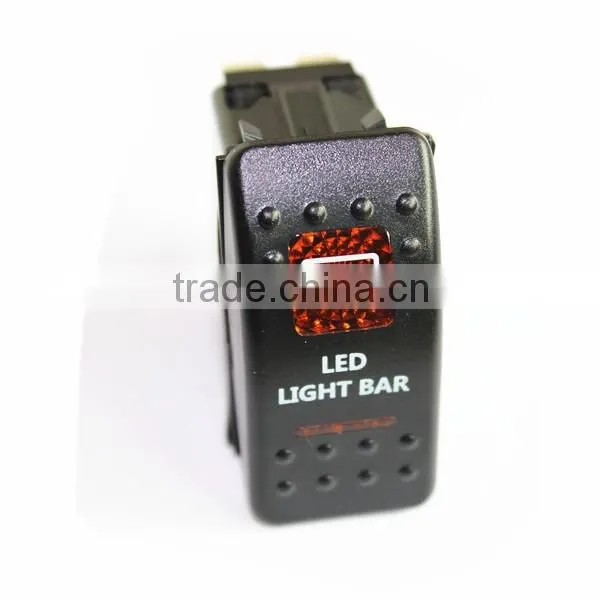

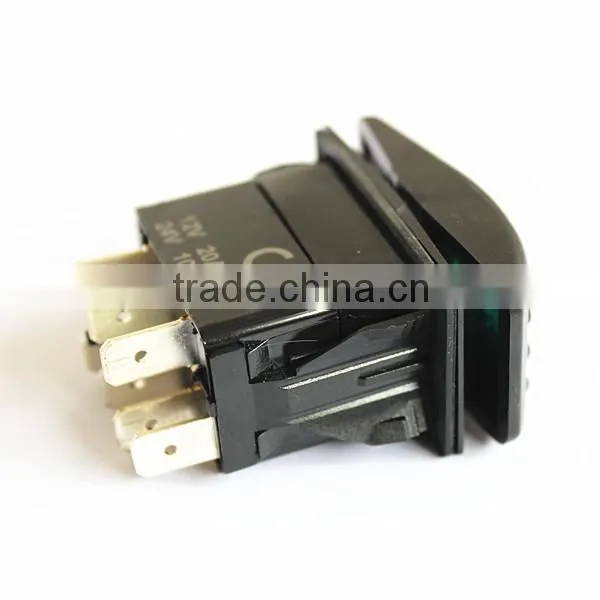

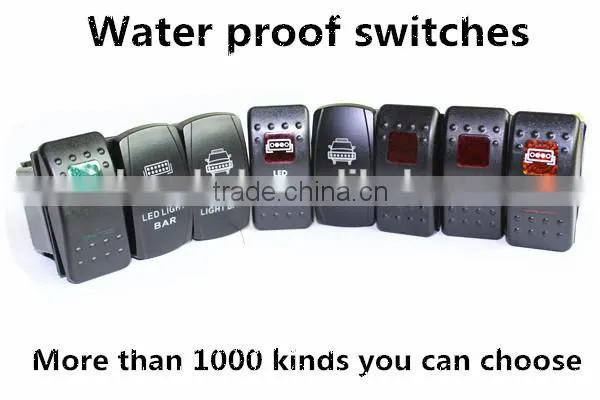

4, Further Photos, similar products, relative products

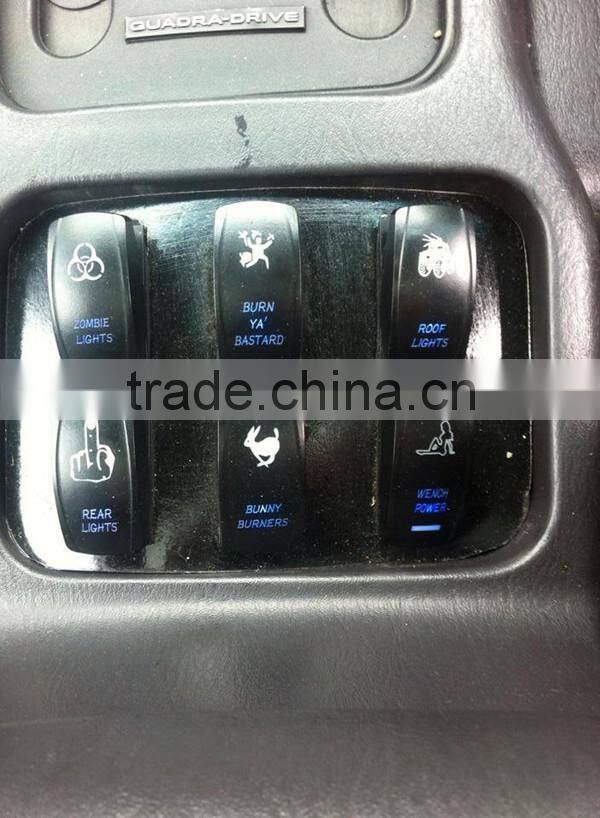

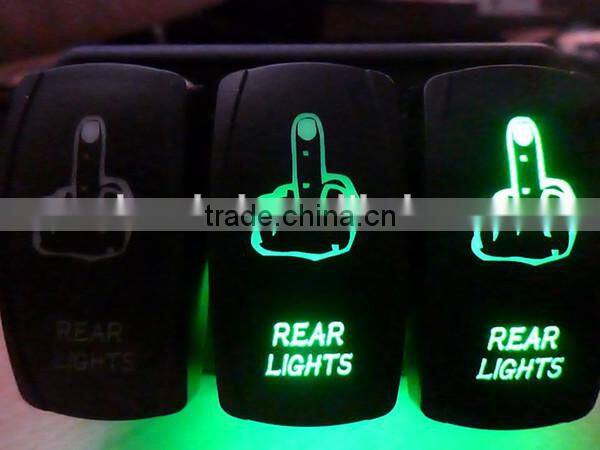

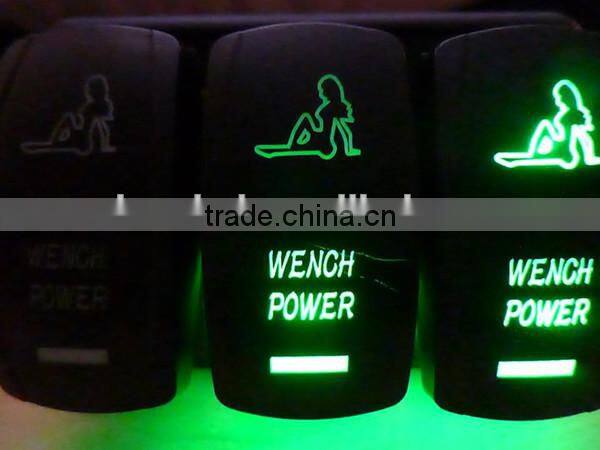

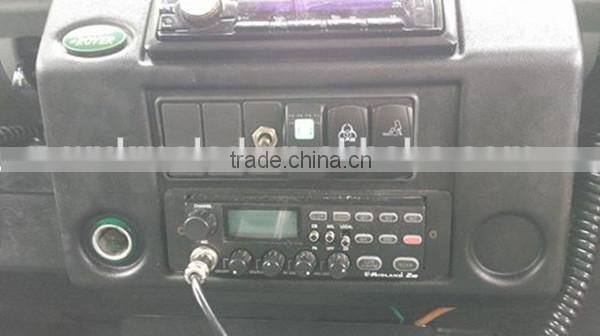

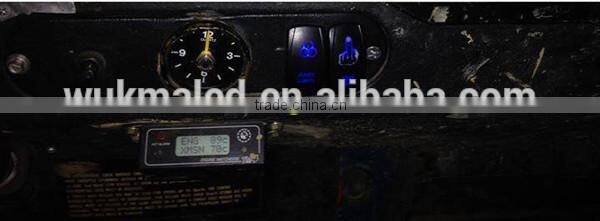

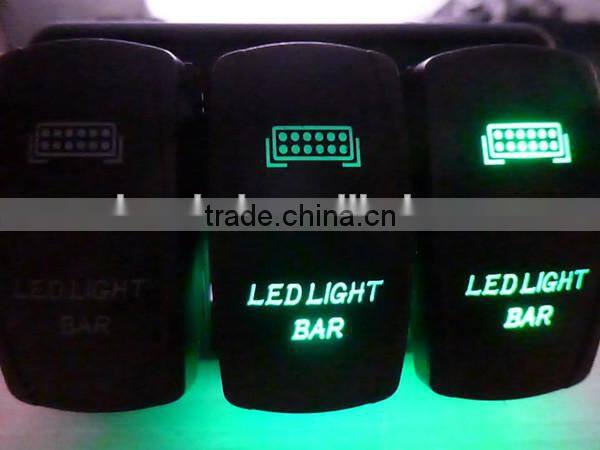

5.Switches effect
Notes: If you can't find what you want exactly, please contact us, let's disscuss it, we have many different style rocker switch, Also we can design it for you.
