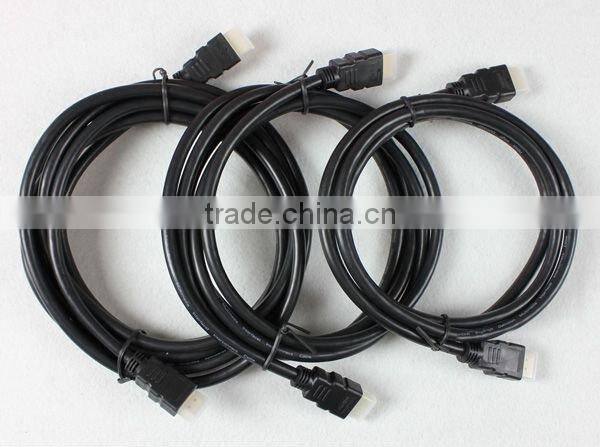

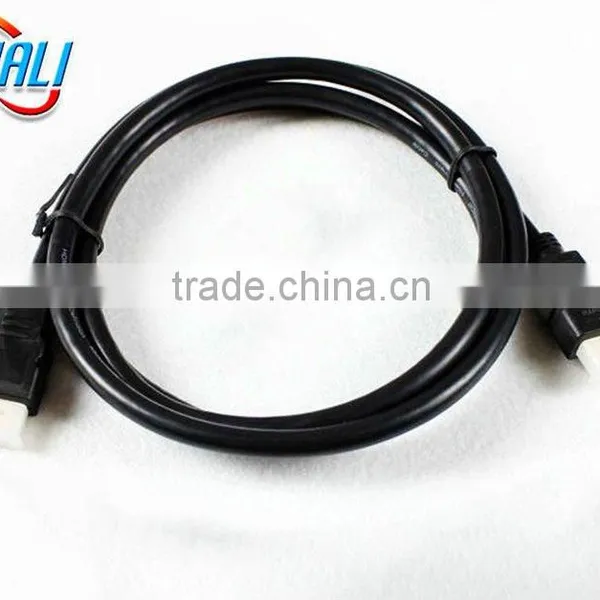

Help CenterHDMI PLUG to PLUG for HD Cctv Camera
Related Products
-
MINI HDMI Male to Male for HD Cctv CameraNegotiableMOQ: 1000 Pieces -
For PSP GO HDMI Cable 1.4 High Speed Signal TransferUS$ 5 - 7.5MOQ: 1000 Pieces
-
HDMI to HDMI Cable 1.4 Male-Male 19PINUS$ 0.6 - 7.5MOQ: 1000 Pieces
-
Mini Hdmi to Rca Cable 6ftNegotiableMOQ: 3000 Pieces
-
Ipod to Hdmi Cable Female to FemaleUS$ 0.6 - 7.2MOQ: 1000 Pieces
Specifications
1.High speed2.Version:1.3b/c,1.4a,1.4
3.24K Gold plated connectors
4.FCC,CE,ROHS,UL Compliance
5.Supports 1080P,
a) without Nylon jacket,b) with Nylon jacket,c) with ferrites;
Normal wire gauge:
a) 1.3 V: (30AWG*1P+D+Wings & AL Foil)*4C+30AWG*7C+AL Foil+D+Braid+PVC;
b) 1.4 V: (30AWG*1P+D+Wings & AL Foil)*5C+30AWG*4C+AL Foil+D+Braid+PVC;
Features:
1) Good quality & pretty competitive prices.Be used in many electronical devices which
contain DVD player,video game player(PS2,PS3 & X-BOX 360),home theater,HDTV etc;
2) 24K gold-plated connector ensure superior signal transfer and lifetime of maximum performance;
3) Inside conductor: 99.99% pure high quality oxgen-free copper;
a)1.3 V:4 screened twisted pairs of OFC stranded conductors with foam PE insulation layer;
b)1.4 V:5 screened twisted pairs of OFC stranded conductors with foam PE insulation layer;
For improving the high frequency response for wide-bandwidth and efficient signal transfer;
4) Each twisted pair and 1 ground wire are wrapped around by wings & AL Foil;
5) High density triple shielding for maximum rejection of EMI and RFI;
6) Compatible with multiple audio formats from stereo to multi-channel sound;
7) Transfer digital audio and video signals at warp speed of 10.2 gigabytes per second;
Electrical Characteristics:
1) Conductor resistance: AT 20 °C Max 28 AWG: 237.25 ohm/km;
2) Fext: <-26dB; 3) Impedance: 100±10ohm;
4) Attenuation: at 0.3~825MHz<8dB/5m,0.825~2.745GHz<21dB/5m,2.745~4.125GHz<30dB/5m;
7) Time delay skew: within a pair 151 ps Max/5m; 8) Between pair 151 ps Max/5m;
9) Version: HDMI1.3/1.4; 10) AWG: 26/28/30 (optional); 11) Plated: gold/nickel (optional
