FPV Race Drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX)

FPV Race Drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX) thumbnail-1
FPV Race Drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX) thumbnail-2
FPV Race Drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX) thumbnail-3
FPV Race Drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX) photo-1
FPV Race Drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX) photo-2
FPV Race Drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX) photo-3
US$ 49.00 - 49.00 MOQ: 10 Units
Key Specifications
Get Latest Price
Type:
Helicopter
Power:
Other, Power
Material:
Other, Metal
Contact Supplier Request Quote Chat Now
Shenzhen Shijie Wireless Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Helicopter
Power Other, Power
Material Other, Metal
Scale Other, 1:1
Radio Control Style RC Hobby
Place of Origin Guangdong, China
Brand Name shijie wireless
Model Number TS800
Product Description

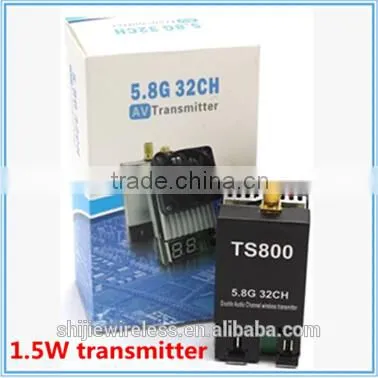

TS800 1500mw FPV 5.8G 1.5W 32CH Audio Video Transmitting (TX) Module Wireless Transmitter
Description:
- 2014 the latest 1.5W large power transmitter, the new design,make up a variety of shortage of the old products, long distance and could connect the AAT tracking antenna.
- 6.5 M and 6.0 M audio input channel,could connect all kinds of the AAT tracking antenna in the market.
- Integrated LED display system, intuitively display the transmission channel.
- Integrates the function of synchronous dial code, a key to change the frequency between ground and air. (ground receiving support required)
- Ultra wide voltage input, support 2-6 s power input directly.

Technical parameters:
- Module: TS800
- Transmission frequency point: 5.8 G
- Transmission channel: 32 channels
- Transmission power: 1500 mw
- Voltage input: 7-28v wide voltage input
- Reverse connect protection: yes
- Cooling system: cooling fans
- Working current: 800mA  12V
- Working temperature: - 10 to 85°C
- Audio system: 6.0/6.5
- ATT Connect: suppor
- Synchronous dial code: support (ground receiving support)
- Video bandwidth: 8m
- Weight: 50g
- Dimension: 54x32x26.5mm



Different connectors can be chose:

FPV race drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX)



FPV race drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX)FPV race drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX)



Factory View:

FPV race drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX)



Certifications:

FPV race drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX)FPV race drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX)



Shipment way:

FPV race drone TS800 5.8G 1500MW 1.5W 32CH Audio Video Module Wireless Transmitter (TX)
