Home > Toys > Remote Control Toys > RC Car > TS58500 Original Designer and Manufacturer 5.8GHz 500mW 40CH FPV Mini AV Transmission Transmitter 7 - 24V 10g
TS58500 Original Designer and Manufacturer 5.8GHz 500mW 40CH FPV Mini AV Transmission Transmitter 7 - 24V 10g
US$ 10 - 50
MOQ: 10 Units
Key Specifications
Get Latest Price
Type:
Helicopter
Power:
Other, Power
Material:
Other, Metal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Drone Ariplane TS5823 5.8G 200mW 40CH Updated FPV Mini Wireless AV Transmitter NTSC/PALUS$ 30.00 - 30.00MOQ: 10 Units -
TX-5D FPV 5.8Ghz 600mW NEW 40 Channel HDMI to AV CVBS Wireless TransmitterUS$ 65.00 - 65.00MOQ: 10 Units
-
TS58400 FPV Sender 5.8G 400mW 32CH Audio/Video AV Transmitter Tx With Race BandUS$ 35.00 - 35.00MOQ: 10 Units
-
TS5825 5.8G 25mW 32CH FPV Mini Video Tx Wireless Transmitter Module With CE CertificationUS$ 30.00 - 30.00MOQ: 10 Units
-
New Products T600 VTX & R600 VRX Combo With RaceBandUS$ 79.00 - 79.00MOQ: 10 Sets
Type
Helicopter
Power
Other, Power
Material
Other, Metal
Scale
Other, 1:1
Radio Control Style
RC Hobby
Place of Origin
Guangdong, China
Brand Name
shijie wireless
Model Number
TS58500
Product Description

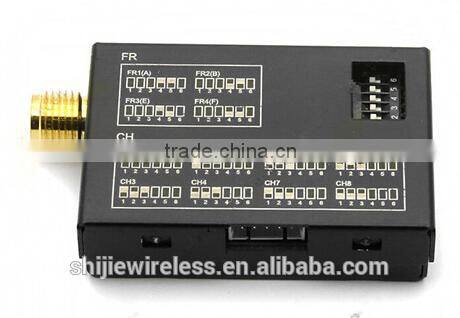

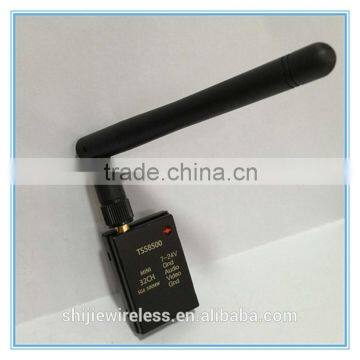

This TS58500 transmitter packs 500mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter! A must have for those looking to save size and weight while still getting good performance. The TS58500 is transmitting a full range of 40 channels and only weighs 19g. It’s perfect for a wide range of aircraft, especially smaller models and 350 size multi-rotors such as Quanum Nova, DJI Phantom, QR X350, Bix 3 and more! The Tx even comes with a direct GoPro to TX cable for Plug-N-Play connect ability, and of course the standard A/V cable.
Features:
Micro sized and light weight - perfect for use with small models.

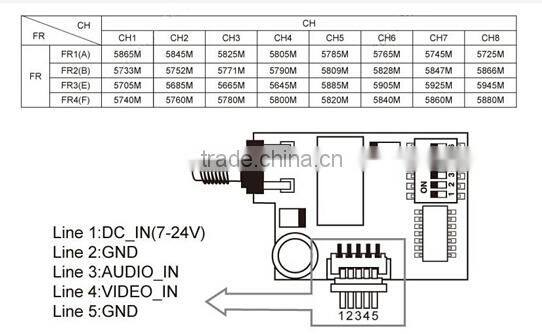

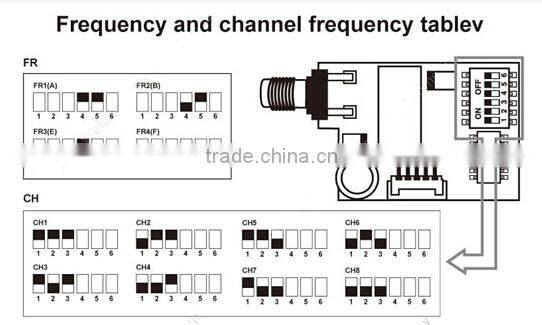

40 channels: Cover A, B, E bands and F bands, new add R band.
Transmitter frequency: 5645-5945MHz with 500mW power output.
Included GoPro plug and play cable.
Specifications:
Item Name: Transmitter Module
Item NO.: TS58500
Modulate: Wideband FM Modulate
Video Format: NTSC/PAL
Output Impedance: 50 Ohm
Output Power: 26-27dBm
Channel: New updated 40CH
Operating Voltage: 7V-24V
Supply Current: 220mA
Operating Temperature: -10~85?
Video Band Width: 0~8.0 MHz
Audio Carrier Frequency: 6.5 MHz
Video Input Level: 0.8~1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5~2.0 Vp-p
Audio Input Impedance: 10K Ohm
Antenna Connector: RP-SMA Male(Inner hole)
Dimension: 42mm * 23mm * 8mm
Package size: 9 * 5 * 2cm / 3.5 * 2 * 0.8in
Package weight: 44g / 1.6oz

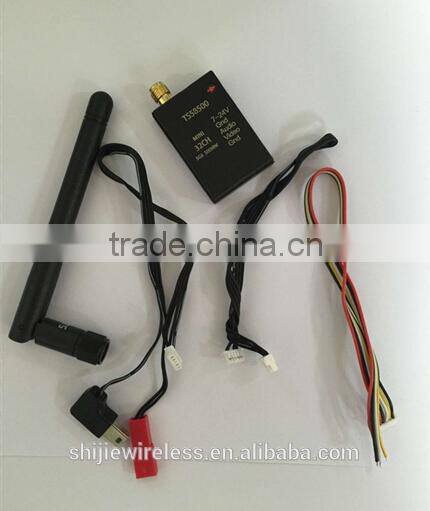

Package list:
1 * Skyzone Mini TS58500 5.8G 500mW 40CH AV Transmitter Module
1 * Gopro USB to A/V cable (for using GoPRO as A/V input)
1 * Standard wire lead
Features:
Micro sized and light weight - perfect for use with small models.
40 channels: Cover A, B, E bands and F bands, new add R band.
Transmitter frequency: 5645-5945MHz with 500mW power output.
Included GoPro plug and play cable.
Specifications:
Item Name: Transmitter Module
Item NO.: TS58500
Modulate: Wideband FM Modulate
Video Format: NTSC/PAL
Output Impedance: 50 Ohm
Output Power: 26-27dBm
Channel: New updated 40CH
Operating Voltage: 7V-24V
Supply Current: 220mA
Operating Temperature: -10~85?
Video Band Width: 0~8.0 MHz
Audio Carrier Frequency: 6.5 MHz
Video Input Level: 0.8~1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5~2.0 Vp-p
Audio Input Impedance: 10K Ohm
Antenna Connector: RP-SMA Male(Inner hole)
Dimension: 42mm * 23mm * 8mm
Package size: 9 * 5 * 2cm / 3.5 * 2 * 0.8in
Package weight: 44g / 1.6oz
Package list:
1 * Skyzone Mini TS58500 5.8G 500mW 40CH AV Transmitter Module
1 * Gopro USB to A/V cable (for using GoPRO as A/V input)
1 * Standard wire lead

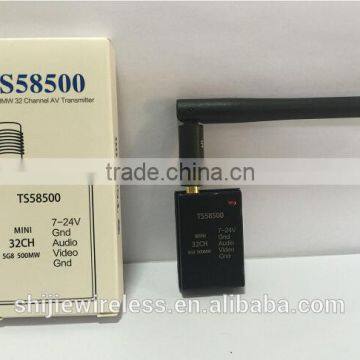

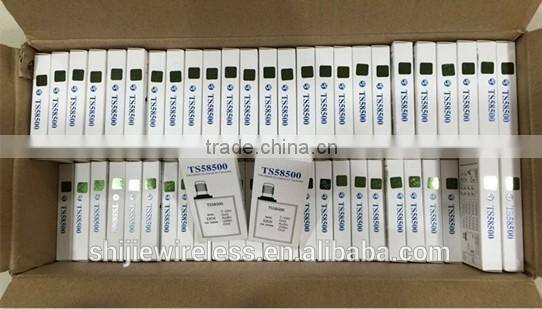

Batch Production:

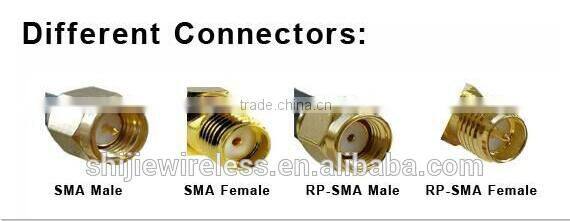

Different connectors can be chose:

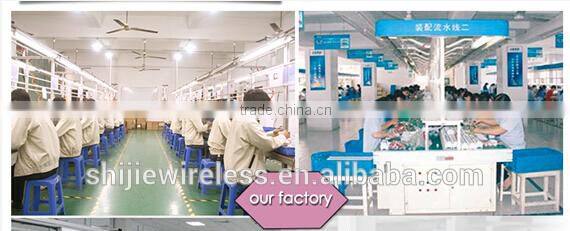

Factory View:
Certifications:
Shipment way:
